Gate Crafters Arched Vinyl/Wood Slat Single Gate Frame (VinylKit) - Please select a width


Please Select an Option:

Price:$271.00
Quantity:



Bookmark and Share
Live Chat
Chat with a live representative or Send us an email

1-800-537-4283







   Product Details
  • Product Description
  • Why Gate Crafters?
  • Options
  • Specifications
  • How to Order
  • Gate Installation

  •    Product Description Top of Page
    GateCrafters.com has created an easy DIY multi-sized arched vinyl/wood slat gate frame kit. Use the Gate Crafters Vinyl/Wood Single Gate Frame Kit to build a vinyl or wood single gate make your gate easy to automate, to replace an existing gate or match a desired look.

       Why get a GateCrafters.com Frame? Top of Page
    Through years of automation experience we have repeatedly heard one thing from our customers. The chain link, vinyl, wood or 3 rail gates found in local store and fencing suppliers are just not built for the rigors of automation. All of our gates are custom built to the exact customer's specifications (height and width), welded on all joints and are built with 6061-T6 aluminum: known for its strength and resilience. PLUS our gates all come with the necessary component of automation including horizontal supports matched to the mounting need of all common gate openers and ball bearing hinges, made to make your gate swing smoothly and freely through years of usage.

       Options Top of Page
    Size:

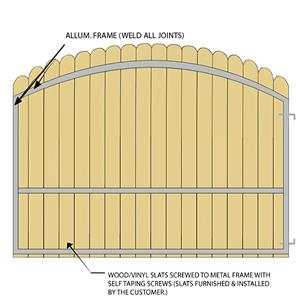

    Use this gate frame kit by attaching the vinyl or wood slats (vinyl/wood slats not included) to the 2" x 2" aluminum frame and aluminum intermediate frame stiffener, and for vinyl/wood gates longer than 8' will include a 1/4" x 3/4" flat bar diagonal bracing welded on to the framing for extra stability. This kit includes ball bearing hinges to attach the gate to your post (post not included) for your convenience.

    Automation:

    Automation is a breeze with the highly recommended Estate Swing line of gate automation. There are solar options in the E-S 1000H and E-S allegiant and non-solar 24VDC options in the E-S 500 and E-S 1600. In addition there are specialty operators such as the E-S 1100 for smaller gates and little clearance room for mounting. And the E-SC 1600 for column mounting. Our staff is more than happy to assist you in picking out the correct gate opener for your particular installation.

    Non-automated Gate Hardware:

    If you are not planning on automating your gate or automating it in the future but not immediately we have some great accessories for consideration. Available are inside/outside key locked handle latches, key locked drop rods, and alternate self closing hinges so you can push your gate open and it will remain open while past 90 degrees. Once the gate is nudged toward the closed position the hinges will take it the rest of the way. Another direction to go if automating in the future is the electric pedestrian gate lock kit. This can be set up to release the lock via keypad, intercom, push button or any other device. Once the lock is released the gate can be pushed open. What is great about this scenario is all the products from the pedestrian gate lock kit can be used in conjunction with the gate opener in the future.

    Posts:

    The post has the hinge barrels welded to it. The gate kit comes with hinge barrels and hinges.

    Hinge Plates:

    The hinge plates have the barrels already welded to a plate for easy mounting to an existing post or column.


       Specifications Top of Page
    Use this gate kit by attaching the vinyl/wood slats (slats not included) to the 2" x 2" aluminum frame and aluminum intermediate frame stiffener. It attaches on one side to allow a multitude of vinyl or wood sizes and styles. Ball bearing hinges are included in this kit to make attaching the gate to a post (post not included, post can be purchased with the hinges welded on to the post) a breeze.

    The links below are detailed drawings of the frame that you are purchasing:
    For 7' 11" long gates and under
    For 8' long gates and over

    Every gate is shipped with a can of self etching primer as a base coat for the frame and then can be painted any color needed. GateCrafters.com uses Marhide self-etching primer by Bondo. A self-etching primer is an essential undercoat layer of paint over aluminum. Primer kills stains, retards moisture and provides a good surface for a topcoat of paint to adhere to. It is imperative that new or bare metal and aluminum is primed prior to painting. Bondo is the producer of the top bare aluminum primers on the market.


       How to Order Top of Page
    There are two easy steps to ordering your gate frame kit.

    1. Download the order form and indicate the measurements. Sign the order form indicating you have approved the measurements.

    For 7' 11" long gates and under
    For 8' long gates and over

    Forms can be faxed to (813) 926-8460 or e-mailed to sales@gatecrafters.com

    2. Add the kit to your shopping cart along with any posts, automation equipment or other accessories you may like and checkout through our SSL Verisign secured website.

    We will then contact you via e-mail to let you know everything has been received and an approximate ship date.

    Click to Enlarge Pictures
    Detailed View Side View Side View Bottom View Wood/Vinyl Gate Frame
       Gate Installation Top of Page

  • Gate Installation Manual


    QB ID: VinylKitSingleArched
