Gate Opener Accessory Compatibilities
|
|
The Apollo Low Voltage Kit is compatible with:
- Apollo: 1500, 1600, 1550, 1650, 3500ETL, 3600ETL, 7000UL, 7500ETL, BA-12
|
|
|
|
|
GateCrafters.com KNOWS accessories. GateCrafters.com has been on the web selling gate openers and accessories for nearly a decade. We sold over 100,000 accessories from over 30 different manufacturers. Our compatibility recommendations are checked and field tested for accuracy.
|
|
|
|
|
|
Gate Opener Accessory Uses
|
|

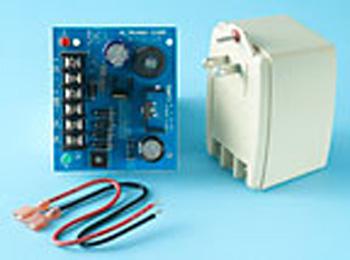

The Apollo Low Voltage Kit, Model LVK, is designed to maintain the battery for all residential and light commercial gate operators. The LVK gives you the option of running low voltage power from house to the operator (up to 1000') by simply using 18 AWG outdoor burial cable.
Specifications
INPUT
120VAC to transformer
16VAC to 28VAC to circuit board
2.5 AMP continuous current power supply to circuit board
OUTPUT
6VDC, 12VDC or 24VDC (12VDC used for Apollo applications) Thermal overload and short circuit protection
Filtered and electronically regulated output
BATTERY BACKUP
Built-in charger for sealed lead acid or gel type batteries
Maximum charge current 300mA
Battery short circuit protection (circuit breaker)
VISUAL INDICATORS
AC input and DC output LED indicators
Gate Opener Accessory Features
- Smart Design: Extremely compact design
- Long Distance Low Voltage: Eliminates need for 110VAC power to gate
|
|
|
|
|
|
GateCrafters.com has a unique perspective. GateCrafters.com has multiple factory trained technicians, great for diversity in thought when it comes to your gate opener system. We can listen to you about the needs for your property and recommend a wide range of options to get the job done inexpensively, correctly and effectively.
|
|
|
|
|
|
|
Gate Opener Accessory Instructions
|
Wiring to Specific Gate Openers:
|
|
|
|
|
|
GateCrafters.com has the resources you need. How do you use your gate opener system once you get it? GateCrafters.com is the only retailer to give a real answer to this question. We have develop videos for installing many of our gate openers and products and write DIY focused manuals for most gate openers and have individual instructions for each accessory to be installed with each gate opener.
|
|
|
|
|
|
|
