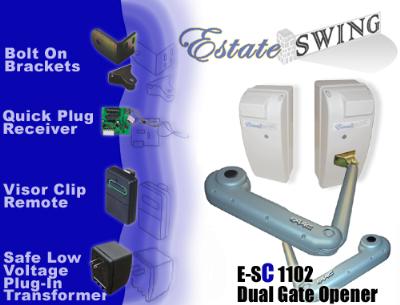

The Estate Swing E-SC 1102 is made for use on both large posts and columns.
- Gate Materials: Light Wood, Light Steel, Aluminum, Vinyl, Chain Link, and others.
- Weight and length: Up to 12' in length or 550 lbs
- Max degree of opening: 120 degrees
- Gate Post or Column size (pull to open): Max 16" x 16" post or gate mounted 8" from the rear face of a column.
- Push to Open: No
- Solar Compatible: Yes. View
solar panels (purchased separately).
- Power: Batteries (Included) and Low Voltage Trickle Charge (Included)
- Power Wire Specification: 16 gauge wire (purchased separately). Length is determined by distance between transformer power supply and the control box.
- Operating Temperature: -4 to 131 F
- On Special:Save $250 on Estate Swing communication products when you purchase an Estate Swing gate opener!
Purchase this Estate Swing gate opener and an Estate Swing wireless color video intercom or GSM intercom and receive half off the communication accessory, a $250 savings.
|
Select Your Frequency
GateCrafters.com is now offering the Estate Swing series in either 318Mhz frequency or 433Mhz long range frequency. Select your option in the drop down menu above. Note: selection of 433Mhz means that all accessories must by wired in. However, 433Mhz increases the range of your transmitter by at least 80' feet!
|
|
|
|
|
GateCrafters.com offers more expert assistance than anyone. If you need help deciding if this gate opener has the abilities that are right for your gate we have live application specialists available 9am - 9 pm EST 7 days a week or try our exclusive gate opener recommendation tool 24 hours/day.
|
|
|
|
|
|
Estate Swing gate openers are designed to be easy to install for the average handyman. Every unit comes standard with everything needed to automate your gate, including most hardware. One of the biggest advantages of the ES-1102 is its adjustable post mounting brackets, which are specially designed to match with almost any sized post with ease. Also included is Estate Swings unique user directed instruction manual. Estate Swing, being closely involved with their customers, they have created the first user driven updateable manual for continuous improvement of installation ease, maintenance and trouble shooting updates. Gate Crafters also brings DIY projects to a new level of simplicity with our 7-day/week technical support and 24/7/365 scheduled installation support.
All Estate Swings are built to the highest standards world wide. Each unit is put through rigorous quality control testing on each component, which are all made and assembled in one factory. The manufacturer is the largest (number one in sales and reputation) in the WORLD and meets or exceeds ISO 9000 regulations, which requires testing on 100% of the products being produced. The Estate Swing E-SC 1102 exceeds UL325 standards for anti-crushing safety.
The Estate Swing E-SC 1102 Dual Opener is a low voltage system, eliminating the need to run 110 AC to your gate. Simply run 16-gauge low voltage to a household outlet within 1000' of the operator. The Estate Swing E-SC 1102 is designed to be one of the safest gate openers available, perfect for families or individuals concerned with safety.
The Estate Swing E-SC 1102 Dual Opener has features never before seen or new to economically priced openers.
About the Featherlite Series
The Featherlite Series "Floats like a feather, works like a champ." Designed for lightweight gates (such as vinyl) that requires automation without the force of a high-powered opener. Special built-in settings work with the gate to promote ease of opening and closing.
|
|
|
|
|
|
GateCrafters.com is the DIY factor. GateCrafters.com further adds to most of our gate openers for easier DIY installation. We have developed exclusive components (example: easy adjustable mounting brackets), customized instructions, and offer a full spectrum of accessories to truly cover all aspects of the installation of your gate opener. In addition we have the largest staff of factory trained technicians in the US.
|
|
|
|
|
|
- Column and Large Post Mounting The E-SC 1102 can be used on gate mounted up to 8" from the back of the post or column. Most operators must have the gate mounted closer to the back of the post or column in order to get correct leverage. This is done with the E-SC 1102 by utilizing the traditional articulating operator design in a compact streamlined arm.
- No Positive Stops needed The E-SC 1102 will stop in the closed position without the use of positive stops (physical stopping points in the driveway for the gate to hit) unlike most other gate openers in this price range.
- Opening/Closing Soft Stop Opening/Closing Soft Stop is a feature in which the control board, during the easy set up process, learns where your opening and closing points are for the swing of the gate. Then during normal operation the gate operator automatically slows the motion of the gate to smoothly meet with the gates destination point.
- Advanced Gear System - The gear system is one of the most important parts of a gate opener; it influences power, control, reliability, and the life span of the motor. The E-SC 1102 uses a planetary gear system cutting down on bearing wear and motor deterioration.
- All Weather Compatible - This arm can handle the cold, heat and everything in between. The arm has no exposed shafts that can become iced over. The housing is a durable powder-coated die cast aluminum body, which gives it greater stability and strength.
- Highest Level of Safety The Estate Swing E-SC 1102 automatically reverses directions when it comes in contact with an obstruction. The Estate Swing E-SC 1102 also has the safest method of controlling safety devices. All safety devices are set up on a Normally Closed circuit. Some gate openers are set up on a normally open circuit. What this means is that the Estate Swing E-SC 1102 is virtually fail-safe. If a safety device does not activate for any reason the Estate Swing E-SC 1102 will not operate, keeping your loved ones and assets safe. Gate Openers with safety devices set up on a Normally Open connection will operate with the disabled safety device and the consumer will not know the safety device is inactive until it is too late!
- Quick, Safe and Secure Manual Release Every unit comes with a key chain ready manual release key. In the rare case power has failed and the back up battery is not charged, the manual release key can be used to safely open your gate without damaging your opener arm or disconnecting anything from your gate.
- Preset Gate Function Logics At the touch of a button you can change multiple settings on your gate opener to be focused towards safety, convenience, etc.
- Adjustable Performance Features Adjust the performance of your gate opener to fit your tastes, lifestyle and needs. You can adjust Pause Times, Opening/Closing Delays, Static Force and Speed.
- 12 Volt Output Terminals Convenient for accessories requiring power. i.e. locks, sensors, etc.
- Control Board, Easy Read Diagnostics To save you time and trouble, FAAC has included a LED light diagnostic on the control board. This lets you know if connections are or are not made to quickly diagnose problems and efficiently fix them to resume normal gate operation.
- Quick Plug Radio Receiver - The easiest receiver to use on the market. There are no wires to run, simply set your dip switch combination and plug it into the board.
|
|
|
|
|
|
GateCrafters.com has the resources you need. How do you use your gate opener system once you get it? GateCrafters.com is the only retailer to give a real answer to this question. We have develop videos for installing many of our gate openers and products and write DIY focused manuals for most gate openers and have individual instructions for each accessory to be installed with each gate opener.
|
|
|
|
|
|
|
- 2) Control Boxes
- 2) Operator Arms with power cables
- 2) Control Boards
- 2) 7 A/h 12V Battery
- Manual Release Key
- Low Voltage Transformer
- Bolt On Brackets
|
- 433Mhz or 318Mhz Receiver
- 433Mhz or 318Mhz Transmitter
- Mounting Hardware
- Instruction Manual, Public Warning Sign, Quick Check color wiring diagram and setback cutout
|
|
|
Gate Crafters.com Exclusive Product & DIY Additions
|
Top of Page
|
|
Additional Transmitter
Free 24/7/365 Installation Support
Limited 5 year mechanical warranty on ALL Estate Swing openers.
Limited 1 year electrical warranty
Free 7 day/week Technical Support
Largest Number of Certified Techs in America
Free assistance to find the right gate opener for your gate
Free systems design assistance to match the right accessories to fit your needs.
Extremely competitive pricing
Free shipping on all accessories purchased with a gate opener
We stock all replacement parts
Many brands of many types of accessories, enough to handle just about any operational situation you can imagine
|
|
|
|
|
|
GateCrafters.com has actual experience. We have a testing area, we have factory and internal training courses, we build gates and have our own gates that are automated, we attended all industry trade shows in multiple countries and are a member of the AFA, and we pay visits to our chosen manufacturers' factories. All these factors are what have lead to us having so many exclusive additions. When you see and actually use as many products as we have you tend to have many ideas for minor changes that have major impacts. We acted on these ideas and have utilized them to help thousands of customers automate their gates.
|
|
|
|
|
|
|
|
The following tools and supplies are suggested in the manufacturer抯 manual for optimal installation. They are not provided by GateCrafters, however, most tools are available at local hardware stores for purchase or rental.
- Power Drill
- Crescent Wrench
- 5/16" Drill Bit
- Drill Bit appropriate to the anchoring hardware used
- Flat Head Mini Screwdriver
- Phillips Head Screwdriver
- Tape Measure
- Level
- Wire Strippers
- C-Clamps
- Carpenters Clamp
Depending on the type of gate, power supply and contributing environmental factors additional tools or supplies may be needed. Please review the product manual associated this gate opener model for further details.
|
|
Words from Senior Application Engineer, Anthony Gaeto
|
Top of Page
|
"The Estate Swing is made by the largest gate opener manufacturer in the world that is known for their unrelenting commitment to quality. They have now teamed up with us, the largest gate opener retailer, to release the latest of in their accomplished line of gate openers; the Estate Swing line of openers. The Estate Swing E-SC 1102 is designed with the residential do-it-yourselfer in mind. It has amazing features that can't be found on any other opener on the market.
The Estate Swing E-SC 1102 dual gate opener is designed for gates ranging from 12 feet in length or 550 lbs per leaf. This sliding scale rating easily accommodates most residential gates. The one exception to the approved weight and length ratings are solid gate. Because this gate opener is much safer than others, solid gate provide too much resistance and should not be used with this opener. This opener has a unique mechanical design that is practically fail-safe. Mechanical failures, such as dislocated or broken limit switches, are the most common difficulty with gate openers. The Estate Swing E-SC 1102 has brought the number of mechanical parts to a minimum, including eliminating limit switches all together, to create a system that vastly more reliable. The Estate Swing E-SC 1102 utilizes a smart control board to run the commands mechanical parts of other systems run.
Opening/Closing Soft Stop is a new feature in gate openers. This means that the gate opener remembers the limits of the opening and closing cycles, and slows the momentum of the gate to gently reach its stopping point. Before the Opening/Closing Soft Stop feature was only found on openers that cost over a thousand dollars. The Estate Swing E-SC 1102 is the most affordable gate opener on the market with this feature.
The "C" in E-SC 1102 stands for column mount. Columns and large posts are always difficult to mount on because of the setback most openers require. This opener uses the articulating design of the old pad-mounted openers may people have seen for years. The only difference is this opener fit everything, gears, motor, arm and all into one sleek housing. The E-SC 1102 can be mounted on columns or posts with the gates mounted up to 8' from the back of the column. This means from the center of the hinges of the gate, the measurement to the back of the post or column can be up to 8' in length. The opener will then be mounted on the back of the post or column.
Another big plus is this gate opener does not need positive stops. Positive stops are needed on most of the lower cost openers. With dual setups, positive stops are hard to achieve because for them to truly stop the momentum of the gate and the force of the opener combined they have to be out in the center of the driveway. The E-SC 1102 arm locks out in the closed position and can't close any further, thus creating its own positive stop. Safety is always a top concern with FAAC. They have designed their system to be the safest in the world. We at GateCrafters.com always recommend having external safety devices such as photo sensors installed on your opener to prevent damage or injury. The Estate Swing E-SC 1102, first, has an auto-reverse feature built in. Even if you do not decide to install any external safety devices, the Estate Swing E-SC 1102 will automatically reverse directions if it comes in contact with an obstruction. The top safety feature is how safety devices are wired on the Estate Swing E-SC 1102. Other gate openers have a flawed system; they are hooked up on a normally open circuit, which means if your safety device is not functioning properly it will not stop the movement of your gate. This can lead to disastrous results. The Estate Swing E-SC 1102 works on normally closed connections for safety devices. In most cases, if the safety device is not functioning properly, the normally closed connection will be open, the same as when there is a breach of the safety device, and the gate will not move.
As if all the previously mentioned features aren't impressive enough, the Estate Swing E-SC 1102 also has a state of the art diagnostic system. After set up you can check out your diagnostics lights to be sure accessories are connected correctly. The lights quickly tell you if a connection is made or not made in the accessory terminals. This will save all users time from having to guess what is preventing proper operation and prevent users from testing and reconnecting terminals that were connected properly to begin with.
GateCrafters.com was selected as a Estate Swing partner because our profound commitment to customer service. Every member of our technical support staff has had direct training from the manufacturer. We are available 7 days a week for support, even during holidays, from 9 A.M to 9 P.M. Eastern time. Also we will make ourselves available to you after hours upon request for installation questions absolutely free. I believe every customer will find the support they need at GateCrafters.com and that is what has lead us to be the number one seller of gate openers in the world.
I stand behind the values of GateCrafters.com and would like to invite you to give us a try. You will find the service, knowledge and enthusiasm can't be beat; and the price will amaze you as well."
|
|
As part of one of GateCrafters.com's constant quality checks and knowledge updates. I personally go to Italy annually to visit the factories in which Estate Swing products are made. One of my goals is to see what exactly is being done to meet the high standards of the ISO 9000 ratings. What I have found is every part that is assembled is put through a computer-guided test. Some tests for example are to be sure the electrical side of the part has the correct amount of resistance; another to test the motion vibrations of moving parts, a third is the overall longevity of the part. The computer then rejects or accepts the part. Another test done at the factory is running samples of the openers at 50% duty cycle for the entire life of the warranty at its rated capacities to ensure reliability.
|
