A specialized gate opener made for easy under-gate mounting, this uses the same control board as our most popular unit. Along with a virtually invisible setup it comes with an oversized powerful motor, optional up to 180 degree opening gear mountings and constant duty operation (professional installation recommended).
- Gate Materials: Wood, Steel, Aluminum, Vinyl, Chain Link, and others.
- Weight and length: Up to 12' in length or 1100 lbs
- Gate Post or Column size (pull to open): Unlimited, positioning requires 2 3/4" clearance from face of post or column to center of hinge and 2 1/2" of clearance from bottom of the gate to the ground.
- Push to Open: Yes, same requirements as pull to open
- Solar Compatible: No, must be within 200' of outlet
- Power: Low Voltage Transformer (included) and Backup Batteries (Optional, not included)
- Power Wire Specification:
Distance between transformer and control board:
0-15' - 16 Gauge
16-24' - 14 Gauge
25-39- 12 Gauge
40-62' - 10 Gauge
- On Special:Save $250 on Estate Swing communication products when you purchase an Estate Swing gate opener!
Purchase this Estate Swing gate opener and an Estate Swing wireless color video intercom or GSM intercom and receive half off the communication accessory, a $250 savings.
|
Select Your Frequency
GateCrafters.com is now offering the Estate Swing series in either 318Mhz frequency or 433Mhz long range frequency. Select your option in the drop down menu above. Note: selection of 433Mhz means that all accessories must by wired in. However, 433Mhz increases the range of your transmitter by at least 80' feet!
|
|
|
|
|
GateCrafters.com offers more expert assistance than anyone. If you need help deciding if this gate opener has the abilities that are right for your gate we have live application specialists available 9am - 9 pm EST 7 days a week or try our exclusive gate opener recommendation tool 24 hours/day.
|
|
|
|
|
|
The Estate Swing E-SU 2202 is a unique gate opener designed to be the premier estate luxury. Use the E-SU 2202 in a residential situation of up to 4 homes enclosed by gates.
This is the only in the line of Estate Swing gate openers that we do recommend being installed by a professional only. The E-SU 2202 is a completely underground unit, allowing the highest level of residential landscape design. An attractive stainless steel cover is the only part visible from above ground. The contentment and visual appeal an underground gate opener creates is unsurpassed in the industry. Included for your installer is Estate Swing's unique user directed instruction manual. Estate Swing, being closely involved with professionals and homeowners alike, they have created the first user driven updateable manual for continuous improvement of installation ease, maintenance and trouble shooting updates. Gate Crafters also brings projects to a new level of simplicity with our 7-day/week technical support and 24/7/365 scheduled installation support.
All Estate Swings are built to the highest standards world wide. Each unit is put through rigorous quality control testing on each component, which are all made and assembled in one factory. The manufacturer is the largest (number one in sales and reputation) in the WORLD and meets or exceeds ISO 9000 regulations, which requires testing on 100% of the products being produced. The Estate Swing E-SU 2202 is certified for and exceeds UL325 standards for anti-crushing safety.
The Estate Swing E-SU 2202 Dual Opener is a low voltage system, eliminating the need to run 110 AC to your gate. Simply run low voltage wire to a household outlet within 200' of the operator. The E-SU 2202 is a constant duty opener, unique to low voltage units. The opener runs directly off of the supplied 24V power and the batteries are purely backup for occasions when power is temporarily not available. It versatile, with the ability to open a gate up to 180 degrees in towards the property or out towards the street! The Estate Swing E-SU 2202 is designed to be one of the safest gate openers available, perfect for families or individuals concerned with safety.
The Estate Swing E-SU 2202 Dual Opener has features never before seen or new to economically priced openers.
About the HomePro Series
The HomePro Series offers "Gate openers built to professional standards." The openers are capable of automating heavier
gates with a constant duty, low voltage design and versatile mounting options.
|
|
|
|
|
|
GateCrafters.com is the DIY factor. GateCrafters.com further adds to most of our gate openers for easier DIY installation. We have developed exclusive components (example: easy adjustable mounting brackets), customized instructions, and offer a full spectrum of accessories to truly cover all aspects of the installation of your gate opener. In addition we have the largest staff of factory trained technicians in the US.
|
|
|
|
|
|
- Opening/Closing Soft Stop Opening/Closing Soft Stop is a feature in which the control board, during the easy set up process, learns where your opening and closing points are for the swing of the gate. Then during normal operation the gate operator automatically slows the motion of the gate to smoothly meet with the gates destination point.
- Large 24V Motor - The motor of the E-SU 2202 is one of the largest found on any residential gate opener. It is well equipped to handle gates up to 1100 lbs, more weight then found in many heavily ornamented wrought iron gates.
- No Required Setback - Most gate operators mount to the post which then has a required setback for the rear pivot point on the post. This pivot point set back many times makes it difficult to mount on certain posts and columns or on posts that are against columns or walls. The E-SU 2202 is set beneath the gate, making it possible to automate gates with limited space for mounting a linear arm or an articulating arm.
- Advanced Gear System - The gear system is one of the most important parts of a gate opener; it influences power, control, reliability, and the life span of the motor. The E-SU 2202 uses an advanced gear system cutting down on bearing wear and motor deterioration.
- All Weather Compatible - This arm can handle the cold, heat and everything in between. Protected by a stainless steel cover, the E-SU 2202 motor and gears are well protected. The housing is equipped ready for easy draining.
- One Touch EZ Programming The Estate Swing E-SU 2202 can be programmed by simply pressing one button. The control board is built to be inherently intelligent and learns the open and closing limits automatically. There are no manual adjustments to be made!
- Highest Level of Safety The Estate Swing E-SU 2202 automatically reverses directions when it comes in contact with an obstruction. The Estate Swing E-SU 2202 also has the safest method of controlling safety devices. All safety devices are set up on a Normally Closed circuit. Some gate openers are set up on a normally open circuit. What this means is that the Estate Swing E-SU 2202 is virtually fail-safe. If a safety device does not activate for any reason the Estate Swing E-SU 2202 will not operate, keeping your loved ones and assets safe. Gate openers with safety devices set up on a Normally Open connection will operate with the disabled safety device and the consumer will not know the safety device is inactive until it is too late!
- Quick, Safe and Secure Manual Release Every unit comes with a key chain ready manual release key. In the rare case power has failed and the back up battery is not charged, the manual release key can be used to safely open your gate without damaging your opener arm or disconnecting anything from your gate.
- Preset Gate Function Logics At the touch of a button you can change multiple settings on your gate opener to be focused towards safety, convenience, etc.
- Adjustable Performance Features Adjust the performance of your gate opener to fit your tastes, lifestyle and needs. You can adjust Pause Times, Opening/Closing Delays, Static Force and much more.
- 12 Volt Output Terminals Convenient for accessories requiring power. i.e. locks, sensors, etc.
- 180 Degree Opening Capability - No other gate opener can swing your gate a full 180 degrees. Please note this requires additional brackets, as does 140 degrees. the standard brackets are for up to 110 degrees. We also have internal positive stop brackets available and they are highly recommended for a seamless installation.
- Control Board, Easy Read Diagnostics To save you time and trouble, FAAC has included a LED light diagnostic on the control board. This lets you know if connections are or are not made to quickly diagnose problems and efficiently fix them to resume normal gate operation.
- Quick Plug Radio Receiver - The easiest receiver to use on the market. There are no wires to run, simply set your dip switch combination and plug it into the board.
|
|
|
|
|
|
GateCrafters.com has the resources you need. How do you use your gate opener system once you get it? GateCrafters.com is the only retailer to give a real answer to this question. We have develop videos for installing many of our gate openers and products and write DIY focused manuals for most gate openers and have individual instructions for each accessory to be installed with each gate opener.
|
|
|
|
|
|
|

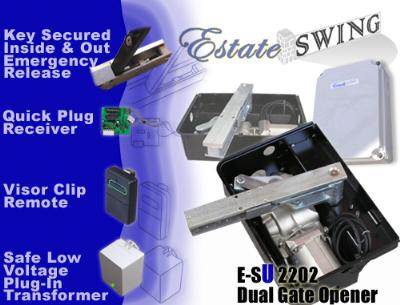

- Control Box
- 2) Foundation Boxes
- 2) Motors with power cables
- Control Board
- Manual Release Key
- Low Voltage Transformer
|
- 433Mhz or 318Mhz Receiver
- 433Mhz or 318Mhz Transmitter
- Instruction Manual, Public Warning Sign, Quick Check color wiring diagram and setback cutout
|
Graphics from Manual
|
|
Gate Crafters.com Exclusive Product & DIY Additions
|
Top of Page
|
|
Additional Transmitter
Free 24/7/365 Installation Support
Limited 5 year mechanical warrantee on ALL Estate Swing openers.
Limited 1 year electrical warranty
Free 7 day/week Technical Support
Largest Number of Certified Techs in America
Free assistance to find the right gate opener for your gate
Free systems design assistance to match the right accessories to fit your needs.
Extremely competitive pricing
Free shipping on all accessories purchased with a gate opener
We stock all replacement parts
Many brands of many types of accessories, enough to handle just about any operational situation you can imagine
|
|
|
|
|
|
GateCrafters.com has actual experience. We have a testing area, we have factory and internal training courses, we build gates and have our own gates that are automated, we attended all industry trade shows in multiple countries and are a member of the AFA, and we pay visits to our chosen manufacturers' factories. All these factors are what have lead to us having so many exclusive additions. When you see and actually use as many products as we have you tend to have many ideas for minor changes that have major impacts. We acted on these ideas and have utilized them to help thousands of customers automate their gates.
|
|
|
|
|
|
|
|
The following tools and supplies are suggested in the manufacturer's manual for optimal installation. They are not provided by GateCrafters, however, most tools are available at local hardware stores for purchase or rental.
- Please refer to manual for tools needed
Depending on the type of gate, power supply and contributing environmental factors additional tools or supplies may be needed. Please review the product manual associated with this gate opener model for further details.
|
|
Words from Senior Application Engineer, Anthony Gaeto
|
Top of Page
|
"The Estate Swing is made by the largest gate opener manufacturer in the world that known for their unrelenting commitment to quality. They have now teamed up with us, the largest gate opener retailer, to release the latest of in their accomplished line of gate openers; the Estate Swing line of openers. The Estate Swing E-SU 2202 is a revolutionary opener that is set up completely underground. It has amazing features that can't be found on any other opener on the market.
The Estate Swing E-SU 2202 dual gate opener is designed for gates from 12 feet in length or 1100 lbs. The operator is a unique underground unit. The unit attaches to the gate via a small arm protruding from the ground to the bottom of the gate. The rest of the unit is completely out of site. If style and grace is just as important to your property as functionality, this gate operator is the way to go. The Estate Swing E-SU 2202 utilizes a smart control board to run the commands mechanical parts of other systems run.
Opening/Closing Soft Stop is a new feature in gate openers. This means that the gate opener remembers the limits of the opening and closing cycles, and slows the momentum of the gate to gently reach its stopping point.
The Estate Swing E-SU 2202 also features one touch easy programming, cutting your installation set up time in half. Once the gate opener is mounted and your variables, to learn how far your gate opens and closes, all you have to do is press one button and that's it. It's a great way to gear your opener to be more safety conscience or convenient.
Safety is always a top concern with FAAC. They have designed their system to be the safest in the world. We at GateCrafters.com always recommend having external safety devices such as photo sensors installed on your opener to prevent damage or injury. The Estate Swing E-SU 2202, first, has an auto-reverse feature built in. Even if you do not decide to install any external safety devices, the Estate Swing E-SU 2200 will automatically reverse directions if it comes in contact with an obstruction. The top safety feature is how safety devices are wired on the Estate Swing E-SU 2202. Other gate openers have a flawed system; they are hooked up on a normally open circuit, which means if your safety device is not functioning properly it will not stop the movement of your gate. This can lead to disastrous results. The Estate Swing E-SU 2202 works on normally closed connections for safety devices. In most cases, if the safety device is not functioning properly, the normally closed connection will be open, the same as when there is a breach of the safety device, and the gate will not move.
As if all the previously mentioned features aren't impressive enough, the Estate Swing E-SU 2202 also has a state of the art diagnostic system. After set up you can check out your diagnostics lights to be sure accessories are connected correctly. The lights quickly tell you if a connection is made or not made in the accessory terminals. This will save all users time from having to guess what is preventing proper operation and prevent users from testing and reconnecting terminals that were connected properly to begin with.
GateCrafters.com was selected as a Estate Swing partner because our profound commitment to customer service. Every member of our technical support staff has had direct training from the manufacturer. We are available 7 days a week for support, even during holidays, from 9 A.M to 9 P.M. Eastern time. Also we will make ourselves available to you after hours upon request for installation questions absolutely free. I believe every customer will find the support they need at GateCrafters.com and that is what has lead us to be the number one seller of gate openers in the world.
I stand behind the values of GateCrafters.com and would like to invite you to give us a try. You will find the service, knowledge and enthusiasm can't be beat; and the price will amaze you as well."
|
|
As part of one of GateCrafters.com's constant quality checks and knowledge updates. I personally go to Italy annually to visit the factories in which Estate Swing products are made. One of my goals is to see what exactly is being done to meet the high standards of the ISO 9000 ratings. What I have found is every part that is assembled is put through a computer-guided test. Some tests for example are to be sure the electrical side of the part has the correct amount of resistance; another to test the motion vibrations of moving parts, a third is the overall longevity of the part. The computer then rejects or accepts the part. Another test done at the factory is running samples of the openers at 50% duty cycle for the entire life of the warranty at its rated capacities to ensure reliability.
|
