• Gate Materials: Wood, Steel, Aluminum, Vinyl, Chain Link, and others.
• Weight and length: Up to 20' in length and 1000 lbs
• Gate Post or Column size (pull to open): Unlimited - Operator should be set up so drive shaft is 31.5" from centerline of hinge.
• Push to Open: No
• Solar Compatible: Yes, select your solar panel watt strength from the drop down menu above.
• Power: Battery (Not Included) and Low Voltage Trickle Charge (Included)

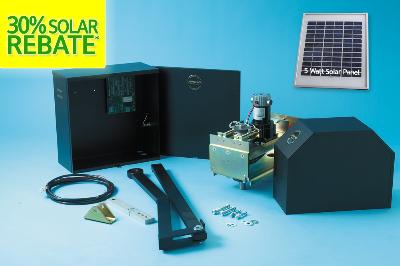

Apollo Gate Opener - 3500ETL Single Swing Gate Opener w/ Free DIY Kit w/ 5 Watt Solar Panel

GateCrafters.com exclusively provides the ONLY Apollo 3500 gate opener w/ a DIY kit. With the standard unit found with all other companies, you must provide a steel post and then weld a plate on top for mounting the motor. We provide a 5' long 4"x4" steel post, painted Rust-Oleum Black (for easy touch up matching) with the mounting plate pre-mounted on top - Saving you time, money and for many the trouble of finding a welder. The GateCrafters.com Do-It-Yourself kit makes this a completely bolt-on simple installation. And with all this we are still the lowest price on the web - you can't find a better value in gate openers than GateCrafters.com.

The operator has a new arm design that eliminates major pinch points. This operator is perfect for heavy duty commercial or residential continuous duty operation. The gate opener has a low profile and is post mounted as seen above in the Gate Crafters exclusive. The 3500 is ETL approved and utilizes the advanced 800 series control board.

The Apollo 3500ETL Single Gate Opener is a low voltage system, eliminating the need to run 110 AC to your gate. Simply connect a solar panel to help power your unit. With Apollo's generous sized NEMA 3R control box you can house a larger battery than most gate operating systems. A larger battery means more cycles during a time of power outages or low sunlight. A fully charged deep cycle marine battery will provide up to 300 cycles or an average of 30 days usage on a basic system before requiring a recharge (Battery is not included). Each cycle is a full open and close and takes approximately 15 seconds each direction.

• Weld On Brackets
• Operator arm
• Operator Body and Control Board
• Manual

The following tools and supplies are suggested in the manufacturer manual for optimal installation. They are not provided by GateCrafters, however, most tools are available at local hardware stores for purchase or rental.

• Please refer to manual for Tools Needed.

The 3500ETL Single Gate Opener is designed for home, ranch, or light commercial use. It is economically priced and built to last. Most home and ranch gates range between 100 and 300 pounds, which is well within the capabilities of the 3500 ETL Single Opener which can handle gates up to 20 feet and 1000 pounds. Apollo has really put some time and thought into making this arm durable and ready to take an environmental pounding. The arm is rust proof and self-lubricating and is teamed up with a sturdy NEMA 3R box for the control board and battery. NEMA 3R boxes are well known for being the ultimate in weather protection. They stand up to most anything nature can dish out; winds, sands, ice and snow are no match for a NEMA 3R box.

The real highlight of this opener is in its control board. It features Apollo's new 800 series control board. The 800 series is intelligent, easy to use and a leap above many other comparable control boards. First and foremost, it operates the arm to end all of the cycles, both opening and closing, softly. The control board remembers the stopping points during the set up phase of installation and then applies that memory to its regular operation; slowing your gates motion to gently meet its stopping points. Also among the many advantages of the 800 series board is the self-adjustment to natural factors. All UL 325 approved boards have an adjustable inherent obstruction sensor. The 800 board takes it further by self-learning what natural obstructions already exist. For example, if your gate is heavy but you want the obstruction sensor to be very sensitive to avoid damage or injury the 800 series board will automatically learn changes in the momentum caused by the weight of the gate and differentiate them from an actual obstacle.

GateCrafters.com is dedicated to getting the right gate opener for your gate. As more gate openers are being made economically feasible and easy to maintain, the selection is going to grow ever wider. That's where GateCrafters.com comes in. We have extensive amounts of educational material on our website to help you become an informed consumer. We also have our factory-trained representatives standing by to answer all your gate and gate opener questions. The combination of our customers passion for home improvement and GateCrafters.com's wealth of knowledge is a perfect match and cannot be duplicated."
