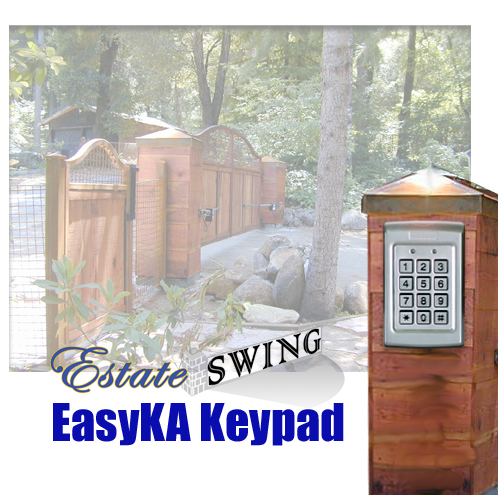

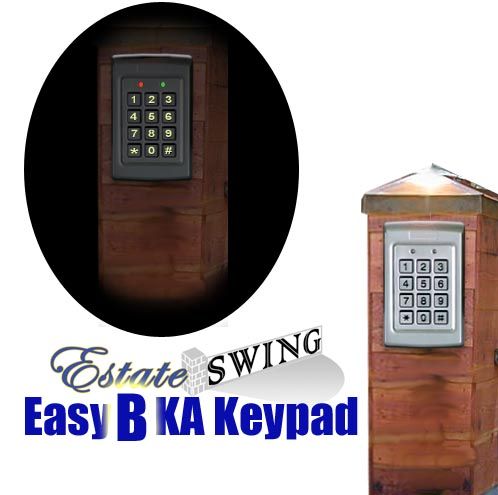

Estate Swing Stainless Steel Finish Surface Mount Keypad

Estate Swing: ES502, ES1602, ESU2200, ES300, ES1100, ESC1102, ESU2202, ES302, ES1102, ESC1600, ES500, ES1600, ESC1602, ES-L 450, E-SL 1200, E-SL 1800, E-SL 2000AC, E-SC1102 Carriage Door Opener, E-SC 352 Carriage Door Opener, E-SC1602 Carriage Door Opener.
Apollo: 1550, 3600, 1600, 1650, 3500, NT-H12ETLSingle, NT-H12ETLDual, 7000UL, 7500ETL, NT-T7 Single, NT-T7 Dual, NT-T5 Single, NT-T5 Dual, BA12
Mighty Mule: FM200, FM502, FM350, FM352, FM500
GTO: SW050, SW3000XL, SW052, SW3002XL, SW2000XL, SW4000XL, SW2002XL, SW4002XL, SL2000B, GP-SL050, GP-SL100, GP-SL052, SL-2002B, GP-SL102
Zareba: G550, G552, G750, G752
LiftMaster: LA-400, LA-412, LA-400-D, LA-412-D
Other: GateCrafters Pedestrian Gate Lock, Most other gate openers

Another great feature of this keypad is the different security levels and modes. Depending on what mode you set the keypad in, you can set up users to have different access grants. For example, a Normal user will not be able to enter during secure mode, while a master user and secure user can. But a secure user must have a primary and secondary code to get in. This level of security is new to a keypad of this price range. On the same security note, the back of the keypad is equipped with a tamper proof sensor. If someone was to remove the keypad from its post the sensor would be tripped and lock out the intruder. The Party mode feature allows for the keypad to hold a gate open using a separate code when multiple guests are expected.

Some other unique features are 12 or 24V operation, which allows it to be used with many different operators and a secure push button hookup; most push buttons wired to locks or gate openers don't have any options for altering how they operate, they simply close a connection. If you hook the push button up through this keypad, it will still work to open you gate but you also have some control about how and when the push button will function.

The Estate Swing EASY-KA can also be made to be time secure. Have your keypad active or inactive at the times of your choice without interruption of programming or power when used in conjuction with the 12V Digital timer (for 12V systems) or the 24V Digital timer (for 24V systems).

*comes with a short pigtail of color coded wire - majority of installations require additional wire the is at least 4 conductors (for basic operation only 4 conductors are needed, as additional features are used, like anti-tamper, etc. more conductors will be required) and at least 22 gauge.

Lastly this keypad has a built in heater, a feature not found very often (but possibly should be). The heater can be turned on and off and has relatively low energy consumption so it's still fine to run off most gate opener batteries or power outputs. It will allow your keypad to work without the risk of icing up when temperatures drop into the negatives.

Because of its wired operation this unit will work with the Estate Swing gate openers AND most other openers and may be used with many other security and access devices. The real highlight of this keypad are the features that are only found on keypads three times the price plus some unique features never before included.
