The Might Mule/GTO Automatic Exit Sensor is compatible with:
Estate Swing: ES502, ES1602, ESU2200, ES300, ES1100, ESC1102, ESU2202, ES302, ES1102, ESC1600, ES500, ES1600, ESC1602, ES-L 450, E-SL 1200, E-SL 1800, E-SL 2000AC, E-SC1102 Carriage Door Opener, E-SC 352 Carriage Door Opener, E-SC1602 Carriage Door Opener.
Apollo: 1550, 3600, 1600, 1650, 3500, NT-H12ETLSingle, NT-H12ETLDual, 7000UL, 7500ETL, NT-T7 Single, NT-T7 Dual, NT-T5 Single, NT-T5 Dual, BA12
Mighty Mule: FM200, FM502, FM350, FM352, FM500
GTO: SW050, SW3000XL, SW052, SW3002XL, SW2000XL, SW4000XL, SW2002XL, SW4002XL, SL2000B, GP-SL050, GP-SL100, GP-SL052, SL-2002B, GP-SL102
Zareba: G550, G552, G750, G752
LiftMaster: LA-400, LA-412, LA-400-D, LA-412-D
|
|
|
|
|
GateCrafters.com offers more expert assistance than anyone. We have live application specialists available 9am - 9 pm EST 7 days a week.
|
|
|
|
|
|

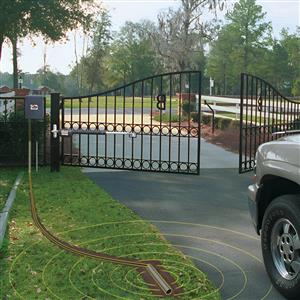

Automatically activates gate operators "hands-free" when a vehicle approaches. Designed for residential, agricultural, and commercial applications. Easy to install. Avoid the headaches associated with installing exit and entry loop detector systems, installs in 1/3 the time.

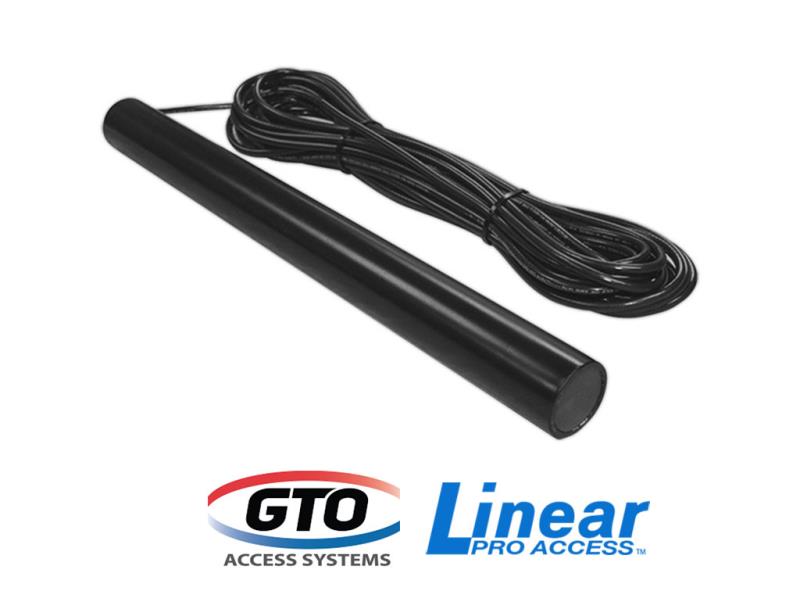

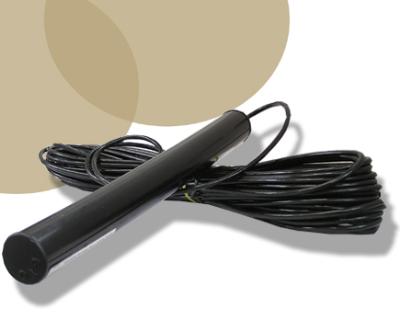

The exit wand is an electromagnetic sensor that detects metal mass in motion providing a 12 foot radius of detection that allows hands free exit from automatic gate operators. The sensitivity of the wand is adjustable for individual requirements.
The MightyMule/GTO Exit Wand has very low power consumption with a wide input voltage range that makes it ideal for battery applications. It is designed to reject line noise of 50 Hz or 60 Hz to improve its detection compatibilities near power lines.
|
|
|
|
|
|
GateCrafters.com is the DIY factor. GateCrafters.com further adds to most of our gate openers for easier DIY installation. We have developed exclusive components (example: easy adjustable mounting brackets), customized instructions, and offer a full spectrum of accessories to truly cover all aspects of the installation of your gate opener. In addition we have the largest staff of factory trained technicians in the US.
|
|
|
|
|
|
|
FM139 - 50' Lead Wire
FM140 -100' Lead Wire
FM141 - 150' Lead Wire
|
|
|
|
|
GateCrafters.com has actual experience. We have a testing area, we have factory and internal training courses, we build gates and have our own gates that are automated, we attended all industry trade shows in multiple countries and are a member of the AFA, and we pay visits to our chosen manufacturers' factories. All these factors are what have lead to us having so many exclusive additions. When you see and actually use as many products as we have you tend to have many ideas for minor changes that have major impacts. We acted on these ideas and have utilized them to help thousands of customers automate their gates.
|
|
|
|
|
|
|
Use this formula to calculate how far from the gate the loops should be place so that by the time a car reaches the gate, the gate will be completely open:
Exit Loop formula: x*(y*1.46)=z
x = time for gate to open in seconds.
y = Desired MPH to reach gate.
z = how far from gate.
FYI - 1.46 converts miles per hour to feet per second. We also recommend adding in 10 to 20 feet so the gate is fully open at comfortable distance
from the
gate.
For placement of a safety loop before and after the gate use the formula below. A safety loop is designed to stop the motion of the gate before the
car reaches
the gate. The distance below should give an ample amount of time for the gate to stop before hitting a vehicle:
Safety Formula: 4 feet before a closed gate and after an opened gate.
|
|
|
