Gate Crafters Estate Swing Exclusive DIY Kit Package Includes:
Receiver, (2) Remotes, Transformer, and Adjustable Bolt On Brackets
$187.88 Value!
|
Free Ground Shipping to Continental US on the Apollo 1650
|
The Apollo 1650 is a GateCrafters.com specialty. Only with the GateCrafters.com additions can this installer's
choice gate opener be installed in a bolt on application on any size post easily by the end user. This is the
Vehicular Opener of the Apollo linear operator pair.
- Gate Materials:Wood, Steel, Aluminum, Vinyl, Chain Link, and others.
- Weight and length: Up to 16' in length and 600 lbs (per leaf)
- Max degree of opening: 105 degrees
- Gate Post or Column size (pull to open): Max 8" x 8" post or gate mounted 6" from the rear face of a column.
- Push to Open: Yes - setback above does not apply to push to open.
- Solar Compatible: Yes, Browse our solar panels (purchased
separately).
- Power: Battery (Not Included) and Low Voltage Trickle Charge (Included)
- Power Wire Specification: 16
gauge wire (purchased separately) with 1,000 foot max length from transformer to control board.
- Operating Temperature: -20F to +150F
- Warranty:2-year manufacturer control board/ 2-year component manufacturer warranty.
- For this board to function a UL 325 photo eye safety device must also be attached to the board and used in the operator system.
(Click Here for Warranty Pros and Cons)
- Control Board: Comes standard with the 310
Mercury board or 1050 board. (See description for more details on board options)
|
|
|
|
|
GateCrafters.com offers more expert assistance than anyone. If you need help deciding if this gate opener has the
abilities that are right for your gate we have live application specialists available 9am - 9 pm EST 7 days a week or try
our exclusive gate opener recommendation tool 24 hours/day.
|
|
|
|
|
Additional features only available with the 1050 option
|
Top of Page
|
310 Mercury board is a standardized option that will come with this opener, the 1050 board is the alternative option.
310 Mercury Board - The 310 Mercury board ensures full UL 325 safety compliance, while also achieving powerful features and accurate configurations.

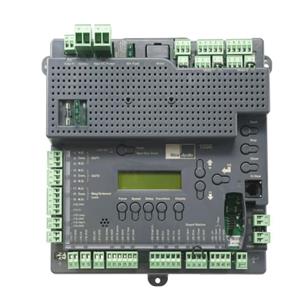

1050 Board - The 1050 Board can be customizable to your needs and is UL 325-16 compliant, which is necessary to be OSCA complaint. This board is compatible with monitored photo eyes, so that if the photo eye fails it will prevent the gate openers from failing.
See the list below for the additional features of the 1050 board:
- Board compatible with Nice Opera System (facilitates programming and diagnostic's away from the site of installation)
- LCD display and dedicated buttons
- Built-in voltmeter to check input voltage, battery voltage, solar panel volt age, motors' current
- Temperature sensor to optimize charging battery and system performance
- Programmable service alarm
- 2 Programmable timers (from 1 sec to 9 hours)
- 2 Programmable inputs (open, close, step, mid-position, hold to open, hold to close, activating timer)
|
Here at Gate Crafters we cater to our DIY customers. With every Apollo Gate Opener kit, you receive a Gate Crafters DIY install kit. This kit includes DIY friendly installation brackets that simply bolt to your posts or columns and to the pivot arm. Also included in the kit are (2) 433 mHz Transmitters and (1) 433 mHz receiver. Our experienced technical staff have been assisting our DIY customers for over a decade and has built up extensive knowledge about the installation and technical support for Apollo gate openers. Gate Crafter’s technical staff is standing by 7 days a week to assist you with your installation and technical help questions.
Today’s gate opener systems can be installed with simple household tools. These systems are designed to run on low voltage wiring which can be done by you without the need to hire an electrician. By installing your Apollo gate opener yourself, you will save $1000s of dollars over the life of your gate opener. You will have working knowledge of your gate opener installation and how the gate opener works. This will make it easier for you to troubleshoot your system and perform routine maintenance, if needed in the future.
|
|
|
|
|
GateCrafters.com offers more expert assistance than anyone. If you need help troubleshooting or installation support with your gate opener,we have live technical support specialists available 9am - 9 pm EST 7 days a week or try our exclusive gate opener recommendation tool 24 hours/day.
|
|
|
|
|
The Apollo 1650 is the intelligent version of the two Apollo linear actuators. Below you will find a feature comparison
of the two openers. Apollo is known as the premier solar gate opener because of its low power consumption and large
battery. The Apollo was designed for ranchers and is built in Texas. This opener gives you the freedom to set your
operating arm on the inside, outside, left side or right side of the gate operating in either pull or push to open; thus
giving you as much freedom as you need to have a gate opener that will work with the contours of your property.
The Apollo 1650 dual Gate Opener is a low voltage system, eliminating the need to run 110 AC to your gate. Simply run
14-gauge low voltage to a household outlet within 1000' of the operator (provided) or use a Gate Crafters solar panel
(sold separately). With Apollo's generous sized NEMA 3R control box you can house a larger battery than most gate
operating systems. A larger battery means more cycles during a time of power outages or low sunlight (if solar is being
used). A fully charged deep cycle battery will provide up to 300 cycles or an average of 30 days usage on a basic system
before requiring a recharge (Battery is not included). Each cycle is a full open and close and takes approximately 15
seconds each direction.
|
The 1050 series control board is a new release from Apollo as of 2013. This is the next generation of smart baords for gate openers. It has a built in solar regulator, LCD display for programming and diagnostics, digital controls over force, speed, delay, etc, built in surge supression, Built in clock and timer, and built in multimeter for knowing battery voltage. |
|
|
|
|
|
GateCrafters.com is the DIY factor. GateCrafters.com further adds to most of our gate openers for easier DIY
installation. We have developed exclusive components (example: easy adjustable mounting brackets), customized
instructions, and offer a full spectrum of accessories to truly cover all aspects of the installation of your gate
opener. In addition we have the largest staff of factory trained technicians in the US.
|
|
|
|
|
Included with Gate Opener from Manufacturer
|
Top of Page
|
- Weld On Brackets
- Operator arm
- Control Box and Control Board
- Manual
|
|
Gate Crafters.com Exclusive Product & Estate Swing Package DIY
Additions
|
Top of Page
|
NOTE: Apollo does not supply remotes with their gate opener, we supply a free Estate Swing Package when you buy from GateCrafters.com.
2 Free Estate Swing 433 remotes - featuring the most consistent 300+ foot range in the industry.
Estate Swing 2 channel receiver - Use one channel to operate your Apollo gate opener, the second channel can be used for many other purposes, please see receiver description for ideas.
Adjustable any post size bolt on brackets - makes kit so no welding is required
Low Voltage Charging Controller and Transformer, note: charge board and transformer look may differ from shown below
Order specific customized accessory wiring instructions
360 degree accessories - we can take you through exit, entry, safety, power, and all other minute details to create a
fully rounded kit.
Free 24/7/365 Installation Support
Free 7 day/week Technical Support
Largest Number of Certified Techs in America
Free assistance to find the right gate opener for your gate
Free systems design assistance to match the right accessories to fit your needs.
Extremely competitive pricing
Free shipping on all accessories purchased with a gate opener
We stock all replacement parts
Many brands of many types of accessories, enough to handle just about any operational situation you can imagine
|
|
|
|
|
GateCrafters.com has actual experience. We have a testing area, we have factory and internal training courses, we
build gates and have our own gates that are automated, we attended all industry trade shows in multiple countries and are
a member of the AFA, and we pay visits to our chosen manufacturers' factories. All these factors are what have lead to us
having so many exclusive additions. When you see and actually use as many products as we have you tend to have many ideas
for minor changes that have major impacts. We acted on these ideas and have utilized them to help thousands of customers
automate their gates.
|
|
|
|
|
|
The following tools and supplies are suggested in the manufacturer manual for optimal installation. They are not
provided by GateCrafters, however, most tools are available at local hardware stores for purchase or rental.
- Please refer to manual for Tools Needed.
Depending on the type of gate, power supply and contributing environmental factors additional tools or supplies may
be needed. Please review the product manual associated with this gate opener model for further
details.
|
Words from Senior Application Engineer, Anthony
Gaeto
|
Top of Page
|
"Apollo has been a quality name for years in the gate opener industry, plus the choice of many professional installers.
Coming from Texas, the people at Apollo know and understand the convenience a gate opener can add to a ranch or home.
The 1650 dual Gate Opener is designed for home or ranch use. It is economically priced and built to last. Most home and
ranch gates range between 100 and 300 pounds, which is well within the capabilities of the 1650 dual Opener. Apollo has
really put some time and thought into making this arm durable and ready to take an environmental pounding. The arm is
rust proof and self-lubricating and is teamed up with a sturdy NEMA 3R box for the control board and battery. NEMA 3R
boxes are well known for being the ultimate in weather protection. They stand up to most anything nature can dish out;
winds, sands, ice and snow are no match for a NEMA 3R box.
GateCrafters.com is dedicated to getting the right gate opener for your gate. As more gate openers are being made
economically feasible and easy to maintain, the selection is going to grow ever wider. That's where GateCrafters.com
comes in. We have extensive amounts of educational material on our website to help you become an informed consumer. We
also have our factory-trained representatives standing by to answer all your gate and gate opener questions. The
combination of our customers passion for home improvement and GateCrafters.com’s wealth of knowledge is a perfect match
and cannot be duplicated.”
|
Gate Crafters has a strong relationship with Apollo. Located in San Antonio, TX and well known for their solar powered
operators, Apollo has been established since 1984. The Gate Crafters team most recently met up with Apollo at Fence Tech
2016.
|
Click Images Below to View Larger and Learn More |
"The Apollo 1650 gate opener is one of the best things we have done for ourselves." - Jeff |
Please send testimonials to Testimonials@GateCrafters.com. |
Apollo 1050 D.I.Y. Package Guide
How to Trench Under Your Driveway to Install Wires
Manual: Installation Guide- 1650 Manual: Installation Reference Manual- 816 LA QB ID: 16501K 433Pkg
|
