The Estate Swing E-SC 1602 is a specialized gate opener designed to give homeowners with columns, which are usually very difficult to mount a gate opener on, an easy alternative to the standard gate operator. Use the E-SC 1602 in a residential situation of up to 4 homes.
- Gate Materials: Wood, Steel, Aluminum, Vinyl, Chain Link, and others.
- Weight and length: Up to 16' in length or 800 lbs
- Max degree of opening: 110 degrees
- Gate Post or Column size (pull to open): Max 24" x 24" column with the gate mounted in the center.
- Push to Open: No
- Solar Compatible: No - must be within 72 feet of outlet or use the battery board alternative up to 1000 feet (Buy battery board alternative at the same time as this opener and save $200 instantly).
- Power: Low Voltage Transformer (included) and Backup Batteries (Optional, Not included)
- Power Wire Specification: 16, 14, or 12 gauge wire (purchased separately). Length is determined by distance between transformer power supply and the control box.
- Operating Temperature: -4 to 131 F
- On Special:Save $250 on Estate Swing communication products when you purchase an Estate Swing gate opener!
Purchase this Estate Swing gate opener and an Estate Swing wireless color video intercom or GSM intercom and receive half off the communication accessory, a $250 savings.
|
Select Your Frequency
GateCrafters.com is now offering the Estate Swing series in either 318Mhz frequency or 433Mhz long range frequency. Select your option in the drop down menu above. Note: selection of 433Mhz means that all accessories must by wired in. However, 433Mhz increases the range of your transmitter by at least 80' feet!
|
|
|
|
|
GateCrafters.com offers more expert assistance than anyone. If you need help deciding if this gate opener has the abilities that are right for your gate we have live application specialists available 9am - 9 pm EST 7 days a week or try our exclusive gate opener recommendation tool 24 hours/day.
|
|
|
|
|
|
Estate Swing gate openers are designed to be easy to install for the average handyman. Every unit comes standard with everything needed to automate your gate, including mounting brackets (hardware to affix brackets to column are not included). Included is Estate Swing's unique user directed instruction manual. Estate Swing, being closely involved with its customers, has created the first user driven updateable manual for continuous improvement of installation ease, maintenance and trouble shooting updates. Gate Crafters also brings DIY projects to a new level of simplicity with our 7-day/week technical support and 24/7/365 scheduled installation support.
All Estate Swings are built to the highest standards world wide. Each unit is put through rigorous quality control testing on each component, which are all made and assembled in one factory. The manufacturer is the largest (number one in sales and reputation) in the WORLD and meets or exceeds ISO 9000 regulations, which requires testing on 100% of the products being produced. The Estate Swing E-SC 1602 is certified for and exceeds UL325 standards for anti-crushing safety.
The Estate Swing E-SC 1602 Dual Opener is a low voltage system, eliminating the need to run 110 AC to your gate. Simply run low voltage wire to a household outlet within 72' of the operator or use the battery board alternative up to 1000 feet (Buy battery board alternative at the same time as this opener and save $200 instantly). The E-SC 1602 and E-S 1602 are the only two Constant Duty DIY gate openers on the market. What does this mean to you? These gate openers will run again and again without running a battery down. All other DIY gate openers run off of a battery and are trickle charged after a cycle is run to recharge that battery. If cycles are run off the battery faster then the power can charge it, then your gate opener runs the risk of being temporarily stuck closed. With the E-SC 1602 and the E-S 1602 the power for the cycles come directly from the 24V transformer plugged into a standard outlet; the batteries are strictly backup for power outages. Thus add another level of reliability and peace of mind.
The Estate Swing E-SC 1602 is designed to be one of the safest gate openers available, perfect for families or individuals concerned with the welfare of others.
The Estate Swing E-SC 1602 Single Opener has features never before seen or new to economically priced openers.
About the HomePro Series
The HomePro Series offers "Gate openers built to professional standards." The openers are capable of automating heavier
gates with a constant duty, low voltage design and versatile mounting options.
|
|
|
|
|
|
GateCrafters.com is the DIY factor. GateCrafters.com further adds to most of our gate openers for easier DIY installation. We have developed exclusive components (example: easy adjustable mounting brackets), customized instructions, and offer a full spectrum of accessories to truly cover all aspects of the installation of your gate opener. In addition we have the largest staff of factory trained technicians in the US.
|
|
|
|
|
|
- Opening/Closing Soft Stop - Opening/Closing Soft Stop is a feature in which the control board, during the easy set up process, learns where your opening and closing points are for the swing of the gate. Then during normal operation the gate operator automatically slows the motion of the gate to smoothly meet with the gate's destination point.
- Large 24V Motor - The motor of the E-SC 1602 is one of the largest found on any residential gate opener. It is well equipped to handle gates up to 800 lbs, more weight than found in many heavily ornamented gates.
- Extended Setback - Most gate operators have a required setback for the rear pivot point on the post. This pivot point set back many times makes it difficult to mount on columns. The E-SC 1602 has an extended setback, allowing it to be mounted to most columns or posts. PLUS custom mounting brackets are available for purchase, taking the custom work out of your project and putting the works in our hands.
- Large Opening Arch Capabilities - The E-SC 1602 has the ability to open gates up to 110 degrees, well beyond most other openers.
- Advanced Gear System - The gear system is one of the most important parts of a gate opener; it influences power, control, reliability, and the life span of the motor. The E-SC 1602 uses an advanced worm gear system cutting down on bearing wear and motor deterioration.
- All Weather Compatible - This arm can handle the cold, heat and everything in between.
- One Touch EZ Programming The Estate Swing E-SC 1602 can be programmed by simply pressing one button. The control board is built to be inherently intelligent and learns the open and closing limits automatically. There are no manual adjustments to be made!
- Highest Level of Safety The Estate Swing E-SC 1602 automatically reverses directions when it comes in contact with an obstruction. The Estate Swing E-SC 1602 also has the safest method of controlling safety devices. All safety devices are set up on a Normally Closed circuit. Some gate openers are set up on a normally open circuit. What this means is that the Estate Swing E-SC 1602 is virtually fail-safe. If a safety device does not activate for any reason the Estate Swing E-SC1602 will not operate, keeping your loved ones and assets safe. Gate openers with safety devices set up on a Normally Open connection will operate with the disabled safety device and the consumer will not know the safety device is inactive until it is too late!
- Quick, Safe and Secure Manual Release Every unit comes with a key chain ready manual release key. In the rare case power has failed and the back up battery is not charged, the manual release key can be used to safely open your gate without damaging your opener arm or disconnecting anything from your gate.
- Adjustable Performance Features Adjust the performance of your gate opener to fit your tastes, lifestyle and needs. You can adjust Pause Times, Opening/Closing Delays, Static Force, etc.
- 24 Volt Output Terminals Convenient for accessories requiring power. i.e. locks, sensors, etc.
- Control Board, Easy Read Diagnostics To save you time and trouble, FAAC has included a LED light diagnostic on the control board. This lets you know if connections are or are not made to quickly diagnose problems and efficiently fix them to resume normal gate operation.
- Quick Plug Radio Receiver - The easiest receiver to use on the market. There are no wires to run, simply set your dip switch combination and plug it into the board. It is compatible with multiple wireless keypads and intercoms.
|
|
|
|
|
|
GateCrafters.com has the resources you need. How do you use your gate opener system once you get it? GateCrafters.com is the only retailer to give a real answer to this question. We have develop videos for installing many of our gate openers and products and write DIY focused manuals for most gate openers and have individual instructions for each accessory to be installed with each gate opener.
|
|
|
|
|
|
|
|

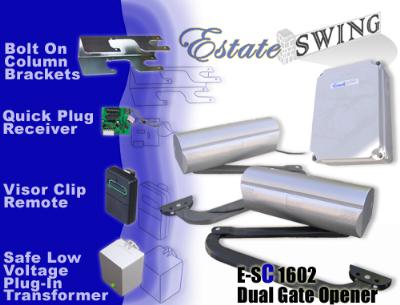

Included with Gate Opener from Manufacturer
|
Top of Page
|
- Control Box
- 2 Operator Arms with power cable
- Control Board
- Manual Release Key
- Low Voltage Transformer
|
- 433Mhz or 318Mhz Receiver
- 433Mhz or 318Mhz Transmitter
- Adjustable, bolt on mounting brackets
- Mounting Hardware
- Instruction Manual, Public Warning Sign, Quick Check color wiring diagram and setback cutout
- Order specific customized accessory wiring instructions
|
|
|
Gate Crafters.com Exclusive Product & DIY Additions
|
Top of Page
|
|
Additional Transmitter
360 degree accessories - we can take you through exit, entry, safety, power, and all other minute details to create a fully rounded kit.
Free 24/7/365 Installation Support
Limited 5 year mechanical warrantee on ALL Estate Swing openers.
Free 7 day/week Technical Support
Largest Number of Certified Techs in America
Free assistance to find the right gate opener for your gate
Free systems design assistance to match the right accessories to fit your needs.
Extremely competitive pricing
Free shipping on all accessories purchased with a gate opener
We stock all replacement parts
Many brands of many types of accessories, enough to handle just about any operational situation you can imagine
|
|
|
|
|
|
GateCrafters.com has actual experience. We have a testing area, we have factory and internal training courses, we build gates and have our own gates that are automated, we attended all industry trade shows in multiple countries and are a member of the AFA, and we pay visits to our chosen manufacturers' factories. All these factors are what have lead to us having so many exclusive additions. When you see and actually use as many products as we have you tend to have many ideas for minor changes that have major impacts. We acted on these ideas and have utilized them to help thousands of customers automate their gates.
|
|
|
|
|
|
|
|
The following tools and supplies are suggested in the manufacturer's manual for optimal installation. They are not provided by GateCrafters, however, most tools are available at local hardware stores for purchase or rental.
- Power Drill and appropriately sized bits
- Crescent Wrench
- Flat Head Screwdriver
- Nuts, Bolts, Anchors and Washers
- C-Ring Pliers
- Phillips Head Screwdriver
- Tape Measure
- Level
- Wire Strippers
- C-Clamps
- Carpenters Clamps
Depending on the type of gate, power supply and contributing environmental factors additional tools or supplies may be needed. Please review the product manual associated with this gate opener model for further details.
|
|
Words from Senior Application Engineer, Anthony Gaeto
|
Top of Page
|
"The Estate Swing is made by the largest gate opener manufacturer in the world that is known for their unrelenting commitment to quality. They have now teamed up with us, the largest gate opener retailer, to release the latest of in their accomplished line of gate openers; the Estate Swing line of openers. The Estate Swing E-SC 1602 is a revolutionary opener that is set to make column mounting a breeze. It has amazing features that can’t be found on any other opener on the market.
The Estate Swing E-SC 1602 dual gate opener is designed for gates from 16 feet in length or 800 lbs. The unit attaches to the gate via an articulating arm that reaches back behind the corner of the column, making it possible for setbacks that are not available to most linear operators. A concern with older model articulating arms were pinch points, Estate Swing has now eliminated these. The articulating arm has curved pivot point connections, making it safer to have around families. The Estate Swing E-SC 1602 utilizes a smart control board to run the commands mechanical parts of other systems run.
Opening/Closing Soft Stop is a new feature in gate openers. This means that the gate opener remembers the limits of the opening and closing cycles, and slows the momentum of the gate to gently reach its stopping point.
The Estate Swing E-SC 1602 also features one touch easy programming, cutting your installation set up time in half. Once the gate opener is mounted and your variables are set, to learn how far your gate opens and closes, all you have to do is press one button and that’s it. The E-SC 1602 can also be used without positive stops. It can be used with point-positive limit switches for easy stopping points when positive stops, or physical stopping points, are not desired.
Safety is always a top concern with FAAC. They have designed their system to be the safest in the world. We at GateCrafters.com always recommend having external safety devices such as photo sensors installed on your opener to prevent damage or injury. The Estate Swing E-SC 1602, first, has an auto-reverse feature built in. Even if you do not decide to install any external safety devices, the Estate Swing E-SC 1602 will automatically reverse directions if it comes in contact with an obstruction. The top safety feature is how safety devices are wired on the Estate Swing E-SC 1602. Other gate openers have a flawed system; they are hooked up on a normally open circuit, which means if your safety device is not functioning properly it will not stop the movement of your gate. This can lead to disastrous results. The Estate Swing E-SC 1602 works on normally closed connections for safety devices. In most cases, if the safety device is not functioning properly, the normally closed connection will be open, the same as when there is a breach of the safety device, and the gate will not move.
As if all the previously mentioned features aren't impressive enough, the Estate Swing E-SC 1602 also has a state of the art diagnostic system. After set up you can check out your diagnostics lights to be sure accessories are connected correctly. The lights quickly tell you if a connection is made or not made in the accessory terminals. This will save all users time from having to guess what is preventing proper operation and prevent users from testing and reconnecting terminals that were connected properly to begin with.
GateCrafters.com was selected as a Estate Swing partner because our profound commitment to customer service. Every member of our technical support staff has had direct training from the manufacturer. We are available 7 days a week for support, even during holidays, from 9 A.M to 9 P.M. Eastern time. Also we will make ourselves available to you after hours upon request for installation questions absolutely free. I believe every customer will find the support they need at GateCrafters.com and that is what has lead us to be the number one seller of gate openers in the world.
I stand behind the values of GateCrafters.com and would like to invite you to give us a try. You will find the service, knowledge and enthusiasm can't be beat; and the price will amaze you as well."
|
|
As part of one of GateCrafters.com's constant quality checks and knowledge updates. I personally go to Italy annually to visit the factories in which Estate Swing products are made. One of my goals is to see what exactly is being done to meet the high standards of the ISO 9000 ratings. What I have found is every part that is assembled is put through a computer-guided test. Some tests for example are to be sure the electrical side of the part has the correct amount of resistance; another to test the motion vibrations of moving parts, a third is the overall longevity of the part. The computer then rejects or accepts the part. Another test done at the factory is running samples of the openers at 50% duty cycle for the entire life of the warranty at its rated capacities to ensure reliability.
|
