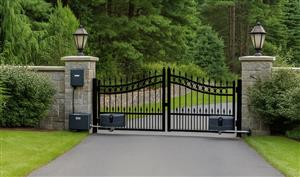

Estate Swing E-SC 1602 Column Mountable Dual Swing Gate Opener w/ Free Extra Remote (E-SC 1602)



Price:$1,479.00
Quantity:



Bookmark and Share
Live Chat
Chat with a live representative or Send us an email

1-800-537-4283


Chip Wade | Estate Swing





   Product Details

  • DIY Installation
  • Gate Opener At a Glance
  • Gate Crafters.com Exclusive Product & DIY Additions
  • Included with Gate Opener from Manufacturer
  • Words from Senior Application Engineer
  • Customer Installations
  • Factory Visit Updates
  • Tools & Supplies for Installation
  • Product Media
  • Gate Opener Description
  • Tools & Supplies for Installation
  • Customer Testimonials

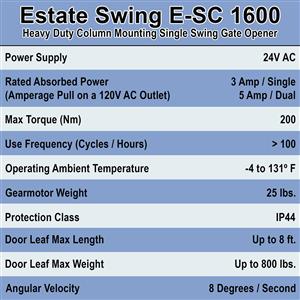

  •    Gate Opener At a Glance Top of Page

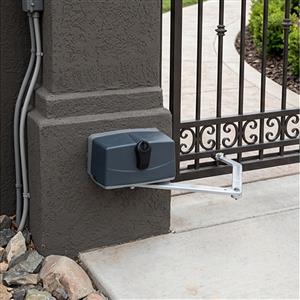

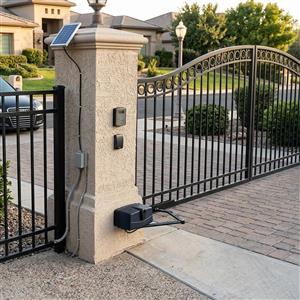

    The Estate Swing E-SC 1602 is a specialized gate opener designed to give homeowners with columns, which are usually very difficult to mount a gate opener on, an easy alternative to the standard gate operator. Use the E-SC 1602 in a residential situation of up to 4 homes.
    • Gate Materials: Wood, Steel, Aluminum, Vinyl, Chain Link, and others.
    • Weight and length: Up to 16' in length or 800 lbs
    • Max degree of opening: 110 degrees
    • Gate Post or Column size (pull to open): Max 24" x 24" column with the gate mounted in the center.
    • Push to Open: No
    • Solar Compatible: No
    • Power: Low Voltage Transformer (included) and Backup Batteries (Optional, Not included)
    • Power Wire Specification: 16, 14, or 12 gauge wire (purchased separately). Length is determined by distance between transformer power supply and the control box.
    • Operating Temperature: -4 to 131 F
    • On Special: Save $20 on the GateCrafters MyQ receiver when you purchase an Estate Swing gate opener!
      Purchase this Estate Swing gate opener and the GateCrafters.com MyQ Receiver kit to open your gate via cell phone app and receive a $20 discount.
    • Warranty:1-year electrical/ 5-year component limited warranty. (Click Here for Warranty Pros and Cons)
    GateCrafters.com offers more expert assistance than anyone. If you need help deciding if this gate opener has the abilities that are right for your gate we have live application specialists available 9am - 9 pm EST 7 days a week or try our exclusive gate opener recommendation tool 24 hours/day.

       DIY Installation Top of Page

    <span style='text-decoration:underline;' onmouseover=javascript:generateFloatLayer('Iframe819') onmouseout=document.getElementById('Iframe819').style.display='none'>DIY</span><iframe SCROLLING='no' src='/glossary_detail.aspx?id=10851' frameborder='0' onload=this.height=Iframe819.document.body.scrollHeight+20;document.getElementById('Iframe819').style.display='none' id='Iframe819' name='Iframe819' style='position: absolute; z-index: 100; background-color: #eeeeee;width: 205px; font-size: 14px; padding: 15px;'></iframe> Install

    Estate Swing Gate Openers are made for the DIY gate opener customers. With easy bolt on brackets and simple setback templates, Estate Swing has made it easy for any homeowner to install their gate opener and automate their gate. Estate Swing gate openers can be installed with simple household tools and do not require any special expertise or building code approval*. Gate Crafters has been aiding customers for over a decade in providing technical and installation support 7 days a week from 9 am to 9 pm, EST and is the premier source for Estate Swing opener and accessories because of this experience.

    When you DIY install your gate opener system, you will save $1000s of dollars over the life of your gate opener. You will have working knowledge of your gate opener installation and how the gate opener works. This will make it easier for you to troubleshoot your system and perform routine maintenance, if needed in the future.

    *Disclaimer:We are currently unaware of any required building code inspections required for any installation of an Estate Swing gate opener(s). Moreover, we cannot guarantee all counties would not require approval.

    GateCrafters.com offers more expert assistance than anyone. If you need help troubleshooting or installation support with your gate opener,we have live technical support specialists available 9am - 9 pm EST 7 days a week or try our exclusive gate opener recommendation tool 24 hours/day.

       Gate Opener Description Top of Page
    Estate Swing gate openers are designed to be easy to install for the average handyman. Every unit comes standard with everything needed to automate your gate, including mounting brackets (hardware to affix brackets to column are not included). Included is Estate Swing's unique user directed instruction manual. Estate Swing, being closely involved with its customers, has created the first user driven updatable manual for continuous improvement of installation ease, maintenance and trouble shooting updates. Gate Crafters also brings DIY projects to a new level of simplicity with our 7-day/week technical support and 24/7/365 scheduled installation support.

    All Estate Swings are built to the highest standards world wide. Each unit is put through rigorous quality control testing on each component, which are all made and assembled in one factory. The Estate Swing E-SC 1602 exceeds vehicular gate safety standards.

    The Estate Swing E-SC 1602 Dual Opener is a low voltage system, eliminating the need to run 110 AC to your gate. Simply run low voltage wire to a household outlet within 144' of the operator. The E-SC 1602 and E-S 1602 are the only two Constant Duty DIY gate openers on the market. What does this mean to you? These gate openers will run again and again without running a battery down. All other DIY gate openers run off of a battery and are trickle charged after a cycle is run to recharge that battery. If cycles are run off the battery faster then the power can charge it, then your gate opener runs the risk of being temporarily stuck closed. With the E-SC 1602 and the E-S 1602 the power for the cycles come directly from the 24V transformer plugged into a standard outlet; the batteries are strictly backup for power outages. Thus add another level of reliability and peace of mind.

    The Estate Swing E-SC 1602 is designed to be one of the safest gate openers available, perfect for families or individuals concerned with the welfare of others.

    The Estate Swing E-SC 1602 Single Opener has features never before seen or new to economically priced openers. This gate opener is designed to be used with gates mounted on larger columns. This opener works great with columns from 12" x 12" and up to 24" x 24". The articulating is key to this opener being compatible with larger columns.

    GateCrafters.com is the DIY factor. GateCrafters.com further adds to most of our gate openers for easier DIY installation. We have developed exclusive components (example: easy adjustable mounting brackets), customized instructions, and offer a full spectrum of accessories to truly cover all aspects of the installation of your gate opener. In addition we have the largest staff of factory trained technicians in the US.

       Gate Opener Features Top of Page

    • Opening/Closing Soft Stop Opening/Closing Soft Stop is a feature in which the control board, during the easy set up process, learns where your opening and closing points are for the swing of the gate. Then during normal operation the gate operator automatically slows the motion of the gate to smoothly meet with the gate's destination point.
    • Large 24V Motor The motor of the E-SC 1602 is one of the largest found on any residential gate opener. It is well equipped to handle gates up to 800 lbs, more weight than found in many heavily ornamented gates.
    • Extended Setback Most gate operators have a required setback for the rear pivot point on the post. This pivot point set back many times makes it difficult to mount on columns. The E-SC 1602 has an extended setback, allowing it to be mounted to most columns or posts. PLUS custom mounting brackets are available for purchase, taking the custom work out of your project and putting the works in our hands.
    • Large Opening Arch Capabilities The E-SC 1602 has the ability to open gates up to 110 degrees, well beyond most other openers.
    • Advanced Gear System The gear system is one of the most important parts of a gate opener; it influences power, control, reliability, and the life span of the motor. The E-SC 1602 uses an advanced worm gear system cutting down on bearing wear and motor deterioration.
    • All Weather Compatible This arm can handle the cold, heat and everything in between.
    • One Touch EZ Programming The Estate Swing E-SC 1602 can be programmed by simply pressing one button. The control board is built to be inherently intelligent and learns the open and closing limits automatically. There are no manual adjustments to be made!
    • Highest Level of Safety The Estate Swing E-SC 1602 automatically reverses directions when it comes in contact with an obstruction. The Estate Swing E-SC 1602 also has the safest method of controlling safety devices. All safety devices are set up on a Normally Closed circuit. Some gate openers are set up on a normally open circuit. What this means is that the Estate Swing E-SC 1602 is virtually fail-safe. If a safety device does not activate for any reason the Estate Swing E-SC1602 will not operate, keeping your loved ones and assets safe. Gate openers with safety devices set up on a Normally Open connection will operate with the disabled safety device and the consumer will not know the safety device is inactive until it is too late!
    • Quick, Safe and Secure Manual Release Every unit comes with a key chain ready manual release key. In the rare case power has failed and the back up battery is not charged, the manual release key can be used to safely open your gate without damaging your opener arm or disconnecting anything from your gate.
    • Adjustable Performance Features Adjust the performance of your gate opener to fit your tastes, lifestyle and needs. You can adjust Pause Times, Opening/Closing Delays, Static Force, etc.
    • 24 Volt Output Terminals Convenient for accessories requiring power. i.e. locks, sensors, etc.

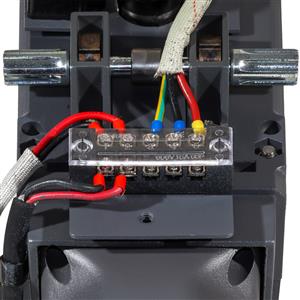

    • Easy Programming Control Board The control board features a simple layout the is easy to wire and program.
    • Quick Plug Radio Receiver The easiest receiver to use on the market. There are no wires to run, simply set your dip switch combination and plug it into the board. It is compatible with multiple wireless keypads and intercoms.
    GateCrafters.com has the resources you need. How do you use your gate opener system once you get it? GateCrafters.com is the only retailer to give a real answer to this question. We have develop videos for installing many of our gate openers and products and write DIY focused manuals for most gate openers and have individual instructions for each accessory to be installed with each gate opener.

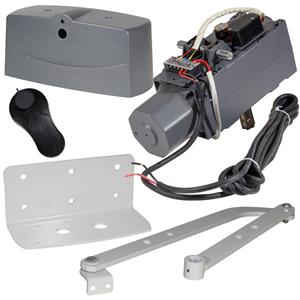

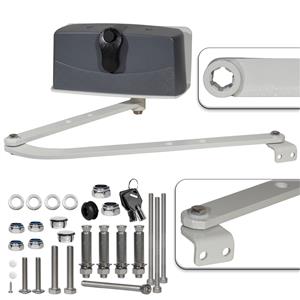

       Included with Gate Opener from Manufacturer Top of Page
    • Control Box
    • 2 Operator Arms with power cable
    • Control Board
    • Manual Release Key
    • Low Voltage Transformer
    • 433Mhz Receiver
    • 433Mhz Transmitter
    • Adjustable, bolt on mounting brackets
    • Mounting Hardware
    • Instruction Manual, Public Warning Sign, Quick Check color wiring diagram and setback cutout
    • Order specific customized accessory wiring instructions
    Included Parts
       Gate Crafters.com Exclusive Product & DIY Additions Top of Page
  • Additional Transmitter
  • 360 degree accessories - we can take you through exit, entry, safety, power, and all other minute details to create a fully rounded kit.
  • Free 24/7/365 Installation Support
  • Limited 5 year mechanical warrantee on ALL Estate Swing openers.
  • Free 7 day/week Technical Support
  • Largest Number of Certified Techs in America
  • Free assistance to find the right gate opener for your gate
  • Free systems design assistance to match the right accessories to fit your needs.
  • Extremely competitive pricing
  • Free shipping on all accessories purchased with a gate opener
  • We stock all replacement parts
  • Many brands of many types of accessories, enough to handle just about any operational situation you can imagine
  • Order specific customized accessory wiring instructions
  • 360 degree accessories - we can take you through exit, entry, safety, power, and all other minute details to create a fully rounded kit.
  • GateCrafters.com has actual experience. We have a testing area, we have factory and internal training courses, we build gates and have our own gates that are automated, we attended all industry trade shows in multiple countries and are a member of the AFA, and we pay visits to our chosen manufacturers' factories. All these factors are what have lead to us having so many exclusive additions. When you see and actually use as many products as we have you tend to have many ideas for minor changes that have major impacts. We acted on these ideas and have utilized them to help thousands of customers automate their gates.
       Tools & Supplies for Installation Top of Page

    The following tools and supplies are suggested in the manufacturer's manual for optimal installation. They are not provided by GateCrafters, however, most tools are available at local hardware stores for purchase or rental.

    • Power Drill and appropriately sized bits
    • Crescent Wrench
    • Flat Head Screwdriver
    • Nuts, Bolts, Anchors and Washers
    • C-Ring Pliers
    • Phillips Head Screwdriver
    • Tape Measure
    • Level
    • Wire Strippers
    • C-Clamps
    • Carpenters Clamps

    Depending on the type of gate, power supply and contributing environmental factors additional tools or supplies may be needed. Please review the product manual associated with this gate opener model for further details.
       Words from Senior Application Engineer, Anthony Gaeto Top of Page
    Anthony Gaeto Application Engineer

    "Column mount are designed to work seamlessly with gate mounted onto larger square columns. These openers allow you to automate your gate while saving money during installation. Typically with larger columns you would have to cut a niche into the column to mount a traditional linear actuator or buy a expensive pad mount opener. However, with a column mount style you can achieve a simpler DIY installation.

    The Estate Swing E-SC 1602 dual gate opener is designed for gates from 16 feet in length or 800 lbs per leaf. The unit attaches to the gate via an articulating arm that reaches back behind the corner of the column, making it possible for setbacks that are not available to most linear operators. A concern with older model articulating arms were pinch points, Estate Swing has now eliminated these. The articulating arm has curved pivot point connections, making it safer to have around families. The Estate Swing E-SC 1602 utilizes a smart control board to run the commands mechanical parts of other systems run.

    One great feature of modern day openers is the soft close and soft start. This takes of wear and tear off your hinges and opener as the force of the gate is not coming to a drastic stop.

    The Estate Swing E-SC 1602 also features simple to program limit switches. The control board will emit a audible noise when the limit switch is in the correct position. To adjust the limit switches is very easy on the E-SC1602, simply loosen the cam lob on the top of the motor until the switch is activated..

    The Estate Swing E-SC 1602 features Estate Swing's easy to program and wire classic control board.

    As if all the previously mentioned features aren't impressive enough, the Estate Swing E-SC 1602 also has a state of the art diagnostic system. After set up you can check out your diagnostics lights to be sure accessories are connected correctly. The lights quickly tell you if a connection is made or not made in the accessory terminals. This will save all users time from having to guess what is preventing proper operation and prevent users from testing and reconnecting terminals that were connected properly to begin with.

    GateCrafters.com was selected as a Estate Swing partner because our profound commitment to customer service. Every member of our technical support staff has had direct training from the manufacturer. We are available 7 days a week for support, even during holidays, from 9 A.M to 9 P.M. Eastern time. Also we will make ourselves available to you after hours upon request for installation questions absolutely free. I believe every customer will find the support they need at GateCrafters.com and that is what has lead us to be the number one seller of gate openers in the world.

    I stand behind the values of GateCrafters.com and would like to invite you to give us a try. You will find the service, knowledge and enthusiasm can't be beat; and the price will amaze you as well."

       Factory Visit Updates Top of Page
    As part of one of GateCrafters.com's constant quality checks and knowledge updates. I annually visit the global facilities that produce Estate Swing products. The facilities that Estate Swing uses to manufacture their products are some of largest in the industry. As part of my trips to these manufacturing facilities, I meet with engineering staff to discuss customer issues that been located and how to correct these issues. The feedback that our customer gives us is transferred back to the manufacturer so that we can make sure we are offering the best product to our customers.
       Customer Installations Top of Page
    Multimeter All submissions receive a FREE Multimeter.
    Email them to customerphotos@gatecrafters.com.
    Click Images Below to View Larger and Learn More
    ESC 1600 ESC 1602


       Customer Testimonials Top of Page
    Be the first to write a testimonial for this product. Please send them to Testimonials@GateCrafters.com.
       Product Media Top of Page

    How to Trench Under Your Driveway to Install Wires



    1602 Gate


    Manual: ESC 1600 Dual Swing Manual
    QB ID: E-SC 1602 + 433
