Protect your automated gate system with the FA-XP30-10K Infrared Photocell. Engineered for both residential and commercial gates, this high-performance sensor uses advanced modulated infrared technology with a 10K monitored output to detect obstructions reliably. Its 4-channel design minimizes interference, while an IP54-rated, weather-resistant housing ensures long-lasting performance in any environment. With a detection range of up to 100 ft and versatile mounting options, it delivers dependable gate safety and UL 325 compliance.
Gate Crafters offers more expert assistance than anyone.
If you need help deciding if this gate opener has the abilities that are right for your gate we have live application specialists available 9am - 9 pm EST 7 days a week or try our exclusive gate opener recommendation tool 24 hours/day.
Viking Access Systems and other UL 325-compliant gate operators
- Reliable Safety Compliance: 10K monitored output ensures UL 325 standards are met.
- Interference-Free Operation: 4 programmable infrared channels for precise detection.
- Long-Range Detection: Accurately senses objects up to 100 ft (30 m) away.
- Weather-Resistant Design: IP54-rated enclosure protects against dust and water.
- Versatile Mounting Options: Compatible with wall, conduit, and column installations.
- Energy Efficient: Operates on 12–24 VAC/DC with low current draw.
Gate Crafters has the resources you need.
How do you use your gate opener system once you get it? Gate Crafters is the only retailer to give a real answer to this question. We have develop videos for installing many of our gate openers and products and write DIY focused manuals for most gate openers and have individual instructions for each accessory to be installed with each gate opener.
- Voltage Supply: 12-24 VAC / VDC
- Operating Current Transmitter: 20mA
- Operating Current Receiver: 30mA
- Technology: Modulated infrared light - 4 separate channels
- Ambient Operating Temperature: 4°F to 131°F (-20 °C to +55°C)
- LED Beam Angle: ±7° @ 65 ft (20m) ±13.5° @ 16 ft (5 m)
- Max Range: 100 ft (30 m)
- Output: NO/NC relay 1A - 120V NO/NC relay 1A - 120V
- Protection Class: IP54
- Monitoring Type: 10K resistor
- Mounting: Optional conduit adapter

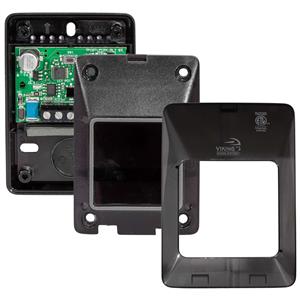

(2) Viking FA-XP30-10K Monitored Photo Eye
For over a decade, Gate Crafters has been the premier online retailer of gate openers and accessories. With our extensive technical and installation expertise, we are authorized to serve the DIY market. We believe customers should have the opportunity to take pride in their projects, whether installing or troubleshooting a gate opener. Everyone deserves the option to enjoy high-quality products without the need to hire help.
At Gate Crafters, we empower you to install confidently by providing access to our trained technical staff seven days a week from 9 AM to 9 PM EST. By choosing to DIY your gate opener system, you can save thousands of dollars over its lifetime while gaining valuable knowledge about your installation and how the system operates. This understanding will make it easier to troubleshoot any issues and perform routine maintenance in the future.
Gate Crafters is the DIY factor.
Gate Crafters further adds to most of our gate openers for easier DIY installation. We have developed exclusive components (example: easy adjustable mounting brackets), customized instructions, and offer a full spectrum of accessories to truly cover all aspects of the installation of your gate opener. In addition we have the largest staff of factory trained technicians in the US.
- Order specific customized accessory wiring instructions
- 360 degree accessories - we can take you through exit, entry, safety, power, and all other minute details to create a fully rounded kit.
- Free 24/7/365 Installation Support
- Free 7 day/week Technical Support
- Largest Number of Certified Techs in America
- Free assistance to find the right gate opener for your gate
- Free systems design assistance to match the right accessories to fit your needs.
- Extremely competitive pricing
- Free shipping on all accessories purchased with a gate opener
- We stock replacement parts
- Many brands of many types of accessories, enough to handle just about any operational situation you can imagine
Gate Crafters has actual experience.
We have a testing area, we have factory and internal training courses, we build gates and have our own gates that are automated, we attended all industry trade shows in multiple countries and are a member of the AFA, and we pay visits to our chosen manufacturers' factories. All these factors are what have lead to us having so many exclusive additions. When you see and actually use as many products as we have you tend to have many ideas for minor changes that have major impacts. We acted on these ideas and have utilized them to help thousands of customers automate their gates.
The following tools and supplies are suggested in the manufacturer manual for optimal installation. They are not provided by Gate Crafters, however, most tools are available at local hardware stores for purchase or rental.
Please refer to the Installation Manual for Tools Needed.
Depending on the type of gate, power supply and contributing environmental factors additional tools or supplies may be needed. Please review the product manual associated with this gate opener model for further details.
