For limited time only: Get half off a GC 5 Watt, GC 10 Watt, GC 20 Watt or GC 30 Watt solar panel with the purchase of this gate opener and the corresponding solar option. Simply add the Patriot Slide Gate Opener to the shopping cart and any of the above solar panel choices to automatically receive your discount. While supplies and promotional sale lasts. Solar panel must be added to the cart with the order and will be charging supply for gate opener purchase.
|
|
The Patriot Swing Gate Dual Gate Opener is the fastest, strongest and most reliable gate opener with an unmatched 14 years of superior performance backed by a 5/3 year limited warranty. Made in the USA, this gate opener features pre-wired solar parts, pre-installed components, and a built in timer.
Gate Materials: Wood, Steel, Aluminum, Chain Link
Weight and length: Up to 32' in length or 800 lbs. Fit Your Gate
Type
Solar Compatible: Yes, browse our solar panels (purchased separately).
Power: 12 Volt DC deep cycle marine battery required. (Not Included)
Mounting Options: Standard pad or post mount installation
Warranty:5-year manufacturer control board/ 3-year component manufacturer warranty. (Click Here for Warranty Pros and Cons)
|
|
|
|
|
GateCrafters.com offers more expert assistance than anyone. If you need help deciding if this gate opener has the abilities that are right for your gate, we
have live application specialists available 9am - 9 pm EST 7 days a week or try our exclusive gate opener recommendation tool 24 hours/day.
|
|
|
|
|
U.S. Automatic Patriot Swing Gate Operator

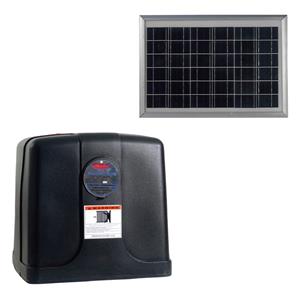

The Patriot RSL is the most efficient slide gate operator in the industry. Easily mounts to a pad or post, and features simple and convenient manual release knob with easy to adjust limit switches.
The Patriot RSL operator is powered by a 12-Volt dc battery (not included). This battery is charged by the supplied transformer which requires AC power (120 VAC) to be either at the gate's area or within 1000 feet of the gate's area. If the AC power is more than 10 feet from the gate opener's control box, then additional extension cable is required.
The automatic gate operator's solar charge method is optional and requires a solar panel (sold separately) for proper operation. Typically only one panel will be required. The Patriot RSL is designed for gates with 24 feet of leading gate edge travel if solar charged, or for gates with 32 feet of leading gate edge travel if AC charged. For information on what you can expect from a solar charged system, see the solar charging section of this site. Accessories that are added to your gate opener must be solar friendly accessories and they will be identified as such. Review the solar region map to determine the number of cycles per day you can expect from a solar charged system.
The Patriot control board is the replacement circuit board for the Patriot gate operators. The control board includes a number of user-friendly features. It acts as the same control board for single or dual Patriot gate operators and works for both slide and swing gates. The Patriot control board also features sensitivity adjustment capabilities that can be used on Gate 1 and Gate 2 independently, so there's no need to keep fiddling with the adjustment settings. Other features include 13 LED troubleshooting lights and a 5-year control board warranty.
The Patriot Slide Gate Operator by U.S. Automatic is proudly manufactured in the U.S.
|
|
|
|
|
|
GateCrafters.com is the DIY factor. GateCrafters.com further adds to most of our gate openers for easier DIY installation. We have developed exclusive
components (example: easy adjustable mounting brackets), customized instructions, and offer a full spectrum of accessories to truly cover all aspects of the installation
of your gate opener. In addition we have the largest staff of factory trained technicians in the US.
|
|
|
|
|
|
|
Slide Gate Opener
(2) Chain Bracket
Emergency Release Access Cover
Secondary Entrapment Siren
Set of 2 Safety Signs
Set of 2 433Mhz Transmitters
Hardware kit
|
Operator Chassic Components:
Multicode Receiver
Gear Motor
Patriot Control Board
AC Charger
Instructional Manual
|
Gate Operator on Gate:
|
|
Gate Crafters.com Exclusive Product & DIY Additions
|
Top of Page
|
|
360 degree accessories - we can take you through exit, entry, safety, power, and all other minute details to create a fully rounded kit.
Free 24/7/365 Installation Support
Free 7 day/week Technical Support
Largest Number of Certified Techs in America
Free assistance to find the right gate opener for your gate
Free systems design assistance to match the right accessories to fit your needs.
Extremely competitive pricing
Free shipping on all accessories purchased with a gate opener
We stock all replacement parts
Many brands of many types of accessories, enough to handle just about any operational situation you can imagine
|
|
|
|
|
|
GateCrafters.com has actual experience. We have a testing area, we have factory and internal training courses, we build driveway gates and have our own
gates that are automated, we attended all industry trade shows in multiple countries and are a member of the AFA, and we pay visits to our chosen manufacturers'
factories. All these factors are what have lead to us having so many exclusive additions. When you see and actually use as many products as we have you tend to
have many ideas for minor changes that have major impacts. We acted on these ideas and have utilized them to help thousands of customers automate their gates.
|
|
|
|
|
|
|
|
The following tools and supplies are suggested in the manufacturer's manual for optimal installation. They are not provided by GateCrafters, however, most tools
are available at local hardware stores for purchase or rental.
Wrenches (7/16, 3/4)
Clamps
Drill
Chain cutter
Hack saw
Level and tape measure
Welding is the recommended method of securing the linear actuator mounts to the gate and hinge post. Bolt on brackets are provided and are acceptable but
may require frequent service to keep tight. They must be very securely attached (i.e. carriage bolts with lock nuts and washers). Lag type bolts are not recommended.
Loose or unstable linear actuator mounts will result in improper operation.
Depending on the type of gate, power supply and contributing environmental factors additional tools or supplies may be needed. Please review the product manual associated with this gate opener model for further details.
|
Manual: Patriot RSL Installation Manual
QB ID: 020430-10W
|
