How do I manually release the gate during a power outage or emergency?
▼
To manually release the gate:
1. Turn off power to the operator (if possible)
2. Unlock the operator cover
3. Disengage the drive system
4. Move the gate manually
5. Return the operator to automatic mode
Is the RSL12UL compliant with UL 325 and other safety standards?
▼
Yes. The LiftMaster RSL12UL is UL 325 listed and is designed to meet the safety requirements for automated vehicular slide gate operators when installed correctly with the required safety devices. UL 325 compliance requires external monitored safety devices to be installed.
Compatible devices include:
- Monitored photoelectric sensors (photo eyes)
- Monitored edge sensors
The operator manufacturer specifically notes that external entrapment protection devices must be added to meet UL 325 requirements.
What do the diagnostic lights or error codes mean and how can I troubleshoot them?
▼
The LiftMaster RSL12UL uses a combination of LED indicators, a diagnostic display, and audible alerts to help identify operating problems. When the gate stops, reverses, or will not move, the diagnostic information on the control board is the best place to start troubleshooting. To access the diagnostic information:
1. Open the operator cover.
2. Locate the control board diagnostic display and LEDs.
3. Check the displayed code or LED pattern.
4. Use the fault information to identify the affected system:
- Safety devices
- Power/battery
- Limits
- Motor/encoder
- Accessory inputs
What maintenance is required to keep the RSL12UL operating reliably?
▼
- Entrapment Protection Devices: Check and test inherent (built into the operator) and external devices for proper operation at least once a month
- Warning Signs: Make sure they are present and replace if worn or broken at least once a month
- Manual Disconnect: Check and test for proper operation at least once every 6 months
- Drive Chain and Sprockets: Check for excessive slack and lubricate at least once a month
- Belt and Pulley: Check for excessive slack, wear or damage at least once every 6 months
- Gate: Inspect for wear or damage at least once a month
- Accessories: Check all for proper operation at least once every 6 months
- Electrical: Inspect all wire connections at least once every 6 months
- Chassis Mounting Bolts: Check for tightness at least once every 6 months
- Operator: Inspect for wear or damage at least once every 6 months
- Batteries: Replace at least once every 3 years
What is included in the RSL12UL slide gate operator kit?
▼
- RSL12UL slide gate operator (motor unit)
- Operator cover
- 12 VDC, 7 Ah backup battery
- LiftMaster LMRRUL monitored retro-reflective photoelectric safety sensor
- 5 ft. monitored edge sensor kit
- 30 ft. of #41 drive chain
- Eye bolt kit (for chain attachment)
- Two warning signs
- Warranty card
- Documentation/installation packet (manual and supporting documents)

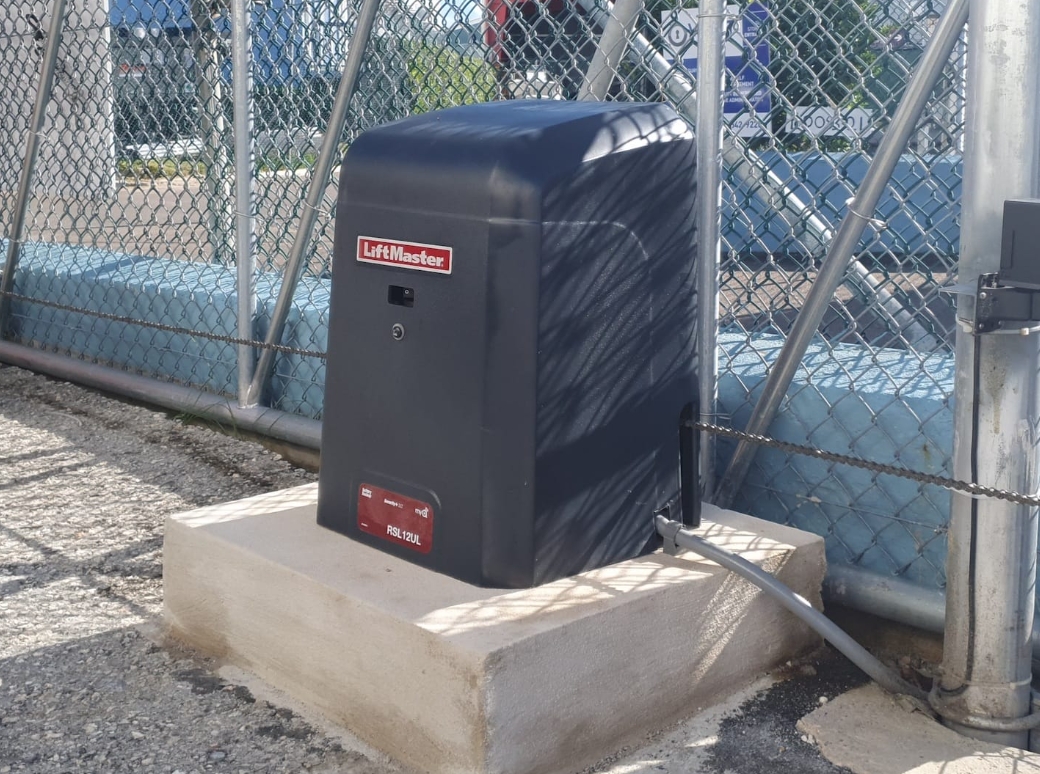

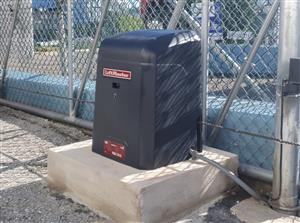

How do I install the RSL12UL slide gate operator?
▼
1. Determine Location for Operator
2. Install Operator
3. Attach the Chain
4. Install Entrapment Protection
5. Install Earth Ground Rod
6. Power Wiring
7. Install the Cover
8. Program and test the operator
9. Install Warning Signs
For more specific installation instructions, please refer to the operator's manual.
How do I set and adjust the travel limits and speed settings on the RSL12UL?
▼
1. Verify the gate is properly installed and moves freely by hand.
2. Press and release the SET OPEN and SET CLOSE buttons at the same time to enter Limit Setting Mode.
3. Press and hold the appropriate MOVE GATE button to move the gate to the desired open or closed position.
4. Press the corresponding SET OPEN or SET CLOSE button to save that limit.
5. Move the gate to the opposite end of travel using the MOVE GATE button.
6. Press the appropriate SET button again to save the second limit.
7. Run the gate through one complete open and close cycle. The operator automatically performs its Automatic Force Setup and exits Limit Setting Mode when programming is complete.
How do I program or pair remotes, keypads, or access control devices with the RSL12UL?
▼
The LiftMaster RSL12UL can store up to 50 Security+ 2.0® remote controls or KPW250 wireless keypads, plus 2 wireless keyless entry PINs. Programming is performed using the LEARN button on the operator's control board. To program the remote:
1. Press and release the LEARN button.
2. The operator beeps and the green XMITTER LED illuminates.
3. Programming mode remains active for 30 seconds.
4. Press the OPEN button on the control board.
5. Press the desired button on the remote control.
6. The operator beeps and the XMITTER LED turns off, confirming successful programming.
Does the RSL12UL integrate with myQ® or other smart control systems, and how do I set that up?
▼
Yes, this operator does integrate with myQ®:
1. Connect the Ethernet cable to the LiftMaster Internet Gateway and the router.
2. Connect power to the LiftMaster Internet Gateway.
3. Create an online account by visiting www.myliftmaster.com.
4. Register the LiftMaster Internet Gateway.
5. Use an internet enabled computer or smartphone to add devices. The LiftMaster Internet Gateway will stay in learn mode for three minutes.
6. Press the Learn button twice on the primary operator (the operator will beep as it enters learn mode). The LiftMaster Internet Gateway will pair to the operator if it is within range and the operator will beep if programming is successful
What safety devices are required and how should they be installed?
▼
To meet UL 325 requirements:
- A minimum of two independent entrapment protection devices are required for each entrapment zone.
- One of these may be the operator's built-in inherent sensing system.
- The second must be an external monitored device, such as a photo eye or monitored edge sensor.
- The same type of protection cannot be counted twice (for example, two inherent systems do not satisfy the requirement).
For a compliant installation, also:
- Mount all access controls at least 6 ft (1.8 m) from the moving gate so users cannot reach through or over the gate while operating it.
- Provide a separate pedestrian entrance; pedestrians should never use the vehicular gate.
- Install the supplied warning signs on both sides of the gate in clear view.
- Ensure exposed rollers are guarded and any hazardous openings in the gate are protected.
Why won’t the gate open when I use the remote or keypad?
▼
1. No power to the operator
2. Remote or keypad is not programmed
3. Dead remote battery
4. Wrong radio frequency or incompatible transmitter
5. Safety devices are preventing operation
6. Gate is in manual release mode
7. Travel limits have not been programmed
8. Gate is obstructed or binding
9. Access control wiring problem
If further troubleshooting is required, refer to the operator manual, or contact Gate Crafters' technical support.
Why does the gate stop, reverse, or behave unexpectedly during operation?
▼
1. An obstruction is detected
2. A monitored safety device is activated
3. The gate is binding or difficult to move
4. Travel limits are incorrect
5. Reversal force is set improperly
6. Low battery or inadequate power
7. Manual release not fully engaged
If the gate continues to stop or reverse after these checks, review the diagnostic code displayed on the control board. A full list of diagnostic codes can be found in the operator manual.
Can the RSL12UL be powered by solar, battery backup, or does it require AC power?
▼
The operator can be wired for either 120 Vac or a solar panel (not provided). Follow the directions according to your application. The battery is charged in the circuit by the integrated transformer. The operator requires one 7AH battery (provided) or one 33AH battery. A minimum of one 10W solar panel and maximum of three 10W solar panels in parallel is required for solar power.
Where can I find the manual, installation instructions, or technical support documentation for the RSL12UL?
▼
All documentation can be found on the Gate Crafters website as all information is available there. The manual can be found on the product page for the respective gate opener. Technical support is available on the Gate Crafters website from 9AM - 9PM ET 7 days a week by calling 813-792-9726.
What gate size and weight can the RSL12UL support?
▼
The max gate size the RSL12UL can support is 50 feet and the max gate weight the gate opener can handle is 800 lbs.
