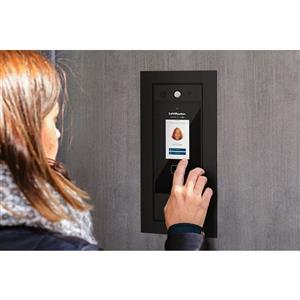

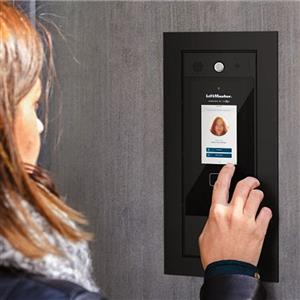

The LiftMaster CAPXM Smart Video Intercom - M is a modern, resident-facing access control solution designed to enhance security, convenience, and operational efficiency for multi-tenant communities. Built on the myQ Community cloud platform, this scalable system allows property managers to control and monitor multiple entry points including doors, gates, and garages from a single dashboard.
With an integrated wide-angle camera, high-definition touchscreen display, and advanced diagnostic capabilities, the CAPXM delivers a seamless and secure access experience. Residents can visually verify visitors and grant or deny access remotely using the myQ Community app, eliminating the need for physical keys while improving overall property security.
Gate Crafters offers more expert assistance than anyone.
If you need help deciding if this gate opener has the abilities that are right for your gate we have live application specialists available 9am - 9 pm EST 7 days a week or try our exclusive gate opener recommendation tool 24 hours/day.
Compatible with LiftMaster UL 325 Gate Operators (manufactured after October 2017)
Optional Compatible Accessories:
- CAP2D Smart Access 2-Door Controller
- LMSC1000 RFID Long Range Reader
- KPR2000 Keypad/Proximity Reader
- Passport remote controls (PPV3M, PPK3PHM, PPLK1-X)
- CAPXMTK Trim Kit
|
Integrated camera
- 135⁰ wide angle camera provides a view of access points through a live feed or recorded event through the myQ Community web platform
- Receive alerts and HD video recordings when an access event is triggered
- Night vision functionality for greater image quality in high and low light environments
- Climate performance includes extreme climate operating range of -20⁰ to 130⁰F
Engineering and diagnostic capabilities
- Fade resistant, high-definition color touch display
- Advanced self-diagnostics reduce downtime by troubleshooting and identifying when service is needed
- UL 294 listed for commercial settings
- Eliminates trenching with a wireless link to LiftMaster gate operators
Cloud-based security
- Two factor authentication protects and safe guards resident data
- Easily connects to myQ Community to manage multiple entry points and communities from a single dashboard
- Meets California Consumer Privacy Act(CCPA) requirements
|
myQ Community app
- Gives residents the ability to manage property access from their smartphone.
- Residents can safely identify guests and confidently grant/deny access from anywhere.
- Residents can “press to unlock” any authorized door/gate for themselves or visitors.
- Virtual guest / delivery passes can easily be sent for one-time or recurring use.
Customized system control
- Set schedules for the facility by person, time and location
- Six customizable program administration roles so each administrator has his/her own log-in with customizable management levels
- Configurable email notifications alert you to use of a suspended code, tell you when codes are overused or if service is needed for the Smart Video Intercom, Smart Controller or gate operator
|
Gate Crafters has the resources you need.
How do you use your gate opener system once you get it? Gate Crafters is the only retailer to give a real answer to this question. We have develop videos for installing many of our gate openers and products and write DIY focused manuals for most gate openers and have individual instructions for each accessory to be installed with each gate opener.
|
Construction
- 7”, 720p high-definition, fade-resistant touchscreen display with picture-in-picture
- Compatible Wiegand Input formats: 26 Bit, 30 Bit,37 Bit (HID), 37 Bit (Transcore), and 32 Bit (MiFare)
- No facility code limitations (1–256 for 26 Bit);“Ignore Facility Code” option available
- Postal Lock Provision
- UL 294 Listed
- 2 year warranty
- Mounting: surface, flush mount or pedestal mount (PED42, PED64)
Dimensions
- CAPXM: 17” x 6.125” x 4”
- CAPXMTK Two options: Standard Trim Kit (CAPXM flush mount):20.31”x 9.4” and Larger Trim Kit: 20.31”x 13.4”
Video
- Camera resolution: 1080p
- Frames per second: 25 FPS
- Directional Field of view: 135°
- Storage: up to 1000 events locally and in the cloud
- Phone.com service required for VoIP and videocalls (additional charges apply)
Voice
- DSP, clear, unparalleled audio communications in noisy environments
- VoIP phone service; calls 10-digit numbers
- Phone.com service required for VoIP(additional charges apply)
Power
- 24VDC, 60W (min.), class 2 output, Level VI efficiency,(power supply input 120VAC, 2A 50/60Hz)
- Power supply included)
Operating Temperatures
- -20°F to 130°F (-29°C to 54°C)
|
Built-In Security+ 2.0 Radio Onboard
- Integrated Passport Receiver with Security+ 2.0
Input Ports (2 Independent Doors of Control per CAPXM)
- 2 Wiegand Inputs
- 2 Request-to-Exit (REX) Inputs
- 2 Supervised Inputs
Outputs* (2 Independent Doors of Control per CAPXM)
- 2 Primary Relays and 2 Auxiliary Relays
- 12 VDC, 250mA power output for Wiegand devices
- 1 Wiegand (26 Bit) output for elevator or enterprise access control integration
- Controls 2 gates/doors; wirelessly link LiftMaster UL 325 gate operators, (mfd. after October 2017);no need to trench
- SPDT, Rated load 3 amps at 30VDC (each)
Codes & Capacities
- 4 to 8 digit entry codes; 4 to 6 digit directory codes
- 50,000 local user capacity per unit
- 50,000 local event history per unit
- Holiday and hold-open scheduling, including one-time and repeating exceptions
Communication
- Internet via wired Ethernet 10/100 (DHCP, static configuration), or Wi-Fi (DHCP configuration only)
- Cellular-based Internet not recommended for applications with video features
- Dedicated video bandwidth per CAPXM: Recommend a minimum upload bandwidth of 5Mbps. This upload speed should be met when considering usage of other devices on the network like cameras and computers.
Access Data Management
- myQ Community app subscription plan required per community
- 30 days video storage and additional myQ Community app licenses are powerful, optional add-ons
|
- CAPXM Smart Video Intercom
- 24VDC power supply
- Gasket Set
- (2) Keys
- Hardware
- Installation Manual
