Estate Swing 433 MHz Wireless 4-Channel Gate Opener Access Digital Keypad - Residential Housing

Please Select an Option:

Price: $76.99

Bookmark and Share

Chat with a live representative or Send us an email


Play Video
   Product Details

  • Compatibilities
  • Accessory Uses
  • Words from Senior Application Engineer
  • Accessory Features
  • Options
  • Product Media
  • Customer Photos

  •    Accessory Compatibilities Top of Page

    The Gate Crafters Wireless Stainless Steel Keypad is compatible with:

    Estate Swing: E-S 300*, E-S 302*, E-S 500*, E-S 502*, E-S 1100*, E-S 1102*, E-SC 1102*, E-S 1600*, E-S 1602*, E-SC 1600*, E-SC 1602*, E-SU 2200*, E-SU 2202*, E-S 450, E-SL 1200*, E-SL 1800*, E-SL 2000AC* (**when equipped with 433 mhz receiver shown below)
    Apollo: 1500*, 1600*, 1550*, 1650*, 3500ETL*, 3600ETL*, 7000UL*, 7500ETL*, BA-12* (**when equipped with 433 mhz receiver shown below)
    Other: Estate Swing 433 MHz Receiver wired into any other device.

    Note: If you use the transmitter seen at the top of related items to the left then this keypad WILL be compatible. If you use any other remote than the one to the left - you must verify you have the above receiver as part of your system. offers more expert assistance than anyone. We have live application specialists available 9am - 9 pm EST 7 days a week.

       Accessory Uses Top of Page

    The Estate Swing wireless 4 channel digital keypad is a must for every gate opener. It can hold 4 access codes - each of which sends a uniquely coded signal. This is important in that each code can independently control its own device or all 4 can control the same gate. Use the codes for family, friends, lawn services, deliveries, etc. Or use the codes for the gate, pedestrian gate, garage, or day time only access.

    Some possibilities are as follows:

    • Each Estate Swing receiver comes with two channels. The first channel is used by the gate opener to open and close the gate opener; the second channel is left free to wire to anything you may need. If you purchase a timer you could wire the second channel to the timer and have that channel only active for business hours. You can program one access code for triggering channel 1 and opening the gate all the time and program a second code to channel 2 to only allow access via that code during business hours.

    • If your garage is within 200 feet of your gate you could add an Estate Swing receiver to the garage door. Then you could program an access code for the gate and another for the garage door.

    • If you have a pedestrian gate with an electric pedestrian gate lock you could add an Estate Swing receiver to the lock kit. Then you would be able to release the lock through the same keypad as the gate opener.

    • Or you can simply program multiple codes to the receiver that comes with your Estate Swing. Keep one code for family that you know you will never have to change. And then use the other codes for deliveries or lawn services. If you have to change one of them your family members will not have to memorize a new access code.
    During night hours after a key is pressed the keypad becomes illuminated with a bright yet attractive blue led. The led will remain lit during the use of the keypad and then turn off to conserve battery power.

    An additional popular feature is the single digit secondary transmission. After an entry code is entered for approximately 20 seconds you can press any numerical key on the keypad and send a second signal. This is very useful in case you have to stop or reverse the gate because it is going to hit an obstacle.

    The residential keypad housing is made of a UV protected black ABS plastic. The residential version buttons are back-lit white upon pressing. The commercial keypad housing is made of hardened polymer and has a matte black finish. The commercial keypad is surface-lit by a blue LED light upon pressing a key. Both are designed to be easily mounted and blend well aesthetically to a keypad stand or be surface mounted to a column, fence or garage door frame. They are completely weatherproof and require no hood or cover from the elements. is the DIY factor. further adds to most of our gate openers for easier DIY installation. We have developed exclusive components (example: easy adjustable mounting brackets), customized instructions, and offer a full spectrum of accessories to truly cover all aspects of the installation of your gate opener. In addition we have the largest staff of factory trained technicians in the US.

       Accessory Features Top of Page

  • 4 Channel: Control up to four devices with a single keypad
  • Long range: 200+ foot wireless signal
  • Night Use: Keypad LED illuminates when numbers are pressed
  • Battery Powered: Requires a 9V battery, lithium battery recommended, not included
  • Secure (Commercial Version): Locked to mounting plate, requires specialized provided tool for removal
  • has the resources you need. How do you use your gate opener system once you get it? is the only retailer to give a real answer to this question. We have develop videos for installing many of our gate openers and products and write DIY focused manuals for most gate openers and have individual instructions for each accessory to be installed with each gate opener.

       Words from Senior Application Engineer, Anthony Gaeto Top of Page

    Estate Swing 433 MHz Wireless Residential Keypad
    Estate Swing 433 MHz Wireless Commercial Grade Keypad

    “The Estate Swing 433MHz 4-Channel keypad, comes with your choice of housing. This keypad has the capability to be learned wireless with an Estate Swing 433MHz receiver. The receiver has two separate channels built in. The first channel controls the opening and closing of your gate opener, and the second channel can be in conjunction with a timer to give codes that are only able to operate the gate opener during business hours or other time parameters. The residential housing features a ABS black plastic body that is UV protected, which will keep this keypad looking great for years to come. The keys on this keypad are lit by upper LED and will come on once a key is pressed. The commercial grade housing is made of all metal and features a stainless steel faceplate as well as stainless steel buttons.

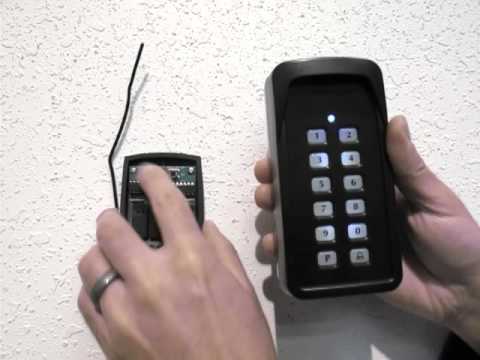

    This unit features a built in LED bulb that will illuminate the keys during use. One nice feature of the Estate Swing keypads, is the capability of being able to send a secondary digit transmission to the receiver. After you enter your entry code, you will be allowed to press a single numerical key to either stop or reverse your gate. This window lasts for 20 seconds for a secondary transmission. This is helpful in the case that someone enters the path of the driveway gate. If you need any help with the programming of your Estate Swing keypad, please watch this video or give us a call, send us a email, or use our live chat. Gate Crafters has experts standing by to help you out with any question you may have. We are available 7 days a week from 9 am to 9 pm, eastern time. We look forward to hearing from you”

       Customer Photos Top of Page

    433 Keypad on 3 Rail Gate

       Accessory Options Top of Page
    Add a keypad stand: Click here

    Add a timer: Click here

    Add a receiver: Click here has actual experience. We have a testing area, we have factory and internal training courses, we build gates and have our own gates that are automated, we attended all industry trade shows in multiple countries and are a member of the AFA, and we pay visits to our chosen manufacturers' factories. All these factors are what have lead to us having so many exclusive additions. When you see and actually use as many products as we have you tend to have many ideas for minor changes that have major impacts. We acted on these ideas and have utilized them to help thousands of customers automate their gates.

       Product Media Top of Page

    Manual: Residential Manual
    QB ID: ES-KP-R
