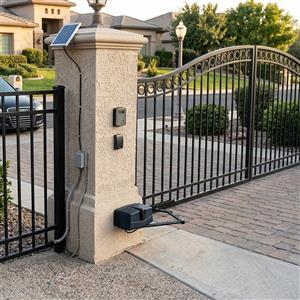

The Estate Swing E-SC 1600 is a specialized gate opener designed to give homeowners with columns, which are usually very difficult to mount a gate opener on, an easy alternative to the standard gate operator. Use the E-SC 1600 in a residential situation of up to 4 homes.

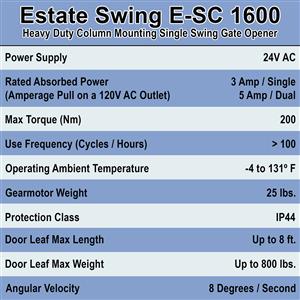

- Gate Materials: Wood, Steel, Aluminum, Vinyl, Chain Link, and others.
- Weight and length: Up to 16' in length or 800 lbs.
- Max degree of opening: 110 degrees
- Gate Post or Column size (pull to open): Max 24" x 24" column with the gate mounted in the center.
- Push to Open: No
- Solar Compatible: No
- Power: Low Voltage Transformer (included) and Backup Batteries (Optional, Not included)

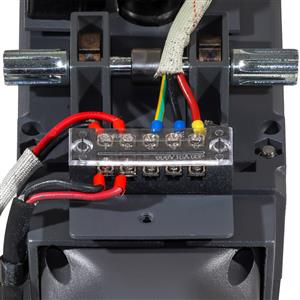

- Power Wire Specification: 16, 14, or 12 gauge wire (purchased separately). Length is determined by distance between transformer power supply and the control box.
- Operating Temperature: -4 to 131 F
- Warranty: 1 year electrical, 5 year component limited warranty
GateCrafters.com offers more expert assistance than anyone. If you need help deciding if this gate opener has the abilities that are right for your gate we have live application specialists available 9am - 9 pm EST 7 days a week or try our exclusive gate opener recommendation tool 24 hours/day.
Estate Swing E-SC 1600 Column Mounting Single Swing Gate Opener The Estate Swing gate opener is designed to be easy to install for the average handyman. Every unit comes standard with everything needed to automate your gate, including mounting brackets (hardware to affix brackets to column are not included but can be find at most local hardware stores). Included is Estate Swing's unique user directed instruction manual. Estate Swing, being closely involved with its customers, has created the first user driven updatable manual for continuous improvement of installation ease, maintenance and trouble shooting updates. Gate Crafters also brings DIY projects to a new level of simplicity with our 7-day/week technical support and 24/7/365 scheduled installation support. All Estate Swings are built to the highest standards world wide. Each unit is put through rigorous quality control testing on each component, which are all made and assembled in one factory. The Estate Swing E-SC 1600 exceeds vehicular gate safety standards. The Estate Swing E-SC 1600 Single Opener is a low voltage system, eliminating the need to run 110 AC to your gate. Simply run low voltage wire to a household outlet within 144' of the operator. The E-SC 1600 and E-S 1600 are the only two Constant Duty DIY gate openers on the market. What does this mean to you? These gate openers will run again and again without running a battery down. All other DIY gate openers run off of a battery and are trickle charged after a cycle is run to recharge that battery. If cycles are run off the battery faster then the power can charge it, then your gate opener runs the risk of being temporarily stuck closed. With the E-SC 1600 and the E-S 1600 the power for the cycles come directly from the 24V transformer plugged into a standard outlet; the batteries are strictly backup for power outages. Thus add another level of reliability and peace of mind. The Estate Swing E-SC 1600 is designed to be one of the safest gate openers available, perfect for families or individuals concerned with the welfare of others. The Estate Swing E-SC 1600 Single Opener has features never before seen or new to economically priced openers. This gate opener is designed to be used with gates mounted on larger columns. This opener works great with columns from 12" x 12" and up to 24" x 24". The articulating is key to this opener being compatible with larger columns. GateCrafters.com has the resources you need. How do you use your gate opener system once you get it? GateCrafters.com is the only retailer to give a real answer to this question. We have develop videos for installing many of our gate openers and products and write DIY focused manuals for most gate openers and have individual instructions for each accessory to be installed with each gate opener.
|
- Opening/Closing Soft Stop: Opening/Closing Soft Stop is a feature in which the control board, during the easy set up process, learns where your opening and closing points are for the swing of the gate. Then during normal operation the gate operator automatically slows the motion of the gate to smoothly meet with the gate's destination point.
- Large 24V Motor: The motor of the E-SC 1600 is one of the largest found on any residential gate opener. It is well equipped to handle gates up to 800 lbs., more weight than found in many heavily ornamented gates.

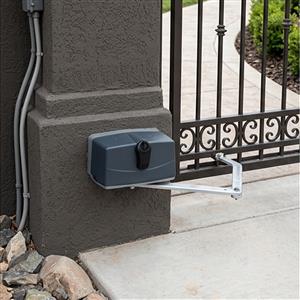

- Extended Setback: Most gate operators have a required setback for the rear pivot point on the post. This pivot point set back many times makes it difficult to mount on columns. The E-SC 1600 has an extended setback, allowing it to be mounted to most columns or posts. PLUS custom mounting brackets are available for purchase, taking the custom work out of your project and putting the works in our hands.
- Advanced Gear System: The gear system is one of the most important parts of a gate opener; it influences power, control, reliability, and the life span of the motor. The E-SC 1600 uses an advanced worm gear system cutting down on bearing wear and motor deterioration.
- All Weather Compatible: This arm can handle the cold, heat and everything in between.
- Single Person Limit Programming: Most gate openers require 2 people to set the limit switches. One person at the control board looking for a light to signal the limit is in place and a second person to adjust the limit switch to the proper location. The E-SC 1600 utilizes a audible tone to indicate when the limit switch is in the proper location. This allows for only one person to do the limit programming.
- Highest Level of Safety: The Estate Swing E-SC 1600 automatically reverses directions when it comes in contact with an obstruction. The Estate Swing E-SC 1600 also has the safest method of controlling safety devices. All safety devices are set up on a Normally Closed circuit. Some gate openers are set up on a normally open circuit. What this means is that the Estate Swing E-SC 1600 is virtually fail-safe. If a safety device does not activate for any reason the Estate Swing E-SC 1600 will not operate, keeping your loved ones and assets safe. Gate openers with safety devices set up on a Normally Open connection will operate with the disabled safety device and the consumer will not know the safety device is inactive until it is too late!
- Quick, Safe and Secure Manual Release: Every unit comes with a key chain ready manual release key. In the rare case power has failed and the back up battery is not charged, the manual release key can be used to safely open your gate without damaging your opener arm or disconnecting anything from your gate.
- Adjustable Performance Features: Adjust the performance of your gate opener to fit your tastes, lifestyle and needs. You can adjust Pause Times, Opening/Closing Delays, Static Force, etc.
- 24 Volt Output Terminals: Convenient for accessories requiring power. i.e. locks, sensors, etc.
- Easy Programming Control Board: The control board features a simple layout that is easy to wire and program.
|

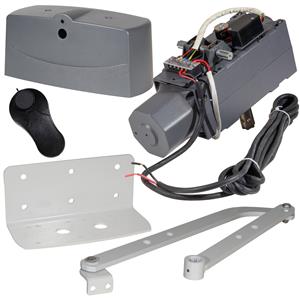

Control Box
Control Board
Operator Arm (with power cable)
Manual Release Key |
Low Voltage Transformer
433 MHz Receiver
433 MHz Transmitter

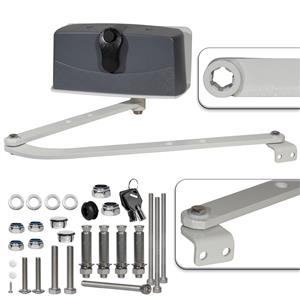

Adjustable Mounting Brackets (bolt on) |
Mounting Hardware
Instruction Manual
Public Warning Sign
Quick Color Check Wiring Diagram
Setback Cutout |
Estate Swing Gate Openers are specifically designed for DIY customers. Featuring easy bolt-on brackets and straightforward setback templates, Estate Swing allows any homeowner to effortlessly install and automate their gate. With just basic household tools required, no special expertise or building code approval is necessary*. |
For over a decade, Gate Crafters has been the premier source for Estate Swing openers and accessories, offering technical and installation support seven days a week from 9 AM to 9 PM EST. Our extensive experience ensures you receive the best guidance possible. By choosing to install your gate opener system yourself, you can save thousands of dollars over its lifespan. You'll also gain valuable knowledge about your installation and its operation, making troubleshooting and routine maintenance much simpler in the future. *Disclaimer: At this time, we do not have information regarding any necessary building code inspections for the installation of Estate Swing gate openers. Therefore, we cannot ensure that all counties will not require prior approval.
GateCrafters.com is the DIY factor. GateCrafters.com further adds to most of our gate openers for easier DIY installation. We have developed exclusive components (example: easy adjustable mounting brackets), customized instructions, and offer a full spectrum of accessories to truly cover all aspects of the installation of your gate opener. In addition we have the largest staff of factory trained technicians in the US.
- Order specific customized accessory wiring instructions
- 360 degree accessories - we can take you through exit, entry, safety, power, and all other minute details to create a fully rounded kit.
- Free 24/7/365 Installation Support
- Free 7 day/week Technical Support
- Largest Number of Certified Techs in America
- Free assistance to find the right gate opener for your gate
- Free systems design assistance to match the right accessories to fit your needs.
- Extremely competitive pricing
- Free shipping on all accessories purchased with a gate opener
- We stock replacement parts
- Many brands of many types of accessories, enough to handle just about any operational situation you can imagine
GateCrafters.com has actual experience. We have a testing area, we have factory and internal training courses, we build gates and have our own gates that are automated, we attended all industry trade shows in multiple countries and are a member of the AFA, and we pay visits to our chosen manufacturers' factories. All these factors are what have lead to us having so many exclusive additions. When you see and actually use as many products as we have you tend to have many ideas for minor changes that have major impacts. We acted on these ideas and have utilized them to help thousands of customers automate their gates.
The following tools and supplies are suggested in the manufacturer manual for optimal installation. They are not provided by Gate Crafters, however, most tools are available at local hardware stores for purchase or rental.
- Power Drill and appropriately sized bits
- Crescent Wrench
- Flat Head Screwdriver
- Nuts, Bolts, Anchors and Washers
- C-Ring Pliers
- Phillips Head Screwdriver
- Tape Measure
- Level
- Wire Strippers
- C-Clamps
- Carpenters Clamps
Please refer to the Installation Manual for Tools Needed. Depending on the type of gate, power supply and contributing environmental factors additional tools or supplies may be needed. Please review the product manual associated with this gate opener model for further details. |
Words from Senior Application Engineer Anthony Geato | Top of Page |
"Column mount are designed to work seamlessly with gate mounted onto larger square columns. These openers allow you to automate your gate while saving money during installation. Typically with larger columns you would have to cut a niche into the column to mount a traditional linear actuator or buy a expensive pad mount opener. However, with a column mount style you can achieve a simpler DIY installation.

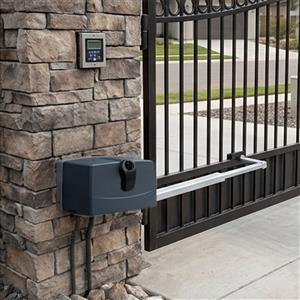

The Estate Swing E-SC 1600 single gate opener is designed for gates from 16 feet in length or 800 lbs. The unit attaches to the gate via an articulating arm that reaches back behind the corner of the column, making it possible for setbacks that are not available to most linear operators. A concern with older model articulating arms were pinch points, Estate Swing has now eliminated these.
One great feature of modern day openers is the soft close and soft start. This takes of wear and tear off your hinges and opener as the force of the gate is not coming to a drastic stop.
The Estate Swing E-SC 1600 also features simple to program limit switches. The control board will emit a audible noise when the limit switch is in the correct position. To adjust the limit switches is very easy on the E-SC 1600, simply loosen the cam lob on the top of the motor until the switch is activated.
Safety is always a top concern with Estate Swing. They have designed their system to be one the safest in the world. We at GateCrafters.com always recommend having external safety devices such as photo sensors installed on your opener to prevent damage or injury. The Estate Swing E-SC 1600, first, has an auto-reverse feature built in. Even if you do not decide to install any external safety devices, the Estate Swing E-SC 1600 will automatically reverse directions if it comes in contact with an obstruction. The top safety feature is how safety devices are wired on the Estate Swing E-SC 1600. Other gate openers have a flawed system; they are hooked up on a normally open circuit, which means if your safety device is not functioning properly it will not stop the movement of your gate. This can lead to disastrous results. The Estate Swing E-SC 1600 works on normally closed connections for safety devices. In most cases, if the safety device is not functioning properly, the normally closed connection will be open, the same as when there is a breach of the safety device, and the gate will not move.
The Estate Swing E-SC 1600 utilizes their classic control board. With its simple layout, it is a breeze to wire and install.
GateCrafters.com was selected as a Estate Swing partner because our profound commitment to customer service. Every member of our technical support staff has had direct training from the manufacturer. We are available 7 days a week for support, even during holidays, from 9 A.M to 9 P.M. Eastern time. Also we will make ourselves available to you after hours upon request for installation questions absolutely free. I believe every customer will find the support they need at GateCrafters.com and that is what has lead us to be the number one seller of gate openers in the world.
I stand behind the values of GateCrafters.com and would like to invite you to give us a try. You will find the service, knowledge and enthusiasm can't be beat; and the price will amaze you as well." |
