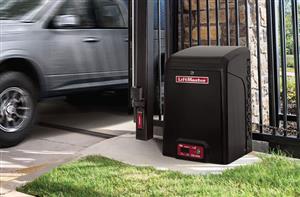

Lift Master CSL24UL High-Traffic Commercial Slide Gate Operator. Built to be reliable and capable of continuous duty operation. Designed for all commercial facilities with the ability of full control and insights by the use of myQ technology.
Smart Facility Access and my Q technology help improve warehouse efficiency and productivity.
- Gate Max Weight: 1,500 lbs
- Gate Max Length: 50 ft
- Solar Compatible: Yes, Solar-ready ultra-reliable system
- Power: 120/230V single-phase
- Battery Backup: 24VDC (two 12VDC batteries in series) (Included)
- Operating Temperature: -4°F (-20°C) 140°F (60°C) (Without Heater)
- Warranty: *7 years residential/ *5 years commercial
Liftmaster recommends professional installation and only supports products that are being installed or serviced by a professional installer. For installations that are purchased on Gatecrafters.com we can support installation, general troubleshooting, and warranty assistance directly.
|
|
|
|
|
GateCrafters.com offers more expert assistance than anyone. If you need help deciding if this gate opener has the abilities that are right for your gate we
have live application specialists available 9am - 9 pm EST 7 days a week or try our exclusive gate opener recommendation tool 24 hours/day.
|
|
|
|
|
|
|
The LiftMaster Elite Series model CSL24UL is engineered for a million cycles in high-cycle, heavy-duty applications. A Battery Backup System provides uninterrupted access when the power is out, and Security+ 2.0 technology virtually eliminates radio interference. It also features integrated MyQ technology and the industry's only standard wireless dual gate communication system. The CSL24UL is rated for gates 50 ft. long or 1,500 lbs.
Battery Backup System provides uninterrupted access when the power is out Provides up to 7 days or 100 cycles on battery backup.
The LiftMaster Elite CSL24UL opener is designed for professional installation only. Due to the nature of the 120VAC power, it is necessary to have a trained
professional, such as a certified electrician install the gate opener. GateCrafters.com does not consider the Elite series to be a DIY product.
Specifications
Gate Max Length: 50 ft
Materials: Chassis constructed with 1/4 inch black powder-coated steel for rust prevention
Mechanics: 24VDC continuous duty; Commercial oil-bath gearbox provides 10:1 wormgear reduction
Operator Duty Rating: high-cycle, high-temperature continuous duty
Minimum Gate Travel Distance: 4 Feet
Maximum Gate Travel Distance: 50 Feet
Maximum Gate Travel Speed: 1 Foot/ Second
Maximum Daily Cycle Rate: Continuous
Maximum Duty Cycle: Continuous
Solar Compatible: Solar-ready ultra-reliable system
Solar Power Max: 24VDC at 60 Watts
Power: 120/230V single-phase
Battery Backup: 24VDC (two 12VDC batteries in series) (Included)
Operating Temperature: -4°F (-20°C) – 140°F (60°C) (Without Heater)
UL Usage Classification: I, II, III, and IV
Operator Weight: 140 lbs
Dimensions: (Chassis) 15.6'' W x 25.1'' H x 19.5'' D
Warranty: *7 years residential/ *5 years commercial
|
(1) CSL24UL Operator & Cover
(1) Battery Tray
(2) Battery 12 VDC (7AH)
(2) Keys
(1) LiftMaster Monitored Retro-Reflective Photoelectric Sensor (LMRRUL)(1) LiftMaster Monitored Resistive Edge
(1) Actuator Bolt Kit
(1) Document Packet
(1) Chain #41 (30 feet)
(1) Eye Bolt Kit
(2) Warning Signs and Warranty Card
|
- Order specific customized accessory wiring instructions
- 360 degree accessories - we can take you through exit, entry, safety, power, and all other minute details to create a fully rounded kit.
- Free 24/7/365 Installation Support
- Free 7 day/week Technical Support
- Largest Number of Certified Techs in America
- Free assistance to find the right gate opener for your gate
- Free systems design assistance to match the right accessories to fit your needs.
- Extremely competitive pricing
- Free shipping on all accessories purchased with a gate opener
- We stock replacement parts
- Many brands of many types of accessories, enough to handle just about any operational situation you can imagine
|
|
|
|
|
|
GateCrafters.com has actual experience. We have a testing area, we have factory and internal training courses, we build gates and have our own gates that
are automated, we attended all industry trade shows in multiple countries and are a member of the AFA, and we pay visits to our chosen manufacturers' factories. All
these factors are what have lead to us having so many exclusive additions. When you see and actually use as many products as we have you tend to have many ideas
for minor changes that have major impacts. We acted on these ideas and have utilized them to help thousands of customers automate their gates.
|
|
|
|
|
|
|
|
|
The following tools and supplies are suggested in the manufacturer manual for optimal installation. They are not provided by GateCrafters, however, most tools
are available at local hardware stores for purchase or rental.
- Please refer to manual for Tools Needed.
Depending on the type of gate, power supply and contributing environmental factors additional tools or supplies may be needed. Please review the product manual associated with this gate opener model for further details.
|
|
Words from Senior Application Engineer, Anthony Geato
|
Top of Page
|
Liftmaster/Chamberlian's domestic operations are located in Elmhurst, IL and maintains a wide reaching branch of international offices. Its manufacturing has been in
Mexico for more than 20 years. In business for over 100 years this company is well known for its garage door, gate operators and other access oriented innovations.
|
Manual: LiftMaster CSL24UL Installation Manual
