The LiftMaster Smart Video Intercom - S is a modern smart access solution designed for small multi-tenant buildings and single-family gated homes. Featuring an integrated 135° wide-angle HD camera, intuitive touchscreen display, and built-in night vision, the system allows residents to safely view visitors through live video feeds or recorded events before granting or denying access. With the myQ Community app, residents can remotely unlock doors, send virtual guest passes, receive visitor notifications, and even use Siri voice commands for convenient property access.
Built with integrated myQ Mobile Credentials and cloud-based security, the Smart Video Intercom - S enables residents to use their smartphones as secure all-access credentials without the need for key fobs, cards, or PIN codes. Property managers can remotely manage access permissions, create schedules, monitor activity, and receive system alerts through the myQ Community web platform. Advanced self-diagnostics, weather-resistant construction, and UL 294 commercial listing make this intercom a reliable and secure solution for modern residential properties.
Gate Crafters offers more expert assistance than anyone.
If you need help deciding if this gate opener has the abilities that are right for your gate we have live application specialists available 9am - 9 pm EST 7 days a week or try our exclusive gate opener recommendation tool 24 hours/day.
Compatible with Gate Operators with a standard relay input and myQ Connectivity.
Optional Compatible Accessories:
- CAP2D Smart Access 2-Door Controller
- CAPXSHOOD Hood for CAPXS
- SRDRST/SRDRKP Smart Readers

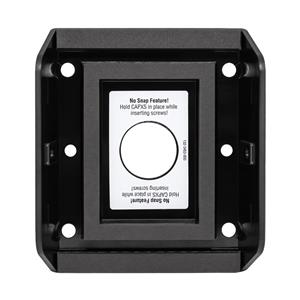

- CAPXSGNB Pedestal Bracket
- CAPXSTKPL/CAPXSTK Trim Plates for CAPXS
|
myQ Community App
- Gives residents the ability to manage property
access from their smartphone
- Residents can safely identify guests and
confidently grant/deny access from anywhere
- With myQ Mobile Credentials, residents receive
ultra-secure, encrypted access—using their smartphone and the myQ Community App as an all-access pass to get around the building
- Climate performance includes extreme climate operating range of -20⁰ to 130⁰F
Engineering and diagnostic capabilities
- Fade resistant, high-definition color touch display
- Advanced self-diagnostics reduce downtime by troubleshooting and identifying when service is needed
- UL 294 listed for commercial settings
- Eliminates trenching with a wireless link to LiftMaster gate operators
Cloud-based security
- Two factor authentication protects and safe guards resident data
- Easily connects to myQ Community to manage multiple entry points and communities from a single dashboard
- Meets California Consumer Privacy Act (CCPA) requirements
|
myQ Community app
- Gives residents the ability to manage property access from their smartphone.
- Residents can safely identify guests and confidently grant/deny access from anywhere.
- Residents can “press to unlock” any authorized door/gate for themselves or visitors.
- Virtual guest / delivery passes can easily be sent for one-time or recurring use.
Customized system control
- Set schedules for the facility by person, time and location
- Six customizable program administration roles so each administrator has his/her own log-in with customizable management levels
- Configurable email notifications alert you to use of a suspended code, tell you when codes are overused or if service is needed for the Smart Video Intercom, Smart Controller or gate operator
|
Gate Crafters has the resources you need.
How do you use your gate opener system once you get it? Gate Crafters is the only retailer to give a real answer to this question. We have develop videos for installing many of our gate openers and products and write DIY focused manuals for most gate openers and have individual instructions for each accessory to be installed with each gate opener.
|
Construction
- 5” 720p high-definition, fade-resistant touchscreen display with picture-in-picture
- Polycarbonate enclosure with IP54 weatherproof rating and IK07 impact rating
- Compatible with Wiegand input formats: 26 Bit, 30 Bit, 37 Bit (HID), 36 Bit (LiftMaster), 37 Bit (Transcore), 32 Bit (MiFare), and 56 Bit LiftMaster Smart
- No facility code limitations (1-256 for 26 Bit) with “Ignore Facility Code” option available
- Postal lock provision available with separate accessory
- UL 294® Listed
- 2-year warranty
- Surface mount installation with Single Gang box compatibility
Dimensions
- CAPXS: 8” x 4” x 2”
- CAPXSTKPL Trim Plate with Postal Lock: 14” x 6.5” x 1.4”
- CAPXSTK Trim Plate without Postal Lock: 11.1” x 6.5” x 0.4”
- CAPXSHOOD Hood: 6.2” x 4.8” x 4.2”
- CAPXSGNB Pedestal Mount Bracket
Video
- 1080p camera resolution
- 25 FPS video recording
- 135° directional field of view
- Stores up to 1,000 events locally and in the cloud
- Phone.com® service required for VoIP and video calls (additional charges apply)
Voice
- DSP audio provides clear communication in noisy environments
- VoIP phone service supports 10-digit dialing
- Phone.com® service required for VoIP features (additional charges apply)
Included Power Supply Ratings
- Input: 120 VAC, 60Hz, 1A max
- Output: 16 VDC, 2.5A, 40W
- CAPXS DC input rating: 16 VDC, 10W max
|
Operating Temperature
- -4°F to 122°F (-20°C to 50°C)
Input Ports
- 1 Wiegand input (supports data lines only, no LEDs)
- 1 Request-to-Exit (REX) input
- 1 supervised input
- 1 postal lock input
Outputs
- 1 primary relay and 1 auxiliary relay
- Controls 1 gate or door
- SPDT rated load: 12 VDC, 10 AMP each
Codes & Capacities
- Supports 4 to 8 digit entry codes
- Supports 4 to 6 digit directory codes
- 500 local users per unit
- 3,000 local event history capacity per unit
- Holiday and hold-open scheduling with one-time and repeating exceptions
Communication
- Internet connectivity via wired Ethernet 10/100 or Wi-Fi
- Supports DHCP and static Ethernet configuration
- Wi-Fi supports DHCP configuration only
- Built-in myQ mobile credentials via BLE
- Cellular Internet not recommended for video applications
- Recommended minimum upload bandwidth: 5 Mbps per CAPXS
Included
- CAPXS unit
- 16VDC power supply
- 2 Torx screws
- Manual
Access Data Management
- myQ Community Control subscription plan required per property
- Optional add-ons include 30-day video storage and additional myQ Community app licenses
|
- CAPXS Smart Video Intercom - S
- Power Supply
- (2) Torx Screw
- Installation Manual
For over a decade, Gate Crafters has been the premier online retailer of gate openers and accessories. With our extensive technical and installation expertise, we are authorized to serve the DIY market. We believe customers should have the opportunity to take pride in their projects, whether installing or troubleshooting a gate opener. Everyone deserves the option to enjoy high-quality products without the need to hire help.
At Gate Crafters, we empower you to install confidently by providing access to our trained technical staff seven days a week from 9 AM to 9 PM EST. By choosing to DIY your gate opener system, you can save thousands of dollars over its lifetime while gaining valuable knowledge about your installation and how the system operates. This understanding will make it easier to troubleshoot any issues and perform routine maintenance in the future.
Gate Crafters is the DIY factor.
Gate Crafters further adds to most of our gate openers for easier DIY installation. We have developed exclusive components (example: easy adjustable mounting brackets), customized instructions, and offer a full spectrum of accessories to truly cover all aspects of the installation of your gate opener. In addition we have the largest staff of factory trained technicians in the US.
- Order specific customized accessory wiring instructions
- 360 degree accessories - we can take you through exit, entry, safety, power, and all other minute details to create a fully rounded kit.
- Free 24/7/365 Installation Support
- Free 7 day/week Technical Support
- Largest Number of Certified Techs in America
- Free assistance to find the right gate opener for your gate
- Free systems design assistance to match the right accessories to fit your needs.
- Extremely competitive pricing
- Free shipping on all accessories purchased with a gate opener
- We stock replacement parts
- Many brands of many types of accessories, enough to handle just about any operational situation you can imagine
Gate Crafters has actual experience.
We have a testing area, we have factory and internal training courses, we build gates and have our own gates that are automated, we attended all industry trade shows in multiple countries and are a member of the AFA, and we pay visits to our chosen manufacturers' factories. All these factors are what have lead to us having so many exclusive additions. When you see and actually use as many products as we have you tend to have many ideas for minor changes that have major impacts. We acted on these ideas and have utilized them to help thousands of customers automate their gates.
The following tools and supplies are suggested in the manufacturer manual for optimal installation. They are not provided by Gate Crafters, however, most tools are available at local hardware stores for purchase or rental.
- PH2 Philips Screwdriver
- 1/8" Flat or PH0 Phillips Screwdriver
- T20 Torx Driver/Bit
Please refer to the Installation Manual for Tools Needed.
Depending on the type of gate, power supply and contributing environmental factors additional tools or supplies may be needed. Please review the product manual associated with this gate opener model for further details.
