GTO / Linear Pro SW3002XLS Dual Swing Gate Opener w/ Free Extra Remote (PRO-SW3002XLS) - W/ AC

Price: $1,498.99
Free Shipping for Limited Time! Quantity:

bookmark this pageSave this page

Chat with a live representative or Send us an email



   Product Details
  • Gate Opener At a Glance
  • Gate Opener Description
  • Gate Opener Features
  • Included with Gate Opener from Manufacturer
  • Gate Exclusive Product & DIY Additions
  • Tools & Supplies for Installation
  • Words from Senior Application Engineer
  • Customer Installations
  • Customer Testimonials
  • Factory Visit Updates
  • Product Media

  •    Gate Opener At a Glance Top of Page
    Award The GTO/PRO SW3002XLS is the easy to install smaller size of the two heavier duty gate openers made by GTO, inc.
    • Gate Materials: Wood, Steel, Aluminum, Vinyl, Chain Link, and others.
    • Weight and length:Up to 16 ft. in length OR 650 lbs per leaf.
    • Max degree of opening: 110 degrees

      GTO/Linear Access Pro 2000XLS Gate Capacity Chart.

    • Gate Post or Column size (pull to open): Max 8" x 8" post or gate mounted 4" from the rear face of a column.
    • Push to Open: Yes (bracket purchased separately) - setback above does not apply to push to open.
    • Solar Compatible: Yes, browse our solar panels (purchased separately).
    • Power: Battery (Included) and Low Voltage Trickle Charge (Included)
    • Power Wire Specification: 16 gauge wire (purchased separately) with 1,000 foot max length from transformer to control board.
    • Warranty:2-year manufacturer control board/ 2-year component manufacturer warranty.
    • (Click Here for Warranty Pros and Cons)

    GTO Award Baner
    top left top right offers more expert assistance than anyone. If you need help deciding if this gate opener has the abilities that are right for your gate we have live application specialists available 9am - 9 pm EST 7 days a week or try our exclusive gate opener recommendation tool 24 hours/day.
    bottom left bottom right

       Gate Opener Description Top of Page

    An exciting time in the world of gate openers. GTO/PRO has rereleased their PRO-SW3000XL series of gate openers as the PRO-SW3000XLS series. The XLS series has a number of improvements over its predecessor including a 10% increase in the operating speed. The XLS series also contains a new rev-counter board with reed switch technology, which helps the gate opener determine its position. In addition, the XLS series includes an improved front mount and scraper seal design. Unfortunately, the new XLS series control boards and arms are not cross compatable with the XL series. So, if you purchase an XLS arm for your XL control board, they will not work together.

    The PRO SW3002XLS Dual Swing Opener can be used in most residential applications including automating gates made of farm tubing, steel, aluminum, wood, and chain link, along with many other gate types. This opener can be set on the left or right and is used in the standard pull-to-open operation. By using the push-to-open bracket accessory the PRO SW3002 can be used to push the gate open away from the property with the arms still mounted on the inside. If using a round post angle iron can be used to extend the rear face of the post to accommodate the mounting bracket (available from in the related items to the left).

    The PRO SW3002XLS Dual Swing Opener is a low voltage system, eliminating the need to run 110 AC to your gate. Simply run 16-gauge low voltage to a household outlet within 1000' of the operator or use a solar panel.

    The PRO SW3002XLS Dual Swing Opener is made with longevity and compatibility in mind. It can be used with GTO inc.'s complete line of accessories including keypads, transmitters, exit wands, gate locks, solar panels, and more.

    top left top right is the DIY factor. further adds to most of our gate openers for easier DIY installation. We have developed exclusive components (example: easy adjustable mounting brackets), customized instructions, and offer a full spectrum of accessories to truly cover all aspects of the installation of your gate opener. In addition we have the largest staff of factory trained technicians in the US.
    bottom left bottom right

       Gate Opener Features Top of Page

    • Soft Start/Soft Stop - Soft start/soft stop is a feature in which the control board, during the set up process, learns where your opening and closing points are for the swing of the gate. Then during normal operation the gate operator automatically slows the motion of the gate to smoothly meet with the gates destination point. This feature can also be turned off.
    • Closing Timer - Set your gate to close between 0 and 100 seconds after reaching the full open position or turn this option off to leave it open until an entry device activates closing motion.
    • Learn Mode - With the GTO/PRO 3002XLS Swing Gate Opener the learning process, the end points are determined by the user via remote. A simple press of the transmitter tells the opener where to stop and when the opener is set to the desired stop points, save the settings on the board.
    • Oversized Control Box Housing - The GTO/PRO 3000XLS oversized control box can house (2) 7 amp/hour batteries and is rated for outdoor use (only one is included with purchase). It is resistant to high winds, sand, dust, rain, snow, sleet, and freezing water, protecting your valuable control board from the elements and your battery from corrosion.

    top left top right has the resources you need. How do you use your gate opener system once you get it? is the only retailer to give a real answer to this question. We have develop videos for installing many of our gate openers and products and write DIY focused manuals for most gate openers and have individual instructions for each accessory to be installed with each gate opener.
    bottom left bottom right

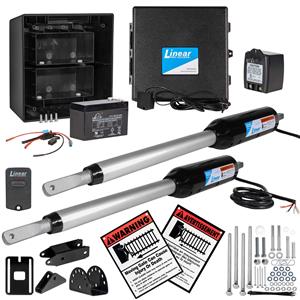

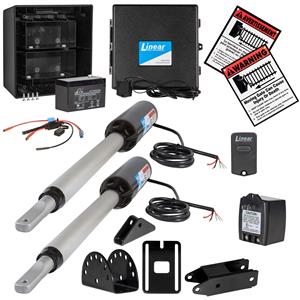

       Included with Gate Opener from Manufacturer Top of Page
    • NEW: rev-counter board with reed switch technology
    • IMPROVED front mount and scraper seal design
    • 12 Volt DC/7.0 amp hour, sealed, rechargeable battery
    • One button auto-memorization of digital transmitter code

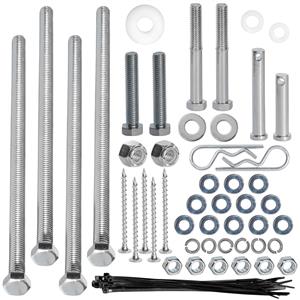

    • Mounting Hardware for a post mounted installation
    • AC Transformer
    • Operator Arm
    • 318 MHz RF radio reciver
    • Entry transmitter

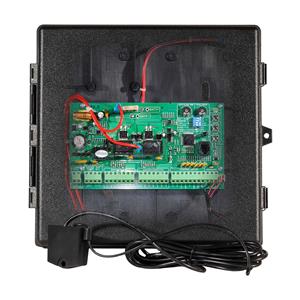

    • Control Box and Control Board
    • UL325 Certified
    • Spanish/English Manual
    Parts Included
       Tools & Supplies for Installation Top of Page

    The following tools and supplies are suggested in the manufacturer manual for optimal installation. They are not provided by GateCrafters, however, most tools are available at local hardware stores for purchase or rental.

    • Power Drill
    • Open End Wrenches - 3/8", 7/16", 1/2" and 9/16"
    • 3/8" Drill Bit
    • Pliers
    • Hacksaw or Heavy Duty Bolt Cutters
    • Small (Flat Bladed) Screwdriver
    • Phillips Head Screwdriver
    • Tape Measure
    • Level
    • Wire Strippers
    • C-Clamps - small, medium, and large
    • Center Punch
    • Adjustable Wrench
    • An extra person will be helpful

    Depending on the type of gate, power supply and contributing environmental factors additional tools or supplies may be needed. Please review the product manual associated with this gate opener model for further details.
       Words from Senior Application Engineer, Anthony Gaeto Top of Page
    Anthony Gaeto Application Engineer "The PRO SW3002 is GTO's workhorse and a top selling product in their product line. GTO inc.'s PRO 1000 and 2000 have been widely used for over a decade with a dedication to dependability and quality. Now they are reflecting that same commitment on the new line of professional openers.

    Featuring true soft start and stop, the PRO SW3002 helps to preserve the life of the gate and opener arm itself. When your gate approaches its endpoints the opener will slow the momentum of the gate.

    Another advantage of the PRO SW3002 is the oversized control box. GTO listened attentively to the wishes of their installers and answered with their new design. Installers many times wish to use an extra battery for larger number of cycles, extra power storage for solar, or battery assistance in extreme cold weather. The new control box design has an extra storage space built in for a second battery (not included).

    With GTO products you get factory support during business hours. When purchased through however, you get installation or technical support 9am - 9pm 7 days / week. Gate Crafters has years of experience with GTO inc. openers as well as many other brands and accessories and is readily available 7 days a week. is dedicated to getting the right gate opener for your gate. As more gate openers are being made economically feasible and easy to maintain, the selection is going to grow ever wider. That's where comes in. We have extensive amounts of educational material on our website to help you become an informed consumer. We also have our factory-trained representatives standing by to answer all your gate and gate opener questions. The combination of our customers passion for home improvement and's wealth of knowledge is a perfect match and cannot be duplicated."

       Factory Visit Updates Top of Page
    As part of one of's constant quality checks and knowledge updates. I personally go to visit the factories in which the products we sell are made. I made 6 visits to the GTO Inc. US facility, most recently in Februrary 2009. My visits accumulated a considerable period of time visiting because they were not only to tour the facility and meet employees, but also for authorized factory training. During training I received a certificate (Click here to view) and a score of 100% on the Factory Certified training exam.
       Customer Installations Top of Page
    Multimeter All submissions receive a FREE Multimeter.
    Email them to
    Click Images Below to View Larger and Learn More
    SW3002 SW3000 SW3000

       Customer Testimonials Top of Page
    Be the first to write a testimonial for this product. Please send them to
       Product Media Top of Page

    How to Trench Under Your Driveway to Install Wires

    Manual: 3002XLS Dual Gate Opener Manual
