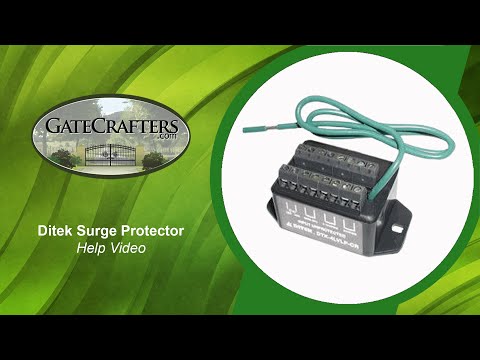

Ditek Control Board Surge Protector (DTK-4LVLP-CR)



Price:$45.62
Quantity:



Bookmark and Share

Chat with a live representative or Send us an email

1-800-537-4283







   Product Details

  • Compatibilities
  • Accessory Uses
  • Product Media
  • Accessory Features
  • Options

  •    Accessory Compatibilities Top of Page

    The Ditek Control Board Surge Protector (DTK-4LVLP-CR) is compatible with:
    • GTO: SW2000XL, SW2002XL, SW2500, SW2502, SW3000XL, SW3002XL, SW4000XL, SW4002XL, GPSW050, GPSW100, GPSW052, GPSW102, SL1000, SL1002, SL2000, SL2002, GPSL050, GPSL052, GPSL100, GPSL102, old Pro 1000/1002 & 2000/2002

    • Mighty Mule: FM 200, FM350, FM352, FM500, FM502, old FM700 & FM702

    • Estate Swing: E-S 300, E-S 302, E-S 500, E-S 502, E-S 1100, E-S 1102, E-SC 1102, E-S 1600, E-S 1602, E-SC 1600, E-SC 1602, E-SU 2200, E-SU 2202, E-S 450, E-SL 1200, E-SL 1800, E-SL 2000AC

    • Apollo: 1500, 1600, 1550, 1650, 3500ETL, 3600ETL, 7000UL, 7500ETL, BA-12

    • Zareba: G450, G452, G550, G552, G750, G752

    • Most other gate openers
    GateCrafters.com offers more expert assistance than anyone. We have live application specialists available 9am - 9 pm EST 7 days a week.

       Accessory Uses Top of Page

    Surge suppression is the single largest regret for gate opener customers who have a board destroyed by some seemingly insignificant power surge. Nothing can stop a direct lightning strike but small surges happen all the time. The two largest sources are residual energy from lightning nearby and power overages when the power company restores power after an outage.

    This surge suppressor interrupts those surges right before they reach the control board. The surge suppressor has the capabilities for the following:

  • Protect 1) 24V input or output terminal
  • Protect 1) 12V input or output terminal
  • Protect 1) accessory terminal & ground - can have as many parallel accessories leading to that terminal as needed)
  • If you have a gate opener and one or more accessories that connect to the same terminal and that don't have power run from the opener or the power leads straight from the battery of the opener - you only need one of these.

    If you have a gate opener and accessories that are powered from the control board you will need two of these. Or if you have two accessories that lead to two different terminals you will also need two of these.

    GateCrafters.com is the DIY factor. GateCrafters.com further adds to most of our gate openers for easier DIY installation. We have developed exclusive components (example: easy adjustable mounting brackets), customized instructions, and offer a full spectrum of accessories to truly cover all aspects of the installation of your gate opener. In addition we have the largest staff of factory trained technicians in the US.

       Accessory Features Top of Page

  • Connection Method: Screw terminal (#22 - #16 awg)
  • Max. Surge Current: Power - 2,000 Amps
  • Telco - 9000 Amps
  • Data / LED - 500 Amps
  • Protection Modes: L-G (All)
  • Ten Year Manufacturer Warranty
  • Dimensions: 2.90" x 1.62" x 1.58" Weight: 0.25 lbs. Housing: ABS
  • GateCrafters.com has the resources you need. How do you use your gate opener system once you get it? GateCrafters.com is the only retailer to give a real answer to this question. We have develop videos for installing many of our gate openers and products and write DIY focused manuals for most gate openers and have individual instructions for each accessory to be installed with each gate opener.

       Accessory Options Top of Page
    Single version

    GateCrafters.com has actual experience. We have a testing area, we have factory and internal training courses, we build gates and have our own gates that are automated, we attended all industry trade shows in multiple countries and are a member of the AFA, and we pay visits to our chosen manufacturers' factories. All these factors are what have lead to us having so many exclusive additions. When you see and actually use as many products as we have you tend to have many ideas for minor changes that have major impacts. We acted on these ideas and have utilized them to help thousands of customers automate their gates.

       Product Media Top of Page


    Manual: DITEK Surge Protector Manual
    QB ID: DTK-4LVLP-CR
