Estate Swing Gate Openers, Accessories and Parts


Estate Swing Gate Operator Feature Chart

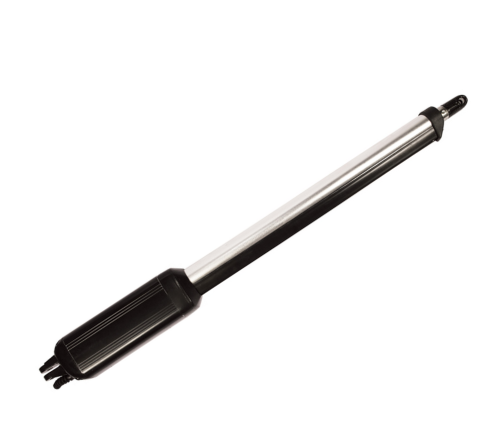

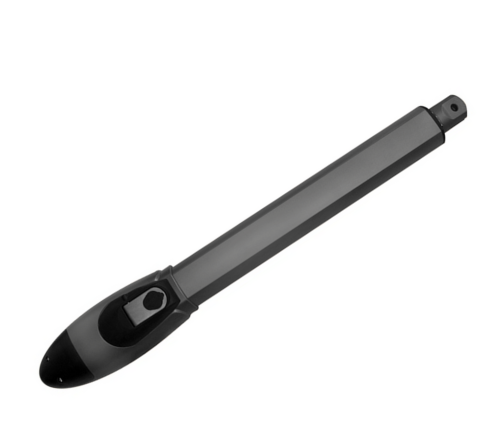

E-S-1000D E-S-1000H E-SL-450BD E-SL-1800 E-S-1600 E-S-1600L E-SC-1600
Features Residential Commercial
Model Number E-S 1000D E-S 1000H E-SL 450BD E-SL 1800 E-S 1600 E-S 1600L E-SC 1600
Description 12VDC Residential Solar Gate Operator 12VDC Residential Solar Gate Operator 24VDC Residential Slide Gate Operator 24VDC Residential Slide Gate Operator 24VDC Residential & Commercial Gate Operator 24VDC Residential & Commercial Gate Operator 24VDC Residential & Commercial Column Mount
Operator Type Swing Swing Slide Slide Swing Swing Swing
Power Supply 115 VAC
12VDC		 115 VAC
12VDC		 115VAC
24VDC		 115VAC
24VDC		 115VAC
24VDC		 115VAC
24VDC		 110VAC
24VDC
Current (A) 3 3 3 3 3 3 3
Cycles per Hour 50% Duty Cycle
Approx. 35/hr		 50% Duty Cycle
Approx. 35/hr		 Approx. 25/hr Approx. 18/hr Continuous Duty
Approx. 75/hr		 Continuous Duty
Approx. 75/hr		 Continuous Duty
Approx. 100/hr
Operating Temperature 0 to 110°F 0 to 110°F -4 to 124°F -4 to 131°F -4 to 131°F -4 to 131°F -4 to 131°F
Max. Gate Weight 600 lbs. 800 lbs. 450 lbs. 800 lbs. 800 lbs. 1,000 lbs. 600 lbs.
Max. Gate Length 12 ft. 16 ft. 14 - 20 ft. 15 ft. 14 ft. 20 ft. 16 ft.
Solar Compatible Yes
Max. 30W		 Yes
Max. 30W		 No No No No No
Protection Class IP44 IP44 IP44 IP44 IP44 IP44 IP44
Max. Degree 110° 110° x x 110° 110° 100°
Max. Remote Control Range 300 ft. 300 ft. 300 ft. 300 ft. 300 ft. 300 ft. 300 ft.
Wire Specification 16 Gauge + 16 Gauge + 16 Gauge + 16 Gauge + 16 Gauge + 16 Gauge + 16 Gauge +
Limited Warranty 5 Year Mechanical
1 Year Electrical		 5 Year Mechanical
1 Year Electrical		 5 Year Mechanical
1 Year Electrical		 5 Year Mechanical
1 Year Electrical		 5 Year Mechanical
1 Year Electrical		 5 Year Mechanical
1 Year Electrical		 5 Year Mechanical
1 Year Electrical

Gate Crafters is the only company that makes an Estate Swing opener truly DIY

Estate Swing Warranty

Estate Swing is the only brand that we carry that gives its retailers the leeway to process the warranties with the manufacturer only being remotely involved through pictures and phone. All other manufacturers have to be involved in direct contact with the troubleshooting and must have the product returned to them prior to warranty fulfillment. This has been a highly sought after convenience and allows the renowned Gate Crafters support team to truly shine.

Special Applications

The Estate Swing brand was created to bring DIY solutions to gates that previously had no solutions from the other brands on the market. Estate Swing offers 24V direct power systems, while all other DIY openers require a battery which can pose problems in the cold or with heavily used gates. Estate Swing offers solar openers with a virtually non-existent sleep draw and a large metal box for over-sized deep cycle batteries. Estate Swing offers gate openers for mounting on a concrete column instead of a steel post. Estate Swing is the only solution for the DIY customer to automate like a pro!
