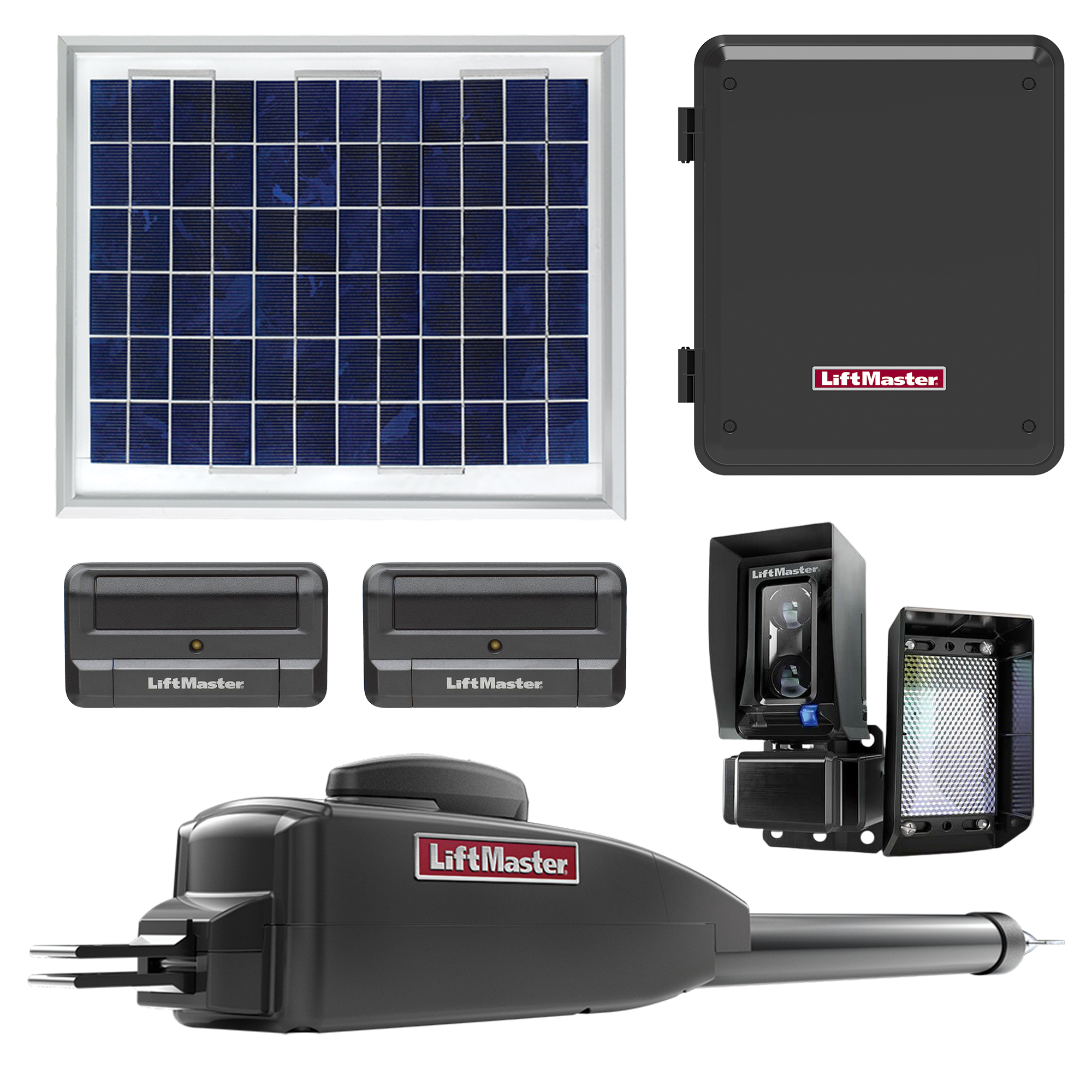

LiftMaster LA412 vs. LA400 - Choosing the Best Solar Swing Gate Opener

Both the LiftMaster LA412 and LA400 with a solar kit are designed for swing gate automation, but when it comes to solar applications, the LA412 is the better choice. Here's a breakdown of why the LA412 is more efficient and reliable in solar-powered setups:

1. Designed from the Ground Up for Solar

• LA412 is natively solar-powered — it’s engineered specifically for off-grid use. All components, from the control board to the actuator, are optimized for low power draw, extending battery life and increasing reliability.
• In contrast, the LA400 is an AC-powered model that is adapted for solar via an add-on kit. This retrofitting is less efficient than native solar design.

2. Superior Power Management

• The LA412 control board (LA412D) includes advanced energy management features tailored for solar systems, such as:

• Sleep modes to reduce idle power draw
• Efficient battery charging algorithm
• Built-in solar charge controller

• The LA400 with solar kit uses a modified control logic that lacks these fine-tuned power conservation settings, which can result in shorter battery life and less gate cycles per day.

3. Lighter Duty Cycle = Better for Low Solar Input

• The LA412 is optimized for residential or light-duty rural installations where solar panel exposure may vary.
• The LA400 can support heavier gates and more frequent cycles — but that means higher energy consumption, which isn't ideal for limited solar input, especially during cloudy days or in shaded areas.

4. More Efficient Actuator Motor

• The LA412 actuator is specifically engineered with a low-voltage, high-efficiency motor.
• The LA400’s actuator draws more amperage per cycle because it's built for heavier, high-cycle gates — a disadvantage in solar setups where power conservation is key.

5. Integrated Battery Compartment

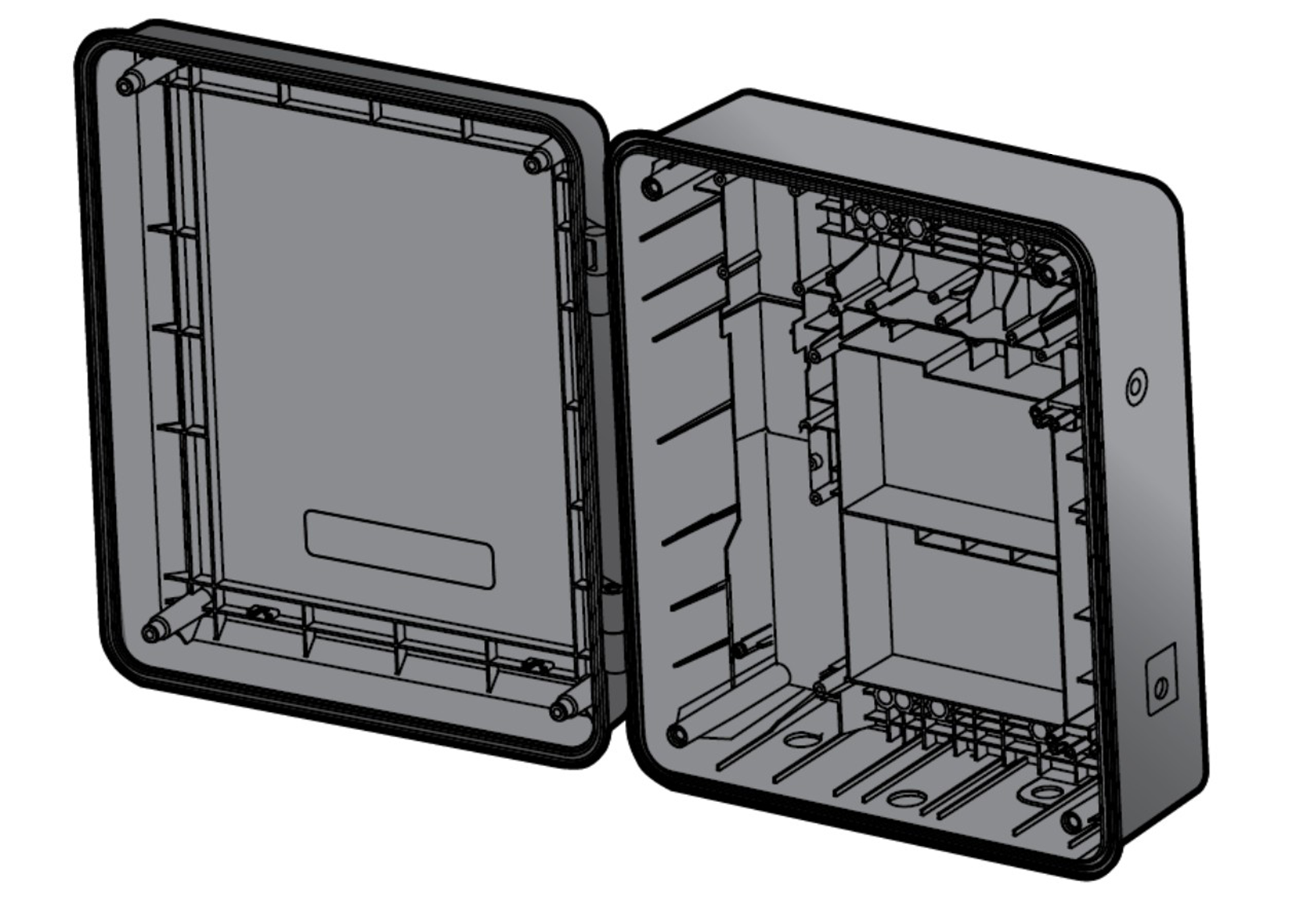

• The LA412 comes with an enclosure for the battery and solar controller, making installation cleaner and more weatherproof.
• The LA400 with solar kit requires external components to be added and configured, increasing installation complexity and exposure to elements.

6. Simpler and More Reliable for Remote or Off-Grid Locations

• Because of its all-in-one solar design, the LA412 is a better choice for rural or off-grid areas where:

• AC power is not available
• Solar efficiency is crucial
• Maintenance access is limited

Summary Comparison
