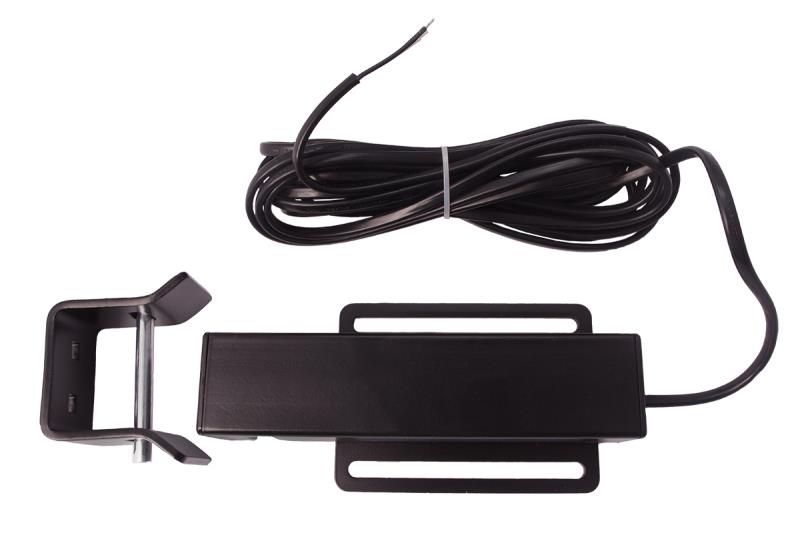

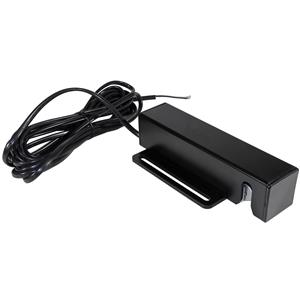

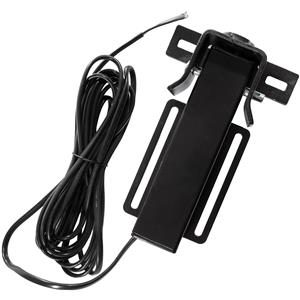

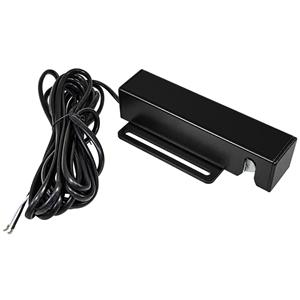

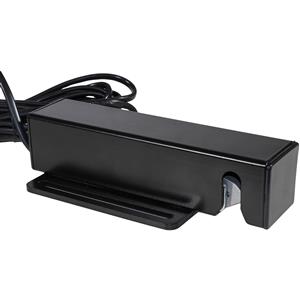

Estate Swing Low Impact Sliding Gate Opener Automatic Gate Lock



Price:$159.95
Quantity:



Bookmark and Share
Live Chat
Chat with a live representative or Send us an email

1-800-537-4283








   Product Details
  • Compatibilities
  • Accessory Uses
  • Accessory Features
  • Options
  • Product Media
  • Words from Senior Application Engineer
  •    Accessory Compatibilities Top of Page
    The Estate Swing Low Impact Sliding Gate Opener Automatic Gate Lock is compatible with all sliding gate openers on GateCrafters.com
    GateCrafters.com offers more expert assistance than anyone. We have live application specialists available 9am - 9 pm EST 7 days a week.

       Accessory Uses Top of Page

    Sliding driveway gate openers have until now had an issue in which an automatic lock was not able to be used with the gate. All the automatic locks were designed for swinging gates because of the mounting plates and also required a wire across the gate which poses issues with a gate that slides and moves locations.

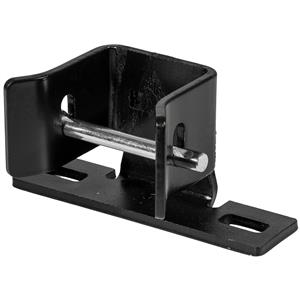

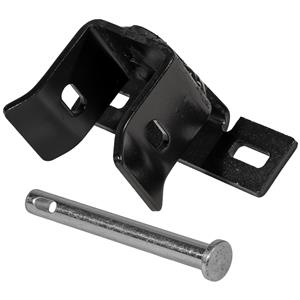

    The Estate Swing Low Impact Sliding gate lock kit solves these issues with its unique opener side mounting and gate mounted receiving bracket. Also the low impact aspect solves the now common issue of a gentle ending to gate opener movements. A common feature you’ll see is as a gate closes it slows down for the last few feet instead of banging shut. This reduces the banging noise as well as takes stress off the physical components of the gate and gate opener.

    One problem with this feature is the lack of momentum as the gate closes reduces the amount of weight hitting the lock to below the weight needed for the gate to fully close and lock. Instead, the gate latches rest on top of each other without fully locking, leaving your gate unprotected against forced entry and wind.

    What separates the Estate Swing lock from the rest of the competition is that it requires less than 1 pound of weight for the gate to lock. Other locks require approximately 10 pounds of weight, which is no longer generated from the momentum of the gate because of the slow down feature.

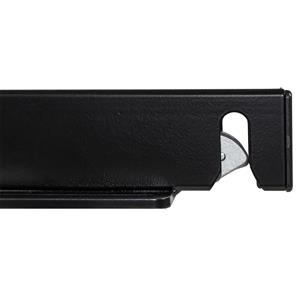

    The Estate Swing lock is the unique pivot design reduces power consumption. The older model locks require 3 amps to pull the latch open because they pull back on a direct linear path. The Estate Swing lock requires less than 1 amp because it works on a swivel, making the pulling action much easier.

    The reduction in power required for the lock means less strain is put on the system as a whole as power is distributed through the motor and control board. Since less power is then required from the system, you can reliably active and run the motor, power accessories, get a longer life span from battery systems, and will not stress the circuitry of the control board of the gate opener.

    The best features of the new Estate Swing Lock, however, are that it is compatible with all of our gate opener models here at GateCrafters.com and it comes with a 2yr warranty!

    GateCrafters.com is the DIY factor. GateCrafters.com further adds to most of our gate openers for easier DIY installation. We have developed exclusive components (example: easy adjustable mounting brackets), customized instructions, and offer a full spectrum of accessories to truly cover all aspects of the installation of your gate opener. In addition we have the largest staff of factory trained technicians in the US.

       Accessory Features Top of Page

  • Consistent Locking: Requiring only 1lb of force, your gate is sure to lock every time it closes.
  • Compatibility: Compatible with any sliding gate opener from GateCrafters.com.
  • 2yr Warranty:The longest warranty for any solenoid gate lock.
  • GateCrafters.com has the resources you need. How do you use your gate opener system once you get it? GateCrafters.com is the only retailer to give a real answer to this question. We have develop videos for installing many of our gate openers and products and write DIY focused manuals for most gate openers and have individual instructions for each accessory to be installed with each gate opener.

       Words from Senior Application Engineer, Anthony Gaeto Top of Page

    Coming soon!

       Accessory Options Top of Page
    Item has one version.

    GateCrafters.com has actual experience. We have a testing area, we have factory and internal training courses, we build gates and have our own gates that are automated, we attended all industry trade shows in multiple countries and are a member of the AFA, and we pay visits to our chosen manufacturers' factories. All these factors are what have lead to us having so many exclusive additions. When you see and actually use as many products as we have you tend to have many ideas for minor changes that have major impacts. We acted on these ideas and have utilized them to help thousands of customers automate their gates.
       Product Media Top of Page


    Manual: EstateSlide Lock
    QB ID: ESAGL
