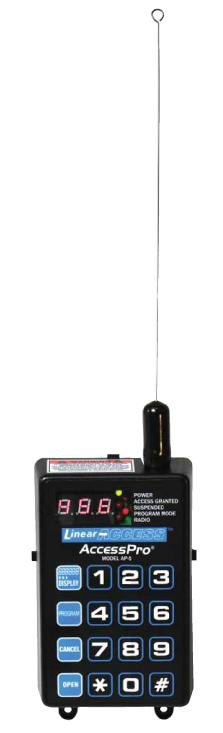

Linear Access Control Receiver (AP-5)


Bookmark and Share

Chat with a live representative or Send us an email


   Product Details
  • Compatibilities
  • Accessory Uses
  • Accessory Features
  • Product Media
  •    Accessory Compatibilities Top of Page
    The Linear Access Control Receiver when wired is compatible with: All gate openers for 24 volt gate openers a 12 volt transformer will be needed (not included) offers more expert assistance than anyone. We have live application specialists available 9am - 9 pm EST 7 days a week.

       Accessory Uses Top of Page

    The AP-5’s programmable relays make it suitable for environments where you need to control more than one entry, such as a vehicular and a pedestrian gate. The new model also features a programmable access relay activation time, from one to 120 seconds. For swing and slide gates, up to six Linear Model MGT safety edge transmitters that can be assigned for entrapment detection to trigger obstacle outputs.

    The AP-5 also is good for use in environments where RF noise or wireless signal interference can be a problem. The controller features a built-in, high-sensitivity, narrowband 318-MHz super heterodyne receiver with an external antenna that can pick up signals from a Linear MegaCode® block-coded transmitter from up to 500 feet away. A whip antenna is supplied as standard, or Linear’s EXA-2000 directional antenna and EXA-1000 omni-directional antenna are available as options for improved performance.

    Each AP-5 supports up to 480 Linear MegaCode® factory block-coded and custom block-coded transmitters. Each of the 480 remote transmitters can be programmed with just a few keystrokes, and since there are no dipswitches to set, it is easy to add and suspend transmitters. Including Linear’s MDKP exterior wireless keypads as part of the access control system means you can use any combination of up to 238 individual transmitters and/or MDKP keypad entry codes.

    AP-5 Graphic

    Cool Feature: This receiver has two relays to open two gate openers or gate openers plus a device paired with keypads or remotes. The installer can choose which relay to control via remote or code used in keypad. This feature works when paired with the MDKP keypad. is the DIY factor. further adds to most of our gate openers for easier DIY installation. We have developed exclusive components (example: easy adjustable mounting brackets), customized instructions, and offer a full spectrum of accessories to truly cover all aspects of the installation of your gate opener. In addition we have the largest staff of factory trained technicians in the US.

       Accessory Features Top of Page

  • Picks up signals from MegaCode transmitter from up to 500 feet away.
  • Supports 480 block coded transmitters or 238 individual transmitters/wireless keypad entry codes.
  • Multipurpose wireless access controller ideal for vehicular gate, pedestrian gate, or entry door access.
  • 3 relay outputs offer flexibility to control a combination of entry points or obstacle inputs.
  • Access relay activation time programmable up to 120 seconds.
  • Access relays are programmable for timed or latch operation.
  • Supports six fully supervised gate safety edge transmitters.
  • Two Year Manufacturer Warranty
  • has the resources you need. How do you use your gate opener system once you get it? is the only retailer to give a real answer to this question. We have develop videos for installing many of our gate openers and products and write DIY focused manuals for most gate openers and have individual instructions for each accessory to be installed with each gate opener.

       Product Media Top of Page

    Manual: AP 5
    Manual: AP 5_Lit
    QB ID: AP-5
