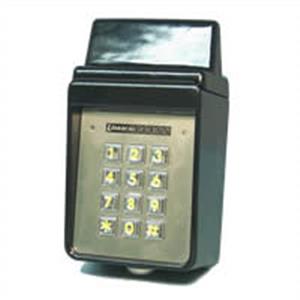

Linear Access 2 Channel Digital Keypad - AK11 (without receiver)


Please Select an Option:

Price:$231.99
Quantity:



Bookmark and Share

Chat with a live representative or Send us an email

1-800-537-4283








Play Video

   Product Details
  • Compatibilities
  • Accessory Uses
  • Accessory Features
  • Options
  • Product Media
  • Words from Senior Application Engineer
  •    Accessory Compatibilities Top of Page
    The Linear Access 2 Channel Digital Keypad Wired is compatible with:

    Estate Swing: ES502, ES1602, ESU2200, ES300, ES1100, ESC1102, ESU2202, ES302, ES1102, ESC1600, ES500, ES1600, ESC1602, ES-L 450, E-SL 1200, E-SL 1800, E-SL 2000AC, E-SC1102 Carriage Door Opener, E-SC 352 Carriage Door Opener, E-SC1602 Carriage Door Opener.
    Apollo: 1550, 3600, 1600, 1650, 3500, NT-H12ETLSingle, NT-H12ETLDual, 7000UL, 7500ETL, NT-T7 Single, NT-T7 Dual, NT-T5 Single, NT-T5 Dual, BA12
    Mighty Mule: FM200, FM502, FM350, FM352, FM500
    GTO: SW050, SW3000XL, SW052, SW3002XL, SW2000XL, SW4000XL, SW2002XL, SW4002XL, SL2000B, GP-SL050, GP-SL100, GP-SL052, SL-2002B, GP-SL102
    LiftMaster: LA-400, LA-412, LA-400-D, LA-412-D
    Other: Gate Crafters Pedestrian Gate Lock, Most other gate openers.

    GateCrafters.com offers more expert assistance than anyone. We have live application specialists available 9am - 9 pm EST 7 days a week.

       Accessory Uses Top of Page

    Available with a built in radio receiver to program Linear remotes to activate keypad/gate. The keypad with or without receiver must still be wired to the opener. Choose radio option above. With this Linear Access 2 Channel Digital Keypad you can add additional security to your automatic gate, or any secured areas that have an electronic release capability. The keypad is housed in a rugged cast aluminum enclosure that can be mounted to a pedestal or bolted directly to a wall.

    Linear is well known for superior access control. Their keypads are seen outside some of the most prestigious homes in America as well as outside many businesses. The reason they are such a good choice for business are their flexibility in their functions. They can be used from something as simple as code entry to being a receiver for remotes to locking out codes during time frames. The Party mode feature allows for the keypad to hold a gate open using a separate code when multiple guests are expected.

    Even with their solid metal face their keypads still manage to light up using a downward light from the overhanging top, making night access a snap. Steel buttons also enhance the keypads luxury look. It has a key lock on the bottom to secure the wiring hookups from the curious or vandals.

    The DOOR SENSE/INHIBIT input can be used two ways. If programmed for "door sense", a switch on the door detects forced entry or door ajar situations. If programmed for "inhibit", the input can be wired to a "service" switch or automatic timer that will disable the Relay #1 when required.

    The REQUEST-TO-ENTER input can be wired to a pushbutton or fire access keyswitch to provide codeless entry for authorized personnel. The "anti-passback" feature prevents using the same code twice before the programmed time elapses.

    The ALARM SHUNT output activates when access is granted. This output can be wired to shunt alarm contacts on the access door/gate to prevent triggering of an alarm when authorized access occurs. Two solid state outputs, capable of switching 100 mA to common, are programmable to signal forced entry, door ajar, lockout, alarm circuit shunting, request-to-enter, and keypad active conditions.

    GateCrafters.com is the DIY factor. GateCrafters.com further adds to most of our gate openers for easier DIY installation. We have developed exclusive components (example: easy adjustable mounting brackets), customized instructions, and offer a full spectrum of accessories to truly cover all aspects of the installation of your gate opener. In addition we have the largest staff of factory trained technicians in the US.

       Accessory Features Top of Page

  • Large Code Capacity: 480 Entry Code Capacity; 1-6 Digit Entry Code Length
  • Easy Use: Two LED Indicators and a courtesy lamp for easy programming
  • Extra Features: 2 output relays, keypad lockout and piezo sounder
  • Receiver Option: Will work with MegaCode remotes: if receiver option chosen
  • Capabilities: Party Mode Capability
  • Self-contained keyless entry system: Ideal for residential, office buildings, parking lots, airports, hospitals, warehouses and many other commercial facilities.
  • Rugged, cast aluminum enclosure: For indoor or outdoor mounting on a wall or pedestal
  • Four independent outputs and timers Two form C relays and two solid-state open collector outputs with unique programming per entry code
  • 18 month manufacturer warranty
  • GateCrafters.com has the resources you need. How do you use your gate opener system once you get it? GateCrafters.com is the only retailer to give a real answer to this question. We have develop videos for installing many of our gate openers and products and write DIY focused manuals for most gate openers and have individual instructions for each accessory to be installed with each gate opener.

       Accessory Options Top of Page

  • With Receiver
  • Without Receiver
  • GateCrafters.com has actual experience. We have a testing area, we have factory and internal training courses, we build gates and have our own gates that are automated, we attended all industry trade shows in multiple countries and are a member of the AFA, and we pay visits to our chosen manufacturers' factories. All these factors are what have lead to us having so many exclusive additions. When you see and actually use as many products as we have you tend to have many ideas for minor changes that have major impacts. We acted on these ideas and have utilized them to help thousands of customers automate their gates.
       Words from Senior Application Engineer, Anthony Gaeto Top of Page

    “The Linear Access 2 Channel Digital Keypad is a wired keypad that offers you a very high level of security. This keypad can also be ordered with a receiver built in that will allow it to wirelessly communicate with the Linear Access MDKP and with Linear Access transmitters. This keypad does have lights built in to illuminate the keypad for nighttime access.

    This is a rugged built unit designed for commercial applications or residencies where security is of the utmost importance. The body of the keypad is made of rugged cast aluminum and has two relays built in that can be used for added security options. These relays can be programmed for a “door sense” switch which detects where a door or gate is being forced open or ajar. Also this keypad has an input for a request-to-enter program. This is useful for wiring in a push button or a fire access keypad. This keypad is designed for those who need high levels of security but would also like a nice looking keypad.

    Gate Crafters was started on the goal of providing our customers with high quality gate openers and accessories. The purchase of your key pad or any other accessory can be as personal as finding the right gate opener for your gate. Our experts are standing by 7 days a week to help you out with any question or concern you may have. Please give us a call, send a email, or use our live chat on our website. We are available from 9 am to 9 pm, eastern time and we look forward to hearing from you.”

       Product Media Top of Page

    General Specifications

    Wiring to specific openers:

    Apollo 3500/3600
    Apollo 1500/1600
    E-S 1100/1102
    E-S 1600/1602
    E-SC 1600
    E-SC 1102
    E-SU 2200/2202
    FM350
    FM500/502
    SL1000/2000
    SW1500
    SW2500
    GTO/PRO SW3000/3002
    GTO/PRO SW4000/4002


    Manual: AK 11
    QB ID: AK-11
