Why won’t the gate respond to remotes, keypads, or MyQ app commands?
▼
• Activate wireless control and check XMITTER LED is on. Re-learn wireless control/transmitter to control board. Replace wireless control as needed.
• Check stop button is not “stuck on”.
• Check the reset button.
• Check if similar wired control operates correctly. Check if wireless controls work properly when within a few feet of the operator. Check the operator's antenna and antenna wire. Check other wireless controls or devices.
If the gate is still not operating properly, refer to the operator manual for specific troubleshooting instructions or call Gate Crafters' Technical Support.

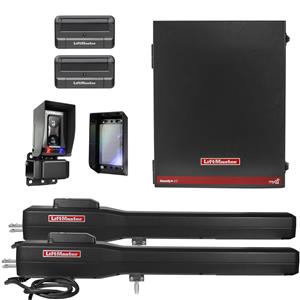

How do I install and set up the LA5001PKGXLMU (mounting, control box, and power connections)?
▼
1. Position the Brackets
2. Attach the Brackets
3. Install the control box
4. Install proper earth ground rod within 3 feet of the operator
5. Wire the operator arm to the control board
6. Install Entrapment Protection
7. Wire Entrapment Protection Devices
8. Power Wiring
9. Install Warning Signs
For more specific installation instruction, refer to the operator manual.
How do I program the travel limits (open and closed positions)?
▼
1. Set the GATE switch to the 1 position.
2. Press and release the SET OPEN and SET CLOSE buttons simultaneously to enter limit setting mode.
3. Press and hold the MOVE GATE buttons to move the gate to the open or close limit.
4. Press and release the SET CLOSE or SET OPEN button depending on which limit is being set.
5. Press and hold the MOVE GATE button to move the gate to the other limit.
6. Press and release the SET CLOSE or SET OPEN button depending on which limit is being set. The operator will exit limit setting mode.*
7. Cycle the gate open and close using the TEST BUTTONS. This automatically sets the force.
When the limits are set properly, the operator will automatically exit limit setting mode.
Why does the gate stop, reverse, or hesitate during normal operation?
▼
• Check all Open and Close inputs for an active input.
• Check all vehicle detector inputs for an active detector.
• Battery voltage must be 23.0 Vdc or higher. Charge batteries by AC or solar power or replace batteries.
• Check gate path for obstructions and remove. If there are no obstructions in the gate path, manually disconnect the gate, and ensure it moves easily limit to limit. Repair gate as needed.
What routine maintenance or seasonal care does this gate opener require for reliable long-term operation?
▼
- Entrapment Protection Devices: Check and test for proper operation at least once every month
- Warning Signs: Make sure they are present and replace if worn or broken at least once every month
- Manual Disconnect: Check and test for proper operation at least once every 6 months
- Gate: Inspect for wear or damage at least once every month
- Accessories: Check all for proper operation at least once every 6 months
- Electrical: Inspect all wire connections at least once every 6 months
- Mounting Hardware: Check for tightness at least once every 6 months
- Operator: Inspect for wear or damage at least once every 6 months
- Batteries: Replace at least once every 3 years
What safety devices (photo eyes, loop detectors, etc.) are compatible and how do I install them?
▼
The EYES/EDGE terminals are used for connecting entrapment protection devices.
At least one external monitored entrapment protection device is required prior to gate movement. Monitored entrapment protection devices should have been installed with the operator at the time of installation. Only ONE monitored device may be connected to each input. A monitored device sends a pulsed signal to the operator so the operator is aware of the device. If the operator does not receive the signal from the device indicating it is working properly, it will not run in that direction.
What gate size and weight is this gate opener designed to handle?
▼
The max gate weight this gate opener can handle is 1600 lbs and the max size this gate opener can handle is 8 feet.
How do I connect and configure MyQ technology for smartphone control and remote access?
▼
To program the operator to the LiftMaster Internet Gateway:
1.Connect the ethernet cable to the LiftMaster Internet Gateway and the router.
2.Connect power to the LiftMaster Internet Gateway.
3.Download the myQ® App.
4.Set up an account and follow the app instructions to add your gate operator.
5.The LiftMaster Internet Gateway will pair to the operator if it is within range and the operator will beep if programming is successful.
The gate operator can then be controlled through the myQ® App.
What do the LED diagnostic codes on the control board mean, and how do I troubleshoot them?
▼
The diagnostic codes are codes for issues regarding the LiftMaster System, Installed System, Information on the control board, External Entrapment Protection, Inherent Entrapment Protection. For a full list of each diagnostic code and solution, please refer to the operator’s manual.
How do I manually open the gate during a power outage or when the battery is dead?
▼
In case of a power failure, the operator can be disengaged from the gate. With an operator, the release action may sometimes feel stiff/jerky, which is normal and has no effect on function.
It is normal for the operator to run slow right after a disconnect or complete loss of AC/ battery power (the operator will need to run a complete open and close cycle).
RELEASE
1.Insert the key into the lock.
2.Turn the key counter-clockwise 180°.
3.Turn the release lever counter-clockwise 180°.
The operator is in manual mode and the gate can be opened and closed manually. The lock relay will activate then turn off after 2 minutes to conserve power.
ENGAGE
1. Turn the release lever clockwise 180°. This engages the motor.
2.Turn the key clockwise 180°. This locks the release lever.
3. Remove the key and store in a safe place. The operator is now engaged.
