Gate Crafters 3 Rail Dual Farm Gate Frame Kit

Price: $259.80

Bookmark and Share

Chat with a live representative or Send us an email


   Product Details
• Product Description • Custom Ordering • Additional Pictures
• Specifications • Options
• Why Gate Crafters? • Words from Senior Application Engineer

   Product Description
Three Rail Frames has created an easy DIY multi-sized 3 rail farm gate frame kit. Use the Gate Crafters Wood Rail Farm Gate Kit to build a 3 rail wooden farm gate to replace an existing gate, make your gate easy to automate or match a desired look. Includes easy to attach, adjustable ball bearing hinges to make installation a breeze. Standard frame height measures 42"
Ships within: Contact for more information
Click to Enlarge
   Why get a Frame?
Through years of automation experience we have heard one resounding gripe from our customers. The chain link, vinyl, wood or 3 rail farm gates found in local store and fencing suppliers are just not built for the rigors of automation. All Aluminium unit: known for its strength and resilience. PLUS our gates all come with the necessary component of automation including horizontal supports matched to the mounting need of all common gate openers and ball bearing hinges, made to make your gate swing smoothly and freely through years of usage. Frame caps are not included with the purchase.

   Options Top of Page

You can use any size wood rails you choose (not included) up to 10' to create a traditional farm-style entrance to your home.


Automation is a breeze with the highly recommended E-S1600*, the most popular gate opener we carry. It attaches with a simple bolt on application that any handy homeowner can easily do them. Has a durable housing, powerful motor, dual adjustable limits and constant duty operation (Estate Swing makes the ONLY constant duty DIY opener). Rated for 16' or 800 lbs. Features: Positive stop free operation, metal housing, medium/heavy usage, key manual release, and online video.


The post has the hinge barrels welded to it. The gate kit comes with hinge plates and hinges.

Hinge Plates:

The hinge plates have the barrels already welded to a plate for easy mounting to an existing post or column.

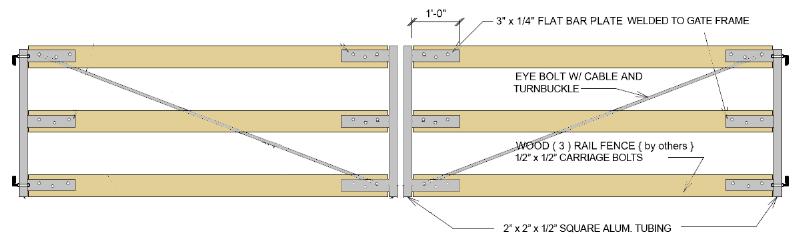

Use this gate kit by attaching 3 wooden rails (wood rails not included - typically 1 x 6 fence panels)It attaches on one side to allow a multitude of wood thicknesses and styles. A cable cross bracing and ball bearing hinges are included in this kit to make attaching the gate to a post (post not included, the post can be purchased with the hinges welded on to the post) a breeze. recommends that you use a self-etching primer (such as Marhide self-etching primer ). A self-etching primer is an essential undercoat layer of paint over steel. Primer kills stains, retards moisture and provides a good surface for a topcoat of paint to adhere to. It is imperative that new or bare aluminium and steel is primed prior to painting.

   How to Order
We can build custom heights. Please fill out the below forms and email them to for a quote.

1. Download 3 rail farm gate templates and indicate the measurements requested.
Form 1
Form 2
Form 3
Form 4

Forms can be faxed to (813) 926-8460 e-mailed to

2. Add the kit to your shopping cart along with any posts, automation equipment or other accessories you may like and checkout through our SSL Verisign secured website.

We will then contact you via e-mail to let you know everything has been received and an approximate ship date.

*Please read the E-S1602 description to be sure the gate opener will fit all of your requirements - it is a fairly universal workhorse of a gate opener but power or clearance issue may need to be considered in some circumstances.

   Words from Senior Application Engineer, Anthony Gaeto

“ offers a DIY 3 rail gate frame kit that allows you to match your existing fence. Gate Crafters will customize your frame kit with the dimensions you need to compliment your existing fence. We can match your custom gate frame kit to any existing fence you may have. To have a kit made especially for you please give us a call and give us your dimensions that you need. We can build kits that use more than 3 rails if your fence needs it.

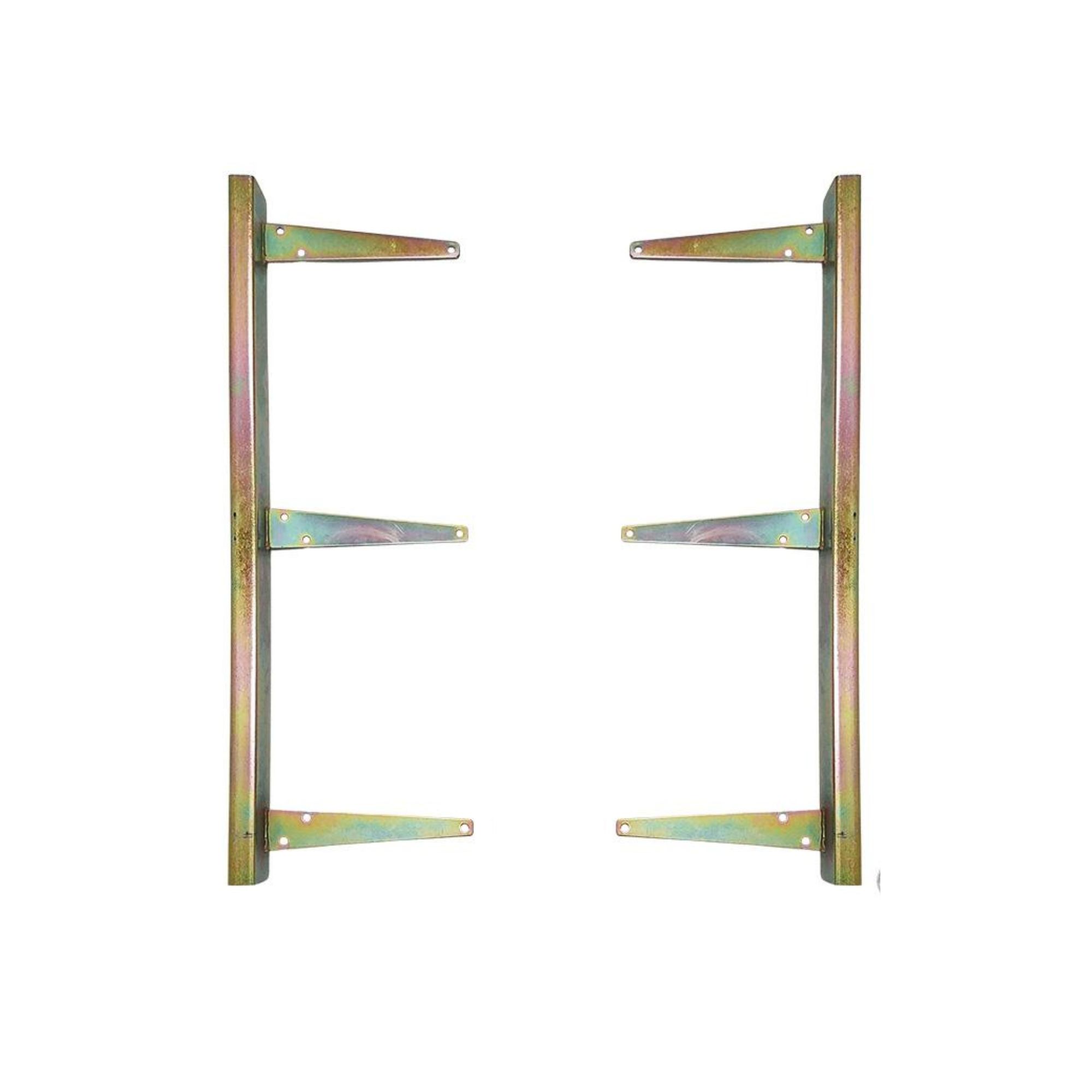

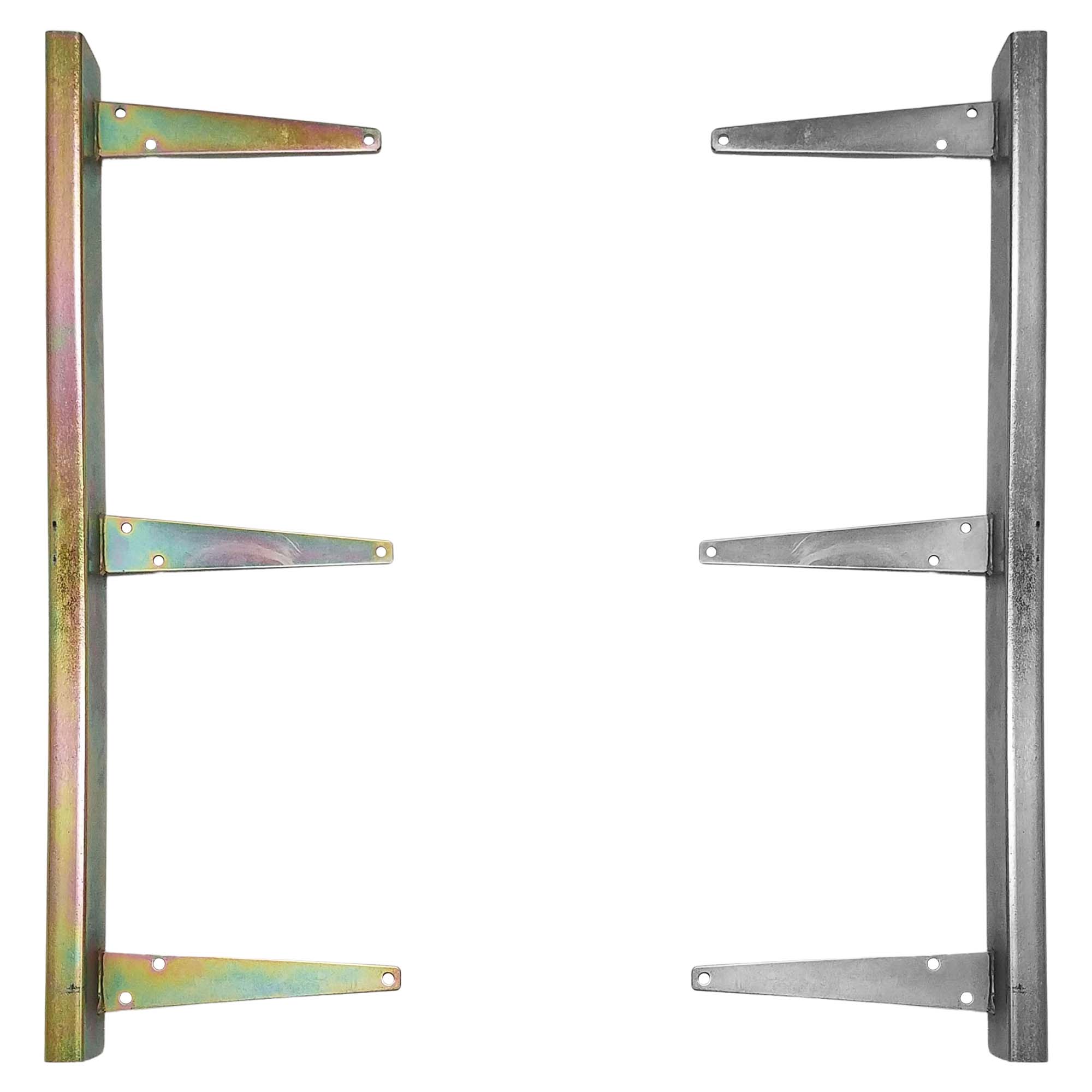

This frame kit is made from all Aluminium and includes everything you need to hang your gate. Stainless steel cable used to provide tension on the frame, the mounting hardware for the cable, and heavy duty ball bearing hinges plates.

The post side of the frame kit has an extra long center piece that allows you to add a gate opener to your gate. This longer arm allows you attach an appropriate gate opener so you can automate your gate. You do not have to use a gate opener, but to add versatility to this kit we built it in so you do not have to change anything to automate your gate. The heavy duty ball bearing hinges feature a built in grease fitting and 2 nuts that allow you to perfectly align your gate with your fence.

This Gate Crafter’s kit gives you an inexpensive option to add a driveway gate to your property. This kit allows you to build your own gate.  Our previous customers have provided us with photos with the gates they made from our kit.  As you can see there are multiple options when it comes to building your gate.  This kit was designed with the DIYer in mind. It contains all of the elements you need to build your gate, except for the boards needed to construct the gate itself.

Gate Crafters was started in 2002 with the DIYer in mind. is your one-stop shop for whatever you need for your gate. Please give us a call, send an email, or use our live chat on our website so we can help you design your custom rail gate kit.”

   Additional Pictures: Click to Enlarge

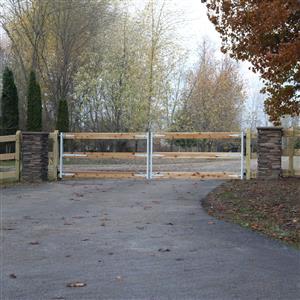

Ex. finished simple 3 Rail Gate Frame Tensioner and Bolts Decorative 3 Rail Gate Int.
Decorative 3 Rail Gate Ext. Frame Tensioner and Bolts Forest 3 Rail Gate
3 Frame Gate
3 Rail Frame Entrance 3 Rail Frame Wooded Area 3 Rail Frame Driveway

Manual: gatecrafters 3rail installation manual
