USAutomatic Gate Operator Feature Chart

US Automatic US Automatic US Automatic US Automatic US Automatic
Features Residential Light Commercial
Model Ranger 500 Sentry 300 Ranger HD Patriot Patriot RSL
Application Residential, Farm & Ranch Residential, Farm & Ranch Residential, Light Commercial, Farm & Ranch Residential, Light Commercial, Farm & Ranch Residential, Light Commercial, Farm & Ranch
Operator Type Swing Swing Swing Swing Slide
Power Supply 12VDC 12VDC 12VDC 12VDC 12VDC
Cycle Speed 18-20 seconds 16 seconds 12 seconds 12 seconds 12” per second
Cycles per Day* Continuous for AC
Varies for Solar		 Continuous for AC
Varies for Solar		 Continuous for AC
Varies for Solar		 Continuous for AC
Varies for Solar		 Continuous for AC
Varies for Solar
Operating Temperature -22°F to 158°F -22°F to 158°F -22°F to 158°F -20°F to 150°F -20°F to 150°F
Max. Gate Weight 400 lbs. 400 lbs.* 800 lbs. 800 lbs.* 1,000 lbs.
Max. Gate Length 13 ft. 20 ft. 16 ft. 20 ft. 32 ft. travel distance
Solar Compatible Yes Yes Yes Yes Yes
Gate Operator Class Class I, II, III, & IV Class I, II, III, & IV Class I, II, III, & IV Class I, II, III, & IV Class I, II, III, & IV
Max. Degree 90° 90° 90° 90° x

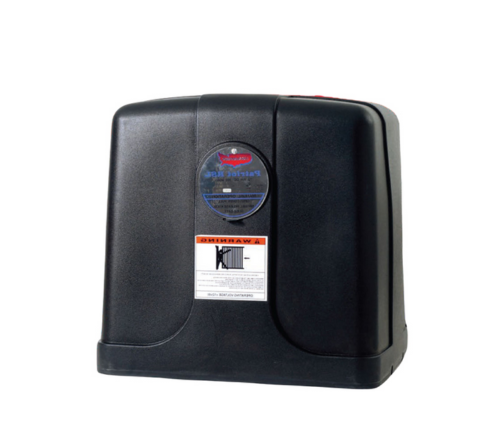

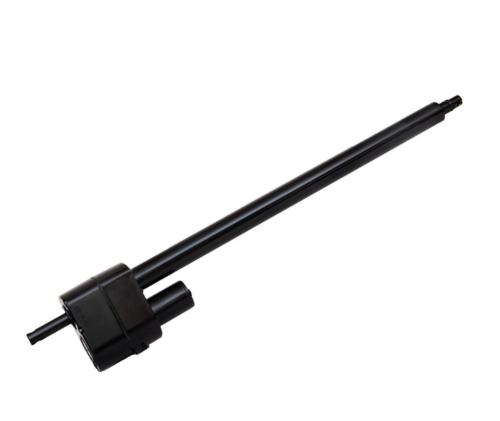

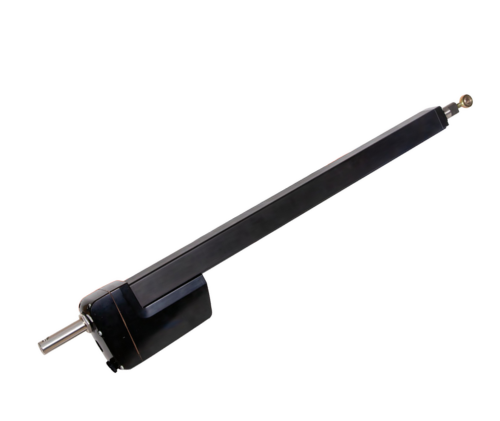

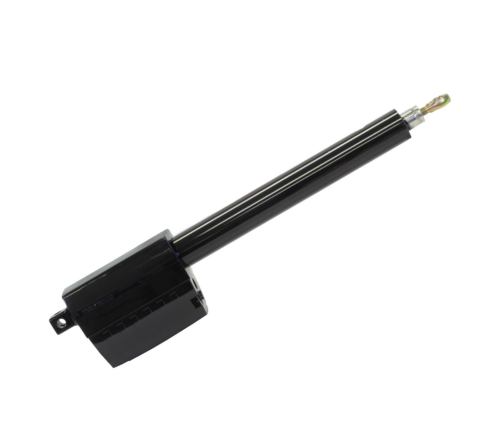

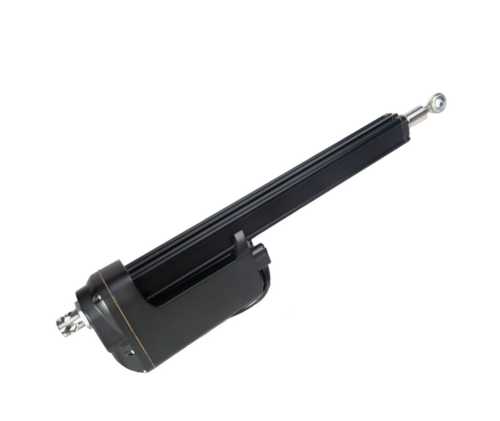

Actuator / Motor Drive 16" Linear Actuator 16" Linear Actuator 24" Linear Actuator 24" Linear Actuator Inline gear motor with built-in brake assembly
Wire Specification** 10 - 18 Gauge 10 - 18 Gauge 10 - 18 Gauge 14 - 18 Gauge 14 - 18 Gauge
Limited Warranty 3 Year Component
3 Year Control Board		 3 Year Component
3 Year Control Board		 3 Year Component
3 Year Control Board		 3 Year Component
5 Year Control Board		 3 Year Component
5 Year Control Board

*As the gate gets longer, it must weigh less.
**Determined by the distance from the power source to the operator.
