Apollo 7200ETL Dual Slide Opener w/ Free DIY Kit (7200 Apollo) - W/ AC

• Gate Materials:Wood, Steel, Aluminum, Chain Link, and others.
• Weight and length: Up to 25' in length and 800 lbs
• Mounting Options: Post mount
• Power: 12 volt deep cycle marine battery - 105amp./hour (Not supplied) In the event of electrical power outage or significantly overcast days, a fully charged deep cycle marine battery will provide up to 300 cycles or 30 days usage on a basic system before requiring a recharge.
• Power Wire Specification: 16 gauge wire (purchased separately) with 1,000 foot max length from transformer to control board.
• Solar Compatible: Yes, Browse our solar panels (purchased separately).
• Operating Temperature: - 4° to 122°F
• Warranty: 2-year manufacturer control board/ 2-year component manufacturer warranty.
• For this board to function a UL 325 photo eye safety device must also be attached to the board and used in the operator system.
(Click Here for Warranty Pros and Cons)

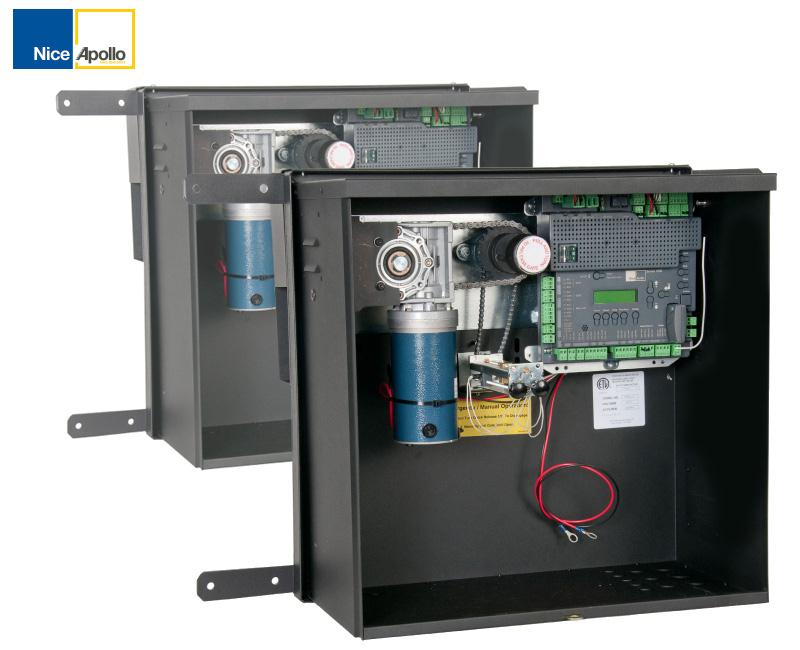

The Apollo 72000ETL Dual Slide Openers are low voltage systems, eliminating the need to run 110 AC to your gate. Simply run 14-gauge low voltage to a household outlet within 1000' of the operators or use a Gate Crafters solar panel. The openers are housed within two NEMA 3R boxes. While it contains both the operator and the control board, it still leaves ample space for a larger battery. A larger battery means more cycles during a time of power outages or low sunlight (if solar is being used). A fully charged deep cycle marine battery will provide up to 300 cycles or an average of 30 days usage on a basic system before requiring a recharge (Battery not included). Each cycle is a full open and close and takes approximately 1 foot per second each direction.

The 7200ETL Dual Slide Openers can be used in conjunction with exit sensors, magnetic and solenoid locks, safety sensors, intercoms, digital keypads, solar panels and much more.

• Closing Timer - Set your gate to close between 20 and 100 seconds after reaching the full open position or turn this option off to leave it open until an entry device actives motion.
• Learn Mode - An intelligent learning process makes the set up a breeze. The 800 series control board inherently learns the limits and requirements of your gate.
• Self-Adjusting Auto Reverse Sensitivity - After deciding how sensitive you want your gate to be to obstructions, the 800 series control board learns the effecting surrounds to help prevent misreads of obstructions. i.e. gate weight, balance, ease of motion, etc.
• 12 Volt Output Terminals - Convenient for accessories requiring power. i.e. keypads, lights, locks, sensors, etc.
• NEMA 3R Housing - NEMA 3R galvanized boxes are rated for outdoor use and are resistant to high winds, sand, dust, rain, snow, sleet, and freezing water; protecting your valuable control board from the elements and your battery from corrosion.

• Slide Gate Operator
• 1 1/2 Amp Hour Battery Charger
• 35' #40 Roller Chain

• NEMA 3R box
• 2 Year Manufacturer Warranty
• Safety Standard UL 325 approved

The following tools and supplies are suggested in the manufacturer manual for optimal installation. They are not provided by GateCrafters, however, most tools are available at local hardware stores for purchase or rental.

• Please refer to manual for Tools Needed.

The 7200ETL Single Slide Opener is designed for home, ranch or light industrial use. It is economically priced and built to last. With and opening capability of 25' most driveways are covered, even ones made to be accessible to tracker trailers. The operator is ready to be post mounted, taking away the try process of creating a pad mount. Pad mounts can be difficult to make correctly. The entire unit is housed inside a NEMA 3R box. NEMA 3R boxes are well known for being the ultimate in weather protection. They stand up to most anything nature can dish out; winds, sands, ice and snow are no match for a NEMA 3R box.

The real highlight of this opener is in its control board. It features Apollo's new 800 series control board. The 800 series is intelligent, easy to use and a leap above many other comparable control boards. Among the many advantages of the 800 series board is the self-adjustment to natural factors. All UL 325 approved boards have an adjustable inherent obstruction sensor. The 800 board takes it further by self-learning what natural obstructions already exist. For example, if your gate is heavy but you want the obstruction sensor to be very sensitive to avoid damage or injury the 800 series board will automatically learn changes in the momentum caused by the weight of the gate and differentiate them from an actual obstacle.
