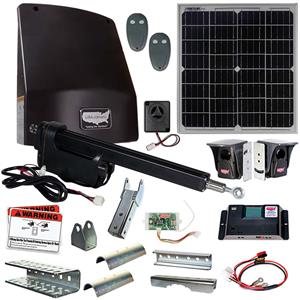

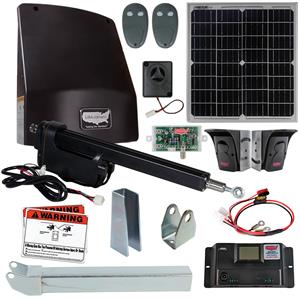

USAutomatic Ranger 500 Single Swing Gate Opener Kit with DIY Bolt-On Brackets - 20 Watt Panel


  • USAutomatic Ranger 500 Single Swing Gate Opener Kit with DIY Bolt-On Brackets  - 20 Watt Panel

Original Price: $1,356.98
Price: $1,324.25
In Stock
Quantity:


bookmark this pageSave this page

Chat with a live representative or Send us an email

1-800-537-4283




   Quick Content Anchors
   Popular DIY Packages
Deer Protection Package
Subtotal for(3) items
$498.94 Add to Cart >
Authorized Entrance / Communication Package
Subtotal for(2) items
$864.97 Add to Cart >
Limited Access / Full Security Package
Subtotal for(3) items
$363.12 Add to Cart >
Exit Convenience Package
Subtotal for(2) items
$227.07 Add to Cart >
Safety Package
Subtotal for(3) items
$419.76 Add to Cart >
Subtotal for(3) items
$498.94
Add to Cart >
Subtotal for(2) items
$864.97
Add to Cart >
Subtotal for(3) items
$363.12
Add to Cart >
Subtotal for(2) items
$227.07
Add to Cart >
Subtotal for(3) items
$419.76
Add to Cart >
   Related Products

    Gate Opener At a Glance Top of Page

The USAutomatic Ranger 500 is a reliable, battery-powered solution for residential, light commercial, farm, and ranch use, capable of handling swing gates up to 13 feet and 400 pounds. Backed by a 3-year warranty, it features AC or solar charging, PWM soft start and stop technology, and includes battery under load monitoring with audible notifications. Compatible with the USAutomatic gate app, it supports single or dual gates and opens in 18 seconds. Designed with a non-corrosive actuator and electronic limit control, it meets UL325 safety standards.

  • Gate Materials: Ornamental Iron Gates, Farm Gates, Ranch Gates and Chain Link Gates
  • Weight and length: Up to 13' in length or 400 lbs.
  • Max degree of opening: 90 degrees
  • Gate Post or Column size (pull to open): The pre-drilled hole on actuator bracket must be located 5" behind the gate hinge and 7 1/2" to the inside of the property.
  • Push to Open: Yes. The pre-drilled hole on actuator bracket must be located 7" in front of the gate hinge and 4" to the drive side of the hinge.
  • Solar CompatibleYes (purchased separately).
  • Power: +12 VDC maintenance free lead acid, Gel or AGM battery rated at a minimum of 35-amp hours group size U1 (not included)
  • Power Wire Specification: Transformer is supplied with 12 feet of cable, if extension is needed use Sentry Charge Cable Extension Kit (part #630050).
  • Operating Temperature: -22º to 158º F
  • Warranty: 3 year manufacturer control board, 3 year component manufacturer warranty.

Gate Crafters offers more expert assistance than anyone.
If you need help deciding if this gate opener has the abilities that are right for your gate we have live application specialists available 9am - 9 pm EST 7 days a week or try our exclusive gate opener recommendation tool 24 hours/day.

    Gate Opener Description Top of Page

USAutomatic Ranger 500 Series Single Swing Gate Opener

The Plug N Go design of all installed components and the easy-to-understand Ranger control board make this the simplest gate opener for the do-it-yourself installer. The Ranger 500 linear actuator can be mounted in two different positions, making it less visible behind a cross member and enhancing the appearance of your gate.

The Ranger 500 automatic gate opener is powered by a 12-volt DC battery (not included). This battery is charged by the supplied transformer, which requires AC power (120 VAC) to be located either at the gate area or within 1,000 feet of it. If the AC power is more than 10 feet from the gate opener's control box, additional extension cable is required.

The automatic gate opener's solar charging method is optional and requires a solar panel kit (sold separately) for proper operation. Typically, only one panel will be needed. The Ranger single swing gate opener is capable of a high number of cycles per day. Ranger's solar performance is a unique and unmatched offering in the market, providing up to 65 cycles per day with standard solar panel.

Click here to review the solar region map to determine the number of cycles per day you can expect from a solar-charged system.

The Ranger 500 Series Swing Gate Opener by USAutomatic is proudly manufactured in the U.S.

Gate Crafters has the resources you need.
How do you use your gate opener system once you get it? Gate Crafters is the only retailer to give a real answer to this question. We have develop videos for installing many of our gate openers and products and write DIY focused manuals for most gate openers and have individual instructions for each accessory to be installed with each gate opener.

   Gate Opener FeaturesTop of Page
  • Manufactured in the USA
  • Two 2-button remotes are included.
  • The LCR dual-channel receiver is pre-wired and solar-friendly.
  • Can be solar or AC charged with a solar-friendly smart controller.
  • Compatible with all types of solar-friendly accessories and does not require additional solar panels.
  • Sensitivity adjustments are available for Gate 1 and Gate 2.
  • Battery-powered, providing real battery backup.
  • Features battery under-load monitoring and low battery audible notification.
  • Includes a built-in timer to close.
  • Equipped with Photo Eye Power Management (PEPM) solar-friendly software.
  • The photo eye transmitter is battery-powered or hardwired.
  • Suitable for residential, light commercial, farm, and ranch use.
  • Features a non-corrosive actuator and control box with a hinged control box cover.
  • Includes a bolt-on hardware kit.
  • Recommended battery type (not included): 12-volt, Group U-1; sealed (maintenance-free); minimum 30 amp hour.
  • Equipped with PWM soft start and soft stop.
  • "Gate APP" compatible, powered by Nexx from USAutomatic.
  • Gate travel speed: approximately 16 seconds.
  • Electronic limit control is onboard.
   Included with the Gate Opener BrandTop of Page
  • Linear Actuator Arm
  • Entrapment Siren
  • Set of 2 Safety Signs
  • Set of 2 433Mhz Transmitters
  • Transformer
  • Hardware kit
  • Color Instructional Manual
  • Control Box with Installed Components:
  • Charge Controller or Solar Panel
  • LCR Receiver
  • Control Board
    D⁣IY Installation Top of Page

<span data-src='/glossary_detail.aspx?id=10851' class='hovertxt'>DIY</span> Install

For over a decade, Gate Crafters has been the premier online retailer of gate openers and accessories. With our extensive technical and installation expertise, we are authorized to serve the DIY market. We believe customers should have the opportunity to take pride in their projects, whether installing or troubleshooting a gate opener. Everyone deserves the option to enjoy high-quality products without the need to hire help.

At Gate Crafters, we empower you to install confidently by providing access to our trained technical staff seven days a week from 9 AM to 9 PM EST. By choosing to DIY your gate opener system, you can save thousands of dollars over its lifetime while gaining valuable knowledge about your installation and how the system operates. This understanding will make it easier to troubleshoot any issues and perform routine maintenance in the future.

Gate Crafters is the DIY factor.
Gate Crafters further adds to most of our gate openers for easier DIY installation. We have developed exclusive components (example: easy adjustable mounting brackets), customized instructions, and offer a full spectrum of accessories to truly cover all aspects of the installation of your gate opener. In addition we have the largest staff of factory trained technicians in the US.

    DIY Additions Top of Page

  • Order specific customized accessory wiring instructions
  • 360 degree accessories - we can take you through exit, entry, safety, power, and all other minute details to create a fully rounded kit.
  • Free 24/7/365 Installation Support
  • Free 7 day/week Technical Support
  • Largest Number of Certified Techs in America
  • Free assistance to find the right gate opener for your gate
  • Free systems design assistance to match the right accessories to fit your needs.
  • Extremely competitive pricing
  • Free shipping on all accessories purchased with a gate opener
  • We stock replacement parts
  • Many brands of many types of accessories, enough to handle just about any operational situation you can imagine

Gate Crafters has actual experience.
We have a testing area, we have factory and internal training courses, we build gates and have our own gates that are automated, we attended all industry trade shows in multiple countries and are a member of the AFA, and we pay visits to our chosen manufacturers' factories. All these factors are what have lead to us having so many exclusive additions. When you see and actually use as many products as we have you tend to have many ideas for minor changes that have major impacts. We acted on these ideas and have utilized them to help thousands of customers automate their gates.

    Tools & Supplies for InstallationTop of Page

The following tools and supplies are suggested in the manufacturer manual for optimal installation. They are not provided by Gate Crafters, however, most tools are available at local hardware stores for purchase or rental.

  • SAE Standard wrenches & sockets
  • Nut Driver
  • Wire Cutter/Strippers
  • Drill
  • Drill bits
  • Drill adapter for socket attachment
  • Pliers
  • Hack saw
  • Level and tape measure

Welding is the recommended method of securing the linear actuator mounts to the gate and hinge post. Bolt on brackets require frequent service to keep tight. They must be very securely attached (i.e. carriage bolts with lock nuts and washers). Lag type bolts are not recommended. Loose or unstable linear actuator mounts will result in improper operation.

Please refer to the Installation Manual for Tools Needed.

Depending on the type of gate, power supply and contributing environmental factors additional tools or supplies may be needed. Please review the product manual associated with this gate opener model for further details.

    Product Media Top of Page


Manual: USAutomatic Ranger 500 Installation Manual (Current Release)
Manual: USAutomatic Ranger 500 Installation Manuals for ALL Boards
QB ID: 020512-20W
