Does this operator support integration with vehicle detection loops and how are they wired?
▼

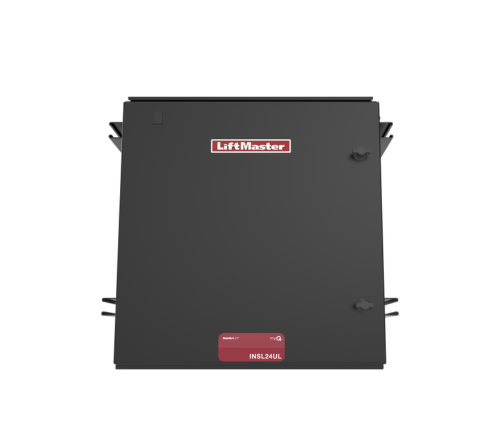

Yes. The LiftMaster INSL24UL industrial slide gate operator supports vehicle detection loops and provides dedicated inputs for external loop detectors. The operator can interface with plug-in loop detectors (such as the LiftMaster LOOPDETLM) or external vehicle detector relays. To wire them:
1. Install the inductive vehicle loop in the driveway/pavement.
2. Run loop lead wires back to the loop detector.
3. Connect the detector’s relay output to the appropriate INSL24UL input:
- Exit loop ? EXIT / COM
- Shadow loop ? SHADOW / COM
- Interrupt loop ? INTERRUPT / COM
4. Program the detector and verify gate operation.
What surge protection or electrical protection components are recommended for this industrial operator?
▼
Recommended Surge Protection and Electrical Protection Components include:
• Dedicated Electrical Circuit and Disconnect
• Surge Suppression Device (Recommended)
• Proper Grounding
• Low-Voltage Wiring Protection
• Battery Backup Protection (Optional)
• Loop Detector Protection
• Lightning Protection (High-Risk Areas)
In commercial or lightning-prone environments, adding a whole-building surge protector plus a secondary surge protector near the operator is strongly recommended to reduce the risk of control board and accessory failures.
How do I add or install additional safety accessories like photo eyes, loop detectors, or warning lights?
▼
• Swing gate operators require the installation of the first external monitored entrapment protection device to function.
• Every installation is unique. It is the responsibility of the installer to ensure that ALL entrapment zones are protected with an external monitored entrapment protection device, protecting both the open and close gate cycles.
• LiftMaster monitored external entrapment protection devices MUST be used with LiftMaster operators to meet UL325 requirements.
• Test ALL entrapment protection devices after completing installation of the operator. For testing instructions, refer to the manual provided with your entrapment protection device.
How do I install and set up the CSW200UL (mounting, power supply, and wiring)?
▼
1. Determine Location for Operator
2. Install the operator
3. Position Gate Bracket
4. Adjust the Operator Arm Length
5. Secure the Operator Arm
6. Install Entrapment Protection
7. Install Earth Ground
8. Power Wiring
Refer to the manual for more specific installation instructions for this operator.
Why does the gate stop, reverse, or hesitate during normal operation?
▼
• Check all Open and Close inputs for an active input.
• Check all vehicle detector inputs for an active detector.
Battery voltage must be 23.0 Vdc or higher. Charge batteries by AC or solar power or replace batteries.
• Check gate path for obstructions and remove. If there are no obstructions in gate path, manually disconnect the gate, and ensure it moves easily limit to limit. Repair gate as needed.
If your gate is still not operating properly, refer to the operator manual or call Gate Crafters technical support.
Why won’t the gate opener respond when I press the remote or app command?
▼
1. Activate wireless control and check XMITTER LED is on. Re-learn wireless control/transmitter to control board. Replace wireless control as needed.
2. Check Stop button is not “stuck on”
3. Check Reset button
4. Check if similar wired control operates correctly. Check if wireless controls work properly when within a few feet of the operator. Check the operator's antenna and antenna wire. Check other wireless controls or devices
Why does the gate stop, reverse, or hesitate during normal operation?
▼
Check the following:
1. Check all Open and Close inputs for an active input
2. Check all vehicle detector inputs for an active detector
3. Battery voltage must be 23.0 Vdc or higher. Charge batteries by AC or solar power or replace batteries
If your gate is still not operating properly, refer to the manual for specific troubleshooting or call Gate Crafters technical support.
How do I add or install additional safety accessories like photo eyes or loop detectors?
▼
1. Disconnect power to the gate operator before making any wiring changes.
2. Mount the photo eyes so the transmitter and receiver face each other across the gate opening or the entrapment zone being protected. Install them where they have a clear, unobstructed line of sight.
3. Run low-voltage wiring from the photo eye(s) to the operator control board through suitable conduit.
4. Connect the power leads to the accessory power terminals provided by the operator (typically 12 or 24 VDC, depending on the model and sensor requirements).
5. Connect the relay/output wires from the photo eye to the designated monitored safety or photo-eye input terminals on the controller.
6. Align the sensors until the status LEDs indicate proper alignment.
7. Test operation by interrupting the beam while the gate is moving:
- During closing, the gate should stop and reverse (or respond as configured by the controller).
- Verify the operator will not run if the monitored safety device is disconnected or improperly wired.
How do I program the travel limits (open/close positions) on this gate opener?
▼
1. Press and release the SET OPEN and SET CLOSE buttons simultaneously to enter limit setting mode.
2. Press and hold the OPEN button [CLOSE for close limit] on the remote control until the gate reaches the desired open position. The gate can be jogged back and forth using the OPEN and CLOSE buttons on the remote control.
3. Once the gate is in the desired open position, press and release the STOP button on the remote control.
4. Press and release the OPEN [CLOSE for close limit] button on the remote control again to set the open limit.
When the open or close limit is set properly the operator will automatically exit limit setting mode.
RPM Reversal diagnostic code on an LA400
▼
If having an issue with a Liftmaster LA400, LA500 or LA412 automatic driveway gate opener in that you are getting a 5 blink diagnostic RPM reversal code, please do the steps on the following page:
http://liftmaster.custhelp.com/app/answers/detail/a_id/4323
Which solenoid gate lock can I use with me solar powered LA412 gate opener.
▼
You can use either the
GC Lock or the
Estate Swing lock with the LA412.
The lock will draw its power directly from the battery of the gate opener and is great for solar because it only uses power for 2-4 seconds at the beginning of a cycle and otherwise is not used.
Why does the gate stop, reverse, or hesitate during operation?
▼
1. Obstruction sensing is triggering - The operator may interpret increased load as an obstruction and stop or reverse to protect against entrapment.
2. Gate movement is too stiff - A properly installed gate should move smoothly with minimal resistance. If the gate binds, the operator may stop or reverse because the motor is working harder than expected.
3. Reverse/obstruction sensitivity is set too high: Verify that the gate still reverses when it actually encounters resistance (required for safety).
4. Incorrect travel limits: Reset and reprogram limits if necessary.
5. Power or battery issues
6. Safety devices may be interrupting operation
If problems persist, contact Gate Crafters technical support or refer to the operator manual.

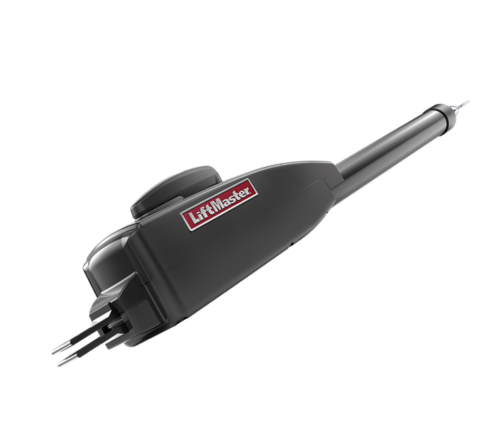

How do I install and set up the LA412XL opener, including the solar panel and control box?
▼
1. Attach brackets to Operator
2. Determine Mounting Location
3. Position the operator
4. Secure the brackets
5. Install the control box
6. Use the proper earth ground rod and install within 3 feet of the operator
7. Wire the operator arm to the control board
8. Install entrapment protection
9. Install solar panels
10. Wire batteries and/ or solar panels
Why won’t the gate opener respond to remotes or app commands?
▼
1. Activate wireless control and check XMITTER LED is on. Re-learn wireless control/transmitter to control board. Replace wireless control as needed.
2. Check Stop button is not “stuck on”
3. Check Reset button
4. Check if similar wired control operates correctly. Check if wireless controls work properly when within a few feet of the operator. Check the operator's antenna and antenna wire. Check other wireless controls or devices
How do I manually open the gate during a power outage or when battery backup is in use?
▼
In case of a power failure, the operator can be disengaged from the gate. With an operator, the release action may sometimes feel stiff/jerky, which is normal and has no effect on function.
It is normal for the operator to run slow right after a disconnect or complete loss of AC/ battery power (the operator will need to run a complete open and close cycle).
RELEASE
1. Insert the key into the lock.
2. Turn the key counter-clockwise 180°.
3. Turn the release lever counter-clockwise 180°.
The operator is in manual mode and the gate can be opened and closed manually. The lock relay will activate then turn off after 2 minutes to conserve power.
ENGAGE
1. Turn the release lever clockwise 180°. This engages the motor.
2. Turn the key clockwise 180°. This locks the release lever.
3. Remove the key and store in a safe place. The operator is now engaged.
Is there a recommended maintenance log or checklist for daily/weekly/monthly inspections?
▼
The recommended maintenance requires inspection monthly of:
• Test every monitored entrapment protection device (photo eyes and edge sensors).
• Verify the gate reverses correctly when an obstruction is detected.
• Inspect wiring and conduit for damage or moisture intrusion.
• Check battery backup condition and connections.
• Inspect mounting bolts, sprockets, and mechanical linkages for wear or looseness.
• Operate the manual disconnect to verify it functions correctly, then re-engage it.
What maintenance is required to ensure long-term reliable operation?
▼
• Inspect the gate for smooth, balanced movement. The gate should swing freely without binding or excessive resistance.
• Check all mounting hardware on the operator, gate brackets, and hinges, and tighten any loose fasteners.
• Inspect the operator arm and pivot points for wear or damage.
• Test all entrapment protection devices, including monitored photo eyes and edge sensors, to verify the gate stops and reverses correctly when activated.
• Verify the manual disconnect operates properly and can be re-engaged securely after use.
• Check the warning signs and replace any that are damaged or no longer legible.
How do I adjust the gate’s travel limits and operational settings on the control board?
▼
1. Make sure the gate is closed.
2. Press and release the OPEN test button to open the gate.
3. Press the STOP test button when the desired OPEN limit is reached.
4. Adjust the limit nut or cam so it makes contact with the OPEN limit switch at this position. If the gate stops early, move the limit nut or cam to allow for additional travel.
5. Press and release the CLOSE test button to close the gate.
6. Press the STOP test button when the desired CLOSE limit is reached. Adjust the limit nut or cam so it makes contact with then CLOSE limit switch at this position. If the gate stops early, move the limit nut to allow for additional travel.
Is the CSW200UL compliant with UL 325 safety standards and what safety devices are required?
▼
The CSW200UL is designed to comply with UL 325 requirements, by installing the required monitored entrapment protection devices. The operator will not meet the standard if these devices aren't installed. To comply with UL 325 safety standards:
- At least two independent monitored entrapment protection devices (Photo Eyes and Edge Sensors) are required for each entrapment zone.
- The built-in (inherent) entrapment sensing system counts as one of the required devices.
- A second independent monitored device must be installed where an entrapment zone exists.
- If there is no entrapment zone in one direction of travel, the operator's inherent sensing is sufficient for that direction.
How do I install and set up the CSW24UL (mounting, power connections, and wiring)?
▼
1. Determine the Operator Location
2. Install the Concrete Pad and Mount the Operator
3. Install the Gate Bracket and Operator Arm
4. Install Required UL 325 Safety Devices
5. Install the Earth Ground Rod
6. Connect AC Power
7. Connect the Batteries
8. Connect Low-Voltage Control Wiring
9. Dual-Gate Installations
10. Finish Setup
If further installation assistance is required, refer to the operator manual, or contact Gate Crafters' technical support.
How do I configure and use MyQ® technology for remote monitoring and control?
▼
To program the operator to the LiftMaster Internet Gateway:
1. Connect the ethernet cable to the LiftMaster Internet Gateway and the router
2. Connect power to the LiftMaster Internet Gateway.
3. Create an online account by visiting www.myliftmaster.com.
4. Register the LiftMaster Internet Gateway.
5. Use an internet enabled computer or smartphone to add devices. The LiftMaster Internet Gateway will stay in learn mode for three minutes.
6. Press the Learn button twice on the primary operator (the operator will beep as it enters learn mode).
The LiftMaster Internet Gateway will pair to the operator if it is within range and the operator will beep if programming is successful.
What safety devices are required (e.g., photo eyes or edge sensors) and how are they installed?
▼
The use of 2 external safety devices is required to comply with UL 325 safety requirements, including:
- Monitored photoelectric sensors (photo eyes) – Detect a person, vehicle, or object crossing the gate path without physical contact.
- Monitored edge sensors (sensing edges) – Detect physical contact with an obstruction on the moving gate.
These devices are used in conjunction with the operator's built-in obstruction sensing system to provide compliant entrapment protection. To install these safety devices, wire them through the control board. For specific installation instructions, refer to the operator manual.
How do I manually release the gate during a power outage or emergency?
▼
To manually release the gate:
1. Turn off power to the operator (if possible)
2. Unlock the operator cover
3. Disengage the drive system
4. Move the gate manually
5. Return the operator to automatic mode

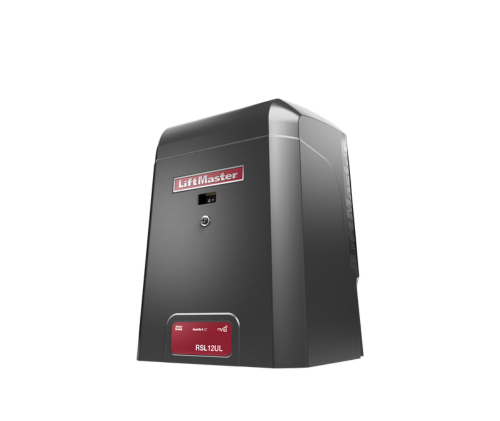

Is the RSL12UL compliant with UL 325 and other safety standards?
▼
Yes. The LiftMaster RSL12UL is UL 325 listed and is designed to meet the safety requirements for automated vehicular slide gate operators when installed correctly with the required safety devices. UL 325 compliance requires external monitored safety devices to be installed.
Compatible devices include:
- Monitored photoelectric sensors (photo eyes)
- Monitored edge sensors
The operator manufacturer specifically notes that external entrapment protection devices must be added to meet UL 325 requirements.
How do I program or pair remote transmitters or access controls with the CSW200UL?
▼
1. Press the programming button on the control board until the LED indicator begins to flash.
Within 30 seconds, press and hold the desired button on the remote or access control device.
2. Release the button when the LED indicator on the control board blinks or the motor beeps, indicating successful pairing.
3. Repeat for additional remotes or access devices.
4. Always follow the manual for detailed pairing instructions and troubleshooting.
If further assistance is required, refer to the operator manual, or contact Gate Crafters' technical support.
Can the CSW200UL integrate with myQ® or other smart access control systems?
▼
The CSW200UL can be integrated with myQ. To program the operator to the LiftMaster Internet Gateway:
1. Connect the ethernet cable to the LiftMaster Internet Gateway and the router.
2. Connect power to the LiftMaster Internet Gateway.
3. Create an online account by visiting www.myliftmaster.com.
4. Register the LiftMaster Internet Gateway.
5. Use an internet enabled computer or smartphone to add devices. The LiftMaster Internet Gateway will stay in learn mode for three minutes.
6. Press the Learn button twice on the primary operator (the operator will beep as it enters learn mode). The LiftMaster Internet Gateway will pair to the operator if it is within range and the operator will beep if programming is successful
What safety and entrapment protection devices are required to meet UL 325 compliance?
▼
• A minimum of two independent monitored entrapment protection devices are required to be installed at each entrapment zone.
• It is the responsibility of the installer to install external monitored entrapment protection devices for each entrapment zone
• The operator will only operate with a minimum of two independent monitored entrapment protection devices installed in either the open or closed direction. If no entrapment zone exists in the other direction, an external entrapment protection device is NOT required in that direction.
• This operator has an inherent entrapment protection device built-in. The installer MUST provide one additional entrapment protection device for each entrapment zone
How do I adjust the gate’s opening speed, closing speed, and other motion parameters?
▼
• The factory setting is minimum speed.
• Turn the dial to increase or decrease the overall gate travel speed.
• The operator supports a 90° travel time of approximately 13 to 36 seconds, depending on the arm configuration.
• Use the lowest speed that provides reliable operation, as higher speeds increase the risk to pedestrians.
• On dual-gate systems, set both operators to the same speed, or make the gate that closes first slightly faster for smoother synchronized operation.
Are there recommended service intervals for professional inspection or servicing?
▼
• Test the operator monthly. The gate MUST reverse on contact with an object or reverse when an object activates the noncontact sensors. After adjusting the force, speed, or the limit of travel, retest the gate operator. Failure to adjust and retest the gate operator properly can increase the risk of INJURY or DEATH.
• Use the manual disconnect release ONLY when the gate is NOT moving.
• Keep gates properly maintained. Read this manual carefully. Have a qualified service person make repairs to gate hardware.
• ALL maintenance MUST be performed by a Trained Gate Systems Technician.
• Activate gate ONLY when it can be seen clearly, is properly adjusted and there are no obstructions to gate travel.
Can this gate opener integrate with myQ® or other smart access control platforms, and how do I set that up?
▼
1. Connect the ethernet cable to the LiftMaster Internet Gateway and the router.
2. Connect power to the LiftMaster Internet Gateway.
3. Create an online account by visiting www.myliftmaster.com.
4. Register the LiftMaster Internet Gateway.
5. Use an internet enabled computer or smartphone to add devices. The LiftMaster Internet Gateway will stay in learn mode for three minutes.
6. Press the Learn button twice on the primary operator (the operator will beep as it enters learn mode). The LiftMaster Internet Gateway will pair to the operator if it is within range and the operator will beep if programming is successful.
What routine maintenance or seasonal care does this solar gate opener require for reliable long-term operation?
▼
• Entrapment Protection Devices: Check and test for proper operation every month
• Warning Signs: Make sure they are present and replace if worn or broken every month
• Manual Disconnect: Check and test for proper operation every 6 months
• Gate: Inspect for wear or damage every month
• Accessories: Check all for proper operation every 6 months
• Electrical: Inspect all wire connections every 6 months
• Mounting Hardware: Check for tightness every 6 months
• Operator: Inspect for wear or damage every 6 months
• Batteries: Replace every 3 years
How do I enable or disable auto-close and how do I set the delay time?
▼
To Enable Auto-Close (Timer-to-Close):
1. Locate the TIMER-TO-CLOSE (TTC) adjustment dial on the INSL24UL control board.
2. Rotate the TTC dial clockwise from the OFF position to enable automatic closing.
3. Set the dial to the desired delay time. The adjustable range is:
- 0–180 seconds
- 0 seconds = OFF (disabled)
To Disable Auto-Close:
1. Turn the TIMER-TO-CLOSE (TTC) dial fully counterclockwise to OFF.
2. With TTC OFF, the gate will remain open until another command is received from a remote, access control, keypad, or other open/close input.
What maintenance schedule should I follow for reliable high-traffic performance?
▼
Following a preventive maintenance schedule and increasing the inspection frequency on gates with heavy cycle counts. High-cycle usage may require more frequent maintenance checks.
• Test all entrapment protection devices (built-in and external) to ensure they function correctly.
• Verify warning signs are present, legible, and replace any that are worn or damaged.
• Inspect the gate for wear, damage, and confirm it still complies with ASTM F2200 safety requirements.
• Disconnect all AC power, solar power, and batteries before servicing the operator.
• After any maintenance involving the drive chain, verify and reset travel limits if necessary.
• During service visits, use a digital voltmeter to confirm the incoming supply voltage is within ±10% of the operator's rated voltage.
• Test the gate operator monthly to ensure it reverses properly when an obstruction is detected or when monitored safety devices are activated.

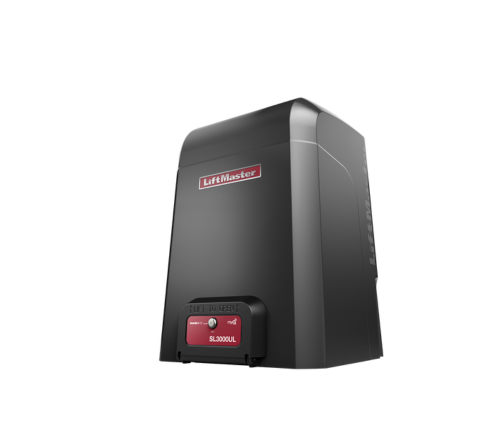

How do I ensure the SL3000UL meets UL 325 entrapment protection requirements in my installation?
▼
• A minimum of two independent monitored entrapment protection devices are required to be installed at each entrapment zone
• Every installation is unique. It is the responsibility of the installer to install external monitored entrapment protection devices in each entrapment zone
• This vehicular slide gate operator will operate only after installation of a minimum of two independent monitored entrapment protection devices in each direction; two in the open direction and two in the close direction.
• Entrapment protection device types include inherent (built into the operator), monitored external photoelectric sensors or monitored external edge sensors
• This operator is provided with an inherent entrapment protection device built into the operator that serves as one of the two independent devices
How do the safety sensors (photo eyes or monitored edges) affect gate operation and closure?
▼
Photo eyes create an invisible beam across the gate opening.
• If the beam is interrupted while the gate is closing, the operator will immediately stop and reverse the gate to the fully open position to prevent entrapment.
• If the beam is already blocked before a close command is given, the gate will not begin closing until the obstruction is removed.
• During opening, photo eyes generally do not stop or reverse the gate unless configured for a specific application.
Monitored edge sensors are installed on the leading edge or other pinch points of the gate.
• If an edge sensor contacts an obstruction during gate travel, the operator immediately reacts to reduce the risk of injury.
• During a closing cycle, activation of a monitored edge causes the gate to stop and reverse.
• Depending on the installation and sensor location, an edge activated during opening may cause the operator to stop or reverse as required by UL 325.
What environmental conditions can the SL3000UL operate in safely?
▼
The SL3000UL is designed for outdoor commercial and residential use and typically operates in temperatures ranging from -4°F to 140°F. The unit is weather-resistant but should not be submerged or exposed to severe flooding. Proper drainage and enclosure protection are recommended.
What is included in the HDSW24UL gate operator kit?
▼
• HDSW24UL heavy-duty swing gate operator (motor/gearbox assembly)
• Integrated control box with the main control board
• Two 12 V, 7 Ah batteries (24 VDC battery backup system)
• Mounting hardware and brackets for installing the operator
• Gate arm and connection hardware
• Manual disconnect mechanism for emergency manual operation
• Installation manual and wiring documentation
• Warning signs required for UL 325-compliant installations
How do I manually release or operate the gate during a power outage?
▼
To manually release the gate:
• Stop gate operation
• Set the reset switch to the RESET position.
• Remove the top (cludge) cover.
• Rotate the manual disconnect handle 180°
• Move the gate manually
To return the operator to normal:
• Move the gate to a suitable position.
• Rotate the manual disconnect handle back to its original position and push it down to fully re-engage the drive.
• Set the reset switch back to NORMAL OPERATION.
• Reinstall and secure the top cover.
• Test the operator to verify the gate opens and closes normally.
Why won’t the gate open or close when commanded by the remote or control input?
▼
1. Activate wireless control and check XMITTER LED is on. Re-learn wireless control/transmitter to control board. Replace wireless control as needed.
2. Set reset switch to NORMAL OPERATION
3. Check if similar wired control operates correctly. Check if wireless controls work properly when within a few feet of the operator. Check the operator's antenna and antenna wire. Check other wireless controls or devices.
Why does the gate stop, reverse, or behave unexpectedly during operation?
▼
• Check all open and close inputs for an active input
• Check all vehicle detector inputs for an active detector
• Battery voltage must be 23 Vdc or higher. Charge batteries by AC or solar power or replace batteries
• If there are no obstructions in gate path, manually disconnect the gate, and ensure it moves easily limit to limit. Repair gate as needed.
How do I troubleshoot diagnostic LED indicators and error codes on the control board?
▼
• Code 31 - Main Control board has experienced an internal failure. Disconnect all power, wait 15 seconds, then reconnect power (reboot). If issue continues, replace main control board
• Code 40 - Battery overvoltage. Too much voltage on the battery. Check harnesses. Make sure there is NOT a 24V battery on a 12V system.
• Code 42 - No battery at boot up. Check battery connections and installation. Replace batteries if depleted to less than 20V on a 24V system or less than 10V on a 12V system. Make sure there is NOT a single 12V battery on a 24V system
• Code 46 - Wireless edge battery low. Replace Batteries in wireless edge.
For the full list of diagnostic codes, refer to the manual for more specific problems.
What safety sensors (photo eyes, edges) are required and how should they be installed?
▼
The CSW200UL requires monitored entrapment protection using photo eyes, edge sensors, or both. At minimum, install one monitored safety device before operation, but a complete installation typically includes photoelectric protection for vehicle/person detection plus edge sensors at pinch points and gate edges.
How do I manually operate the gate during a power outage?
▼
The gate can be manually operated during a power outage by using the operator’s manual disconnect release. The release disengages the gate from the motor drive so the gate can be moved by hand. To manually operate the gate:
1. Stop the gate completely
2. Access the manual disconnect
3. Disengage the operator
4. Move the gate manually
Why won’t the gate open when using the remote or access controller?
▼
If the gate does not open when using a remote transmitter, keypad, card reader, or other access control device, the problem is usually related to power, programming, wiring, safety inputs, or control board settings. Some common causes and troubleshooting steps that may help:
1. Check Operator Power
2. Verify the Remote Transmitter Is Programmed
3. Check Access Control Wiring
4. Check Safety Device Inputs
5. Verify the Gate Is Not in Stop or Lockout Mode
6. Check Limit Switch Operation
7. Inspect the Control Board Inputs and LEDs
What do the diagnostic lights or error codes mean and how can I troubleshoot them?
▼
The LiftMaster RSL12UL uses a combination of LED indicators, a diagnostic display, and audible alerts to help identify operating problems. When the gate stops, reverses, or will not move, the diagnostic information on the control board is the best place to start troubleshooting. To access the diagnostic information:
1. Open the operator cover.
2. Locate the control board diagnostic display and LEDs.
3. Check the displayed code or LED pattern.
4. Use the fault information to identify the affected system:
- Safety devices
- Power/battery
- Limits
- Motor/encoder
- Accessory inputs
What maintenance is required to keep the RSL12UL operating reliably?
▼
- Entrapment Protection Devices: Check and test inherent (built into the operator) and external devices for proper operation at least once a month
- Warning Signs: Make sure they are present and replace if worn or broken at least once a month
- Manual Disconnect: Check and test for proper operation at least once every 6 months
- Drive Chain and Sprockets: Check for excessive slack and lubricate at least once a month
- Belt and Pulley: Check for excessive slack, wear or damage at least once every 6 months
- Gate: Inspect for wear or damage at least once a month
- Accessories: Check all for proper operation at least once every 6 months
- Electrical: Inspect all wire connections at least once every 6 months
- Chassis Mounting Bolts: Check for tightness at least once every 6 months
- Operator: Inspect for wear or damage at least once every 6 months
- Batteries: Replace at least once every 3 years
How do I manually open the gate during a power outage or battery backup operation?
▼
In case of a power failure, the operator can be disengaged from the gate. With an operator, the release action may sometimes feel stiff/jerky, which is normal and has no effect on function.
NOTE: It is normal for the operator to run slow right after a disconnect or complete loss of AC/battery power (the operator will need to run a complete open and close cycle).
Release
1. Insert the key into the lock.
2. Turn the key counter-clockwise 180°.
3. Turn the release lever counter-clockwise 180°. The operator is in manual mode and the gate can be opened and closed manually. The lock relay will activate then turn off after 2 minutes to conserve power.
Engage
1. Turn the release lever clockwise 180°. This engages the motor.
2. Turn the key clockwise 180°. This locks the release lever.
3. Remove the key and store in a safe place. The operator is now engaged.
How do I install the RSL12UL slide gate operator?
▼
1. Determine Location for Operator
2. Install Operator
3. Attach the Chain
4. Install Entrapment Protection
5. Install Earth Ground Rod
6. Power Wiring
7. Install the Cover
8. Program and test the operator
9. Install Warning Signs
For more specific installation instructions, please refer to the operator's manual.
How do I set and adjust the travel limits and speed settings on the RSL12UL?
▼
1. Verify the gate is properly installed and moves freely by hand.
2. Press and release the SET OPEN and SET CLOSE buttons at the same time to enter Limit Setting Mode.
3. Press and hold the appropriate MOVE GATE button to move the gate to the desired open or closed position.
4. Press the corresponding SET OPEN or SET CLOSE button to save that limit.
5. Move the gate to the opposite end of travel using the MOVE GATE button.
6. Press the appropriate SET button again to save the second limit.
7. Run the gate through one complete open and close cycle. The operator automatically performs its Automatic Force Setup and exits Limit Setting Mode when programming is complete.
How do I program or pair remotes, keypads, or access control devices with the RSL12UL?
▼
The LiftMaster RSL12UL can store up to 50 Security+ 2.0® remote controls or KPW250 wireless keypads, plus 2 wireless keyless entry PINs. Programming is performed using the LEARN button on the operator's control board. To program the remote:
1. Press and release the LEARN button.
2. The operator beeps and the green XMITTER LED illuminates.
3. Programming mode remains active for 30 seconds.
4. Press the OPEN button on the control board.
5. Press the desired button on the remote control.
6. The operator beeps and the XMITTER LED turns off, confirming successful programming.
Does the RSL12UL integrate with myQ® or other smart control systems, and how do I set that up?
▼
Yes, this operator does integrate with myQ®:
1. Connect the Ethernet cable to the LiftMaster Internet Gateway and the router.
2. Connect power to the LiftMaster Internet Gateway.
3. Create an online account by visiting www.myliftmaster.com.
4. Register the LiftMaster Internet Gateway.
5. Use an internet enabled computer or smartphone to add devices. The LiftMaster Internet Gateway will stay in learn mode for three minutes.
6. Press the Learn button twice on the primary operator (the operator will beep as it enters learn mode). The LiftMaster Internet Gateway will pair to the operator if it is within range and the operator will beep if programming is successful
What safety devices are required and how should they be installed?
▼
To meet UL 325 requirements:
- A minimum of two independent entrapment protection devices are required for each entrapment zone.
- One of these may be the operator's built-in inherent sensing system.
- The second must be an external monitored device, such as a photo eye or monitored edge sensor.
- The same type of protection cannot be counted twice (for example, two inherent systems do not satisfy the requirement).
For a compliant installation, also:
- Mount all access controls at least 6 ft (1.8 m) from the moving gate so users cannot reach through or over the gate while operating it.
- Provide a separate pedestrian entrance; pedestrians should never use the vehicular gate.
- Install the supplied warning signs on both sides of the gate in clear view.
- Ensure exposed rollers are guarded and any hazardous openings in the gate are protected.
Why won’t the gate open when I use the remote or keypad?
▼
1. No power to the operator
2. Remote or keypad is not programmed
3. Dead remote battery
4. Wrong radio frequency or incompatible transmitter
5. Safety devices are preventing operation
6. Gate is in manual release mode
7. Travel limits have not been programmed
8. Gate is obstructed or binding
9. Access control wiring problem
If further troubleshooting is required, refer to the operator manual, or contact Gate Crafters' technical support.
Why does the gate stop, reverse, or behave unexpectedly during operation?
▼
1. An obstruction is detected
2. A monitored safety device is activated
3. The gate is binding or difficult to move
4. Travel limits are incorrect
5. Reversal force is set improperly
6. Low battery or inadequate power
7. Manual release not fully engaged
If the gate continues to stop or reverse after these checks, review the diagnostic code displayed on the control board. A full list of diagnostic codes can be found in the operator manual.
How do I manually operate the gate if the power is out?
▼
To manually operate the gate:
1. Make sure the gate is not moving.
2. Press the Reset/Disconnect switch to place the operator in the RESET/DISCONNECT position.
3. Release the handle on the operator arm. This disengages the operator from the gate so it can move freely.
4. Push the gate open or closed by hand.
- On a dual-gate system, you must release the handle on both operators before moving the gates manually
Why won’t the gate open when I press the remote or app command?
▼
1. Verify the operator has power
2. Check the remote or wireless device
3. Confirm the operator is not in manual release mode
4. Inspect the safety devices
5. Check for an obstruction or locked gate
6. Verify accessory inputs
7. Review control board diagnostics
8. Confirm travel limits and setup
If the operator still does not respond after these checks, further troubleshooting of the control board, motor, or connected accessories may be required.
Why does the gate stop or reverse during travel unexpectedly?
▼
1. Remove any physical obstruction from the gate path.
2. Verify all photo eyes and edge sensors are clean, aligned, and functioning.
3. Disconnect the operator and confirm the gate moves freely by hand.
4. Inspect the battery and power supply.
5. Verify the travel limits are programmed correctly.
6. Check the control board's diagnostic LEDs or error messages for additional fault information.
How do I troubleshoot common error codes shown on the diagnostic display?
▼

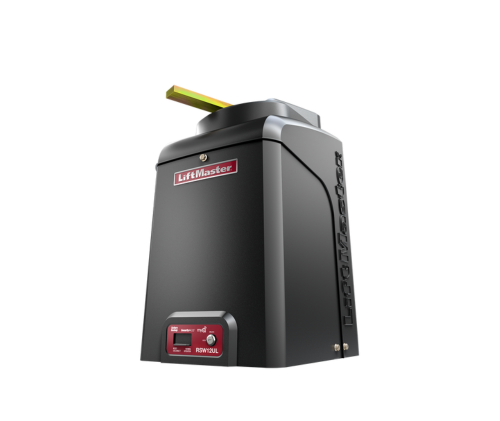

The LiftMaster RSW12UL includes a diagnostic display that shows error codes (Er) and status codes (St) to help identify faults. When an error appears, the operator generally disables or limits operation until the condition is corrected. If an error code appears:
1. Record the displayed error code before cycling power.
2. Consult the diagnostic table to identify the affected system.
3. Inspect the related wiring for loose terminals, corrosion, or damaged insulation.
4. Verify power to the operator and connected accessories.
5. Check all monitored safety devices, ensuring photo eyes and edge sensors are aligned, connected, and functioning.
6. Inspect the gate mechanically to confirm it moves smoothly without excessive resistance.
7. Correct the fault, then clear the error by cycling the operator or following the reset procedure described in the manual.
What maintenance is required to keep the RSW12UL operating reliably?
▼
At least once each month:
- Operate the gate through a complete open-and-close cycle.
- Verify the gate reverses when it contacts an obstruction.
- Test every monitored photo eye and edge sensor individually.
- If you adjust the force or travel limits, retest all safety functions immediately to ensure the operator remains compliant with UL 325 requirements.
Is the RSW12UL UL325 compliant and what additional devices are needed for code compliance?
▼
The RSW12UL is UL325 compliant, maintaining safety standards. To maintain these standards:
- A minimum of two independent* monitored entrapment protection devices are required to be installed at each entrapment zone
- Every installation is unique. It is the responsibility of the installer to install external monitored entrapment protection devices in each entrapment zone
- This vehicular swing gate operator will operate only after installation of a minimum of two independent* monitored entrapment protection devices in either the open or close direction. If no entrapment zone exists in the other direction of gate travel, then the inherent (built into the operator) is all that is required in that direction.
- Entrapment protection device types include inherent (built into the operator), monitored external photoelectric sensors or monitored external edge sensors
- This operator is provided with an inherent entrapment protection device built into the operator that serves as one of the two independent devices
How do I adjust the open/close limits and speed settings?
▼
1. Press and release the SET OPEN and SET CLOSE buttons at the same time to enter Limit Setting Mode.
2. Press and hold one of the MOVE GATE buttons until the gate reaches the desired open or closed position.
3. Press the corresponding SET OPEN or SET CLOSE button to save that limit.
4. Move the gate to the opposite end of travel using the MOVE GATE buttons.
5. Press the appropriate SET button again to save the second limit.
6. Run the gate through one complete open and close cycle. During this cycle, the operator automatically learns the force required to move the gate.
7. When the learning process is complete, the operator exits Limit Setting Mode automatically.
What is included in the RSL12UL slide gate operator kit?
▼
- RSL12UL slide gate operator (motor unit)
- Operator cover
- 12 VDC, 7 Ah backup battery
- LiftMaster LMRRUL monitored retro-reflective photoelectric safety sensor
- 5 ft. monitored edge sensor kit
- 30 ft. of #41 drive chain
- Eye bolt kit (for chain attachment)
- Two warning signs
- Warranty card
- Documentation/installation packet (manual and supporting documents)
Why won’t the gate respond when I use remotes, keypads, or MyQ app commands?
▼
1. Activate wireless control and check XMITTER LED is on. Re-learn wireless control/transmitter to control board. Replace wireless control as needed.
2. Check Stop button is not “stuck on”
3. Check Reset button
4. Check if similar wired control operates correctly. Check if wireless controls work properly when within a few feet of the operator. Check the operator's antenna and antenna wire. Check other wireless controls or devices
Can this gate operator be integrated with access control systems (e.g., keypads, intercoms)?
▼
The CSW200UL is intended to work with most standard gate access control equipment—including keypads, intercoms, telephone entry systems, card readers, RFID readers, push buttons, loop detectors, and remote receivers—provided they are wired according to the installation manual and all required UL 325 safety devices are installed and tested.
What routine maintenance or seasonal care does this commercial gate opener require?
▼
- Entrapment Protection Devices: Check and test inherent (built into the operator) and external devices for proper operation at least once every month
- Warning Signs: Make sure they are present and replace if worn or broken at least once every month
- Manual Disconnect: Check and test for proper operation at least once every 6 months
- Belt and Pulley: Check for excessive slack, wear or damage at least once every 6 months
- Gate: Inspect for wear or damage at least once every month
- Accessories: Check all for proper operation at least once every 6 months
- Electrical: Inspect all wire connections at least once every 6 months
- Chassis Mounting Bolts: Check for tightness at least once every 6 months
- Operator: Inspect for wear or damage at least once every 6 months
What gate size and weight is this CSW24UL commercial swing gate operator designed to handle?
▼
The maximum gate weight the CSW24UL can handle is 1200 lbs and the max gate size it can handle is 18 feet.
How do I install the RSW12UL swing gate operator?
▼
1. Verify the gate before installation
2. Determine the operator location
3. Install the concrete pad and mount the operator
4. Attach the gate bracket
5. Adjust and secure the operator arm
6. Install required safety devices
7. Install the earth ground and power
8. Configure dual-gate operation (if applicable)
9. Set travel limits and test operation
10. Install the cover
For specific installation instructions, refer to the operator manual, or contact Gate Crafters' technical support.
How do I program or pair the remote controls with the operator?
▼
The LiftMaster RSW12UL can store up to 50 Security+ 2.0® remote controls or KPW250 wireless keypads and 2 keyless entries (one PIN each). To program the remote controls with the operator:
1. Press and release the LEARN button on the operator.
- The operator beeps and the green XMITTER LED illuminates.
- Programming mode remains active for about 30 seconds.
2. Press the OPEN button on the control board.
3. Press the desired button on the remote control.
4. If programming is successful, the operator beeps and the green LED turns off automatically.
Does the RSW12UL support myQ® smartphone control and how do I set that up?
▼
To program the operator to the LiftMaster Internet Gateway:
1. Connect the ethernet cable to the LiftMaster Internet Gateway and the router
2. Connect power to the LiftMaster Internet Gateway.
3. Create an online account by visiting www.myliftmaster.com.
4. Register the LiftMaster Internet Gateway.
5. Use an internet enabled computer or smartphone to add devices. The LiftMaster Internet Gateway will stay in learn mode for three minutes.
6. Press the Learn button twice on the primary operator (the operator will beep as it enters learn mode).
The LiftMaster Internet Gateway will pair to the operator if it is within range and the operator will beep if programming is successful.
How do I install the CSW200UL swing gate operator?
▼
1. Verify the gate operates freely.
2. Pour and prepare the concrete pad with separate conduits.
3. Mount and level the operator.
4. Weld and attach the gate arm.
5. Connect power and earth ground.
6. Wire controls and monitored safety devices.
7. Set handing, travel limits, and force.
8. Test all safety functions.
9. Install the protective covers and place the operator into service.
For more specific installation instructions, refer to the operator manual, or contact Gate Crafters' technical support.
Where can I find the manual or technical support for this model?
▼
All documentation can be found on the Gate Crafters website. The online manual can be found on the bottom of the product page for the CSW200UL and leads to a downloadable PDF for convenience. Technical support is available from 9AM - 9PM ET 7 days a week by calling 813-792-9726.
How do I set and adjust the soft-start and soft-stop parameters for smoother gate motion?
▼
To set and adjust the soft start and soft stop:
1. Access the programming menu
2. Navigate to the Motion/Operator settings
3. Adjust the values
4. Save the settings
5. Test the gate
Properly tuned Soft Start and Soft Stop settings can significantly reduce wear on the motor, gearbox, chain, and gate hardware while providing quieter, smoother operation, particularly on long or heavy industrial slide gates. For specific instructions on adjusting soft start and soft stop settings, refer to the operator manual.
What are the typical warranty terms and how do I register a claim?
▼
LiftMaster warrants to the first purchaser of this product, for the structure in which this product is originally installed, that it is free from defect in materials and/or workmanship for a period of 5 year commercial installation from the date of purchase [and that the INSL24UL and IHSL24UL is free from defect in materials and/or workmanship for a period of 5 year commercial installation from the date of purchase].
What is the expected lifespan of the motor and gear components under continuous duty?
▼
The lifespan of the motor and gear components depends on:
- Proper installation and alignment
- A gate that moves freely without excessive friction
- Gate weight remaining within the 2,200 lbs and 70 ft design limits
- Correct adjustment of travel limits and obstruction sensing
- Routine inspection and maintenance
- Operating environment (dust, moisture, corrosion, extreme temperatures)
- Frequency of daily gate cycles.
How do I update or upgrade firmware or control board settings?
▼
Some configurations allow firmware or parameter updates via service tools or authorized technicians. Most adjustments are made through onboard programming menus rather than firmware updates.
What accessories and options are supported and how do they work?
▼
• Remote Controls
• Keyless Entry
• Wireless commercial keypad
• Liftmaster Internet Gateway
• Loop Detectors
• Post-mounting plate
• Remote antenna extension kit
These accessories are used to ensure you get the most out of your gate operator. They work to ensure safety and proper operation of the gate.
Can the system operate in high-humidity or corrosive environments, and what protective measures are needed?
▼
The INSL24UL is suitable for outdoor operation, including humid climates. For coastal or corrosive industrial environments, the best protection comes from:
- Proper drainage and sealed conduit entries
- Keeping the enclosure closed and weather-tight
- More frequent inspections and preventive maintenance
- Corrosion protection for exposed hardware and electrical connections
- Regular cleaning to remove salt, dirt, or chemical residue
These measures help maintain reliable operation and extend the service life of the gate operator in demanding environmental conditions.
What type of power supply does this operator require?
▼
The main AC Supply for this operator is 120V and 4 Amps, or 240V and 2 Amps. A 24 VDC battery system (two 12 V batteries wired in series) is used for backup operation during AC power loss and is kept charged by the built-in charger.
How do I install the HDSW24UL swing gate operator?
▼
1. Determine Location for Concrete Pad and Operator
2. Install the concrete pad
3, Mount the operator
4. Attach the gate bracket and operator arm
5. Install required entrapment protection
6. Install an earth ground
7. Connect power and wiring
8. Program and adjust the operator
9. Install the covers and warning signs
10. Test the complete system
How do I program or pair remote controls and access devices with this system?
▼
The LiftMaster HDSW24UL uses a built-in Security+ 2.0® radio receiver and can store up to 50 Security+ 2.0 remote controls or KPW250 wireless keypads, plus 2 wireless keyless entries. To program them:
• Press and release the LEARN button on the control board. The operator beeps and the green XMITTER LED lights.
• Within 30 seconds, press the OPEN button on the control board.
• Press the desired button on the remote control.
• The operator beeps and exits programming mode when the remote has been learned successfully.
What safety devices (photo eyes, monitored sensors, edge protection) are required and how should they be installed?
▼
1 monitored photo-eye pair across the driveway and 1 monitored leading-edge sensor on the gate meets the “two independent monitored devices per entrapment zone” requirement for commercial CSW24UL swing-gate installations. They should be installed and wired through the control board. For specific wiring instructions for these safety devices, refer to the operator manual.
Why does the gate stop, reverse, or hesitate during normal operation?
▼
If a LiftMaster CSW24UL gate stops, reverses, or hesitates during operation, the operator is usually responding to an obstruction, a safety device input, or an installation/setup issue. The operator continuously monitors motor current and all connected monitored safety devices, and it will stop or reverse the gate whenever it detects a condition that could indicate an entrapment hazard.
Can this gate operator be integrated with additional access control systems (e.g., keypads, intercoms, loops)?
▼
Yes, the CSW24UL can be integrated with a variety of access control systems, such as:
- Keypads: Wired or wireless keypads can be connected to the control board, allowing for secure access via PIN code entry.
- Intercom Systems: This gate opener can be integrated with intercom systems, enabling two-way communication and gate control.
- Loop Detectors: Loop detectors can be installed in the ground to detect vehicles. These are wired into the control board to trigger the gate to open automatically when a vehicle is detected.
Ensure that all access control systems are wired to the control board following the manufacturer’s instructions.
What routine maintenance or seasonal care does this commercial swing gate operator require?
▼
Routine maintenance for the CSW24UL requires these inspections at least once a month:
- Inspect the gate for smooth, unrestricted movement. The gate should swing freely without binding, sagging, or excessive resistance.
Check mounting hardware on the operator, gate bracket, and posts. Tighten any loose bolts or fasteners.
- Inspect the operator arm for wear, damage, or loose connections.
- Remove debris such as dirt, leaves, rocks, or vegetation that could interfere with gate travel.
- Test all monitored safety devices, including:
- Photo eyes
- Monitored edge sensors
- Loop detectors (if installed)
- Perform an obstruction test to verify the gate stops or reverses as required when an obstruction or safety device is detected.
Why won’t the gate respond when I use remotes, keypad, or control devices?
▼
1. Activate wireless control and check XMITTER LED is on. Re-learn wireless control/transmitter to control board. Replace wireless control as needed.
2. Check Stop button is not “stuck on”
3. Check Reset button
4. Check if similar wired control operates correctly. Check if wireless controls work properly when within a few feet of the operator. Check the operator's antenna and antenna wire. Check other wireless controls or devices
If further help is needed, refer to the operator manual or call Gate Crafters technical support.
Why does the gate stop, reverse, or hesitate during normal operation?
▼
If the gate isn't operating normally, check:
1. Remove any physical obstructions.
2. Confirm the gate moves smoothly by hand.
3. Inspect rollers, hinges, track, and other mechanical components.
4. Readjust travel limits and force settings if necessary.
5. Perform the required obstruction test to ensure the safety system is functioning correctly.
If further assistance is required, refer to the operator manual or contact Gate Crafters' technical support.
Why does the gate open but then re-open after closing?
▼
A gate that reopens after closing is usually responding to a detected obstruction, excessive closing force, a triggered safety device, an incorrect limit setting, or an unintended open command. Inspect the gate for smooth movement, verify all safety devices and control inputs, confirm the travel limits, and test the entrapment protection system after any adjustments.
If further assistance is needed with the gate, refer to the operator manual, or contact Gate Crafters' technical support.
What routine maintenance or seasonal care does this solar gate opener require for reliable long-term performance?
▼
• Entrapment Protection Devices: Check and test for proper operation once every month
• Warning Signs: Make sure they are present and replace if worn or broken once every month
• Manual Release: Check and test for proper operation once every 6 months
• Gate: Inspect for wear or damage once every month
• Accessories: Check all for proper operation once every 6 months
• Electrical: Inspect all wire connections every 6 months
• Mounting Hardware: Check for tightness every 6 months
• Operator: Inspect for wear or damage every 6 months
• Batteries: Replace once every 3 years
Why does the gate stop, reverse, or hesitate during normal operation?
▼
• Check all Open and Close inputs for an active input.
• Check all vehicle detector inputs for an active detector.
• Battery voltage must be 23.0 Vdc or higher. Charge batteries by AC or solar power or replace batteries.
• Check gate path for obstructions and remove. If there are no obstructions in gate path, manually disconnect the gate, and ensure it moves easily limit to limit. Repair gate as needed.
How do I install and set up the LA5001PKGXLMU (mounting, control box, and power connections)?
▼
1. Position the Brackets
2. Attach the Brackets
3. Install the control box
4. Install proper earth ground rod within 3 feet of the operator
5. Wire the operator arm to the control board
6. Install Entrapment Protection
7. Wire Entrapment Protection Devices
8. Power Wiring
9. Install Warning Signs
For more specific installation instruction, refer to the operator manual.
How do I program the travel limits (open and closed positions)?
▼
1. Set the GATE switch to the 1 position.
2. Press and release the SET OPEN and SET CLOSE buttons simultaneously to enter limit setting mode.
3. Press and hold the MOVE GATE buttons to move the gate to the open or close limit.
4. Press and release the SET CLOSE or SET OPEN button depending on which limit is being set.
5. Press and hold the MOVE GATE button to move the gate to the other limit.
6. Press and release the SET CLOSE or SET OPEN button depending on which limit is being set. The operator will exit limit setting mode.*
7. Cycle the gate open and close using the TEST BUTTONS. This automatically sets the force.
When the limits are set properly, the operator will automatically exit limit setting mode.
Why does the gate stop, reverse, or hesitate during normal operation?
▼
• Check all Open and Close inputs for an active input.
• Check all vehicle detector inputs for an active detector.
• Battery voltage must be 23.0 Vdc or higher. Charge batteries by AC or solar power or replace batteries.
• Check gate path for obstructions and remove. If there are no obstructions in the gate path, manually disconnect the gate, and ensure it moves easily limit to limit. Repair gate as needed.
What routine maintenance or seasonal care does this gate opener require for reliable long-term operation?
▼
- Entrapment Protection Devices: Check and test for proper operation at least once every month
- Warning Signs: Make sure they are present and replace if worn or broken at least once every month
- Manual Disconnect: Check and test for proper operation at least once every 6 months
- Gate: Inspect for wear or damage at least once every month
- Accessories: Check all for proper operation at least once every 6 months
- Electrical: Inspect all wire connections at least once every 6 months
- Mounting Hardware: Check for tightness at least once every 6 months
- Operator: Inspect for wear or damage at least once every 6 months
- Batteries: Replace at least once every 3 years
What do the control board’s LED diagnostic codes mean, and how do I troubleshoot them?
▼
The diagnostic codes have various codes for issues regarding the LiftMaster System, Installed System, Information on the control board, External Entrapment Protection, Inherent Entrapment Protection. For a full list of each diagnostic code and solution, please refer to the operator’s manual.
What gate size and weight is this LiftMaster LA412UL opener designed to handle?
▼
The maximum gate size the LA412UL is designed for is 10 ft and the maximum weight is 850 lbs.
Why does the gate stop, reverse, or hesitate during normal operation?
▼
1. Check all Open and Close inputs for an active input.
2. Check all vehicle detector inputs for an active detector.
3. Battery voltage must be 23.0 Vdc or higher. Charge batteries by AC or solar power or replace batteries.
4. Check gate path for obstructions and remove. If there are no obstructions in gate path, manually disconnect the gate, and ensure it moves easily limit to limit. Repair gate as needed.
How do I program the travel limits (open and closed positions) on this gate opener?
▼
Press and release the SET OPEN and SET CLOSE buttons simultaneously to enter limit setting mode. Once the limit sett
1.Press and hold the OPEN button [CLOSE for close limit] on the remote control until the gate reaches the desired open position. The gate can be jogged back and forth using the OPEN and CLOSE buttons on the remote control.
2.Once the gate is in the desired open position, press and release the STOP button on the remote control.
3.Press and release the OPEN [CLOSE for close limit] button on the remote control again to set the open limit.
When the open or close limit is set properly the operator will automatically exit limit setting mode.
What gate size and weight is this LA412XL solar gate opener designed to handle?
▼
The maximum gate size the LA412UL is designed for is 10 ft and the maximum weight is 850 lbs
How do I add or install additional safety accessories like photo eyes or loop detectors?
▼
- Swing gate operators require the installation of the first external monitored entrapment protection device to function.
- Every installation is unique. It is the responsibility of the installer to ensure that ALL entrapment zones are protected with an external monitored entrapment protection device, protecting both the open and close gate cycles.
- LiftMaster monitored external entrapment protection devices MUST be used with LiftMaster operators to meet UL325 requirements.
- Test ALL entrapment protection devices after completing installation of the operator. For testing instructions, refer to the manual provided with your entrapment protection device.
What routine maintenance or seasonal care does this gate opener require for long-term reliability?
▼
- Entrapment Protection Devices: Check and test for proper operation every month
- Warning Signs: Make sure they are present and replace if worn or broken every month
- Manual Disconnect: Check and test for proper operation every 6 months
- Gate: Inspect for wear or damage every month
- Accessories: Check all for proper operation every 6 months
- Electrical: Inspect all wire connections every 6 months
- Mounting Hardware: Check for tightness every 6 months
- Operator: Inspect for wear or damage every 6 months
- Batteries: Replace every 3 years
How do I install and set up the LA500UL (mounting, control box, power connections)?
▼
1. Position the Brackets
2. Attach the Brackets
3. Install the control box
4. Install proper earth ground rod within 3 feet of the operator
5. Wire the operator arm to the control board
6. Install Entrapment Protection
7. Wire Entrapment Protection Devices
8. Power Wiring
9. Install Warning Signs
How do I program the travel limits (open and closed positions)?
▼
1. Set the GATE switch to the 1 position.
2. Press and release the SET OPEN and SET CLOSE buttons simultaneously to enter limit setting mode.
3. Press and hold the MOVE GATE buttons to move the gate to the open or close limit.
4. Press and release the SET CLOSE or SET OPEN button depending on which limit is being set.
5. Press and hold the MOVE GATE button to move the gate to the other limit.
6. Press and release the SET CLOSE or SET OPEN button depending on which limit is being set. The operator will exit limit setting mode.
7. Cycle the gate open and close using the TEST BUTTONS. This automatically sets the force.
How do I program or re-program remotes, keypad, or MyQ devices with the LA400UL?
▼
Program Remote or Keypad:
1. Press and release the Learn button on the opener's control board. The Learn LED will illuminate.
2. Within 30 seconds, press and hold the button on your remote or keypad until the opener lights flash or you hear two clicks.
Program MyQ Device:
1. For MyQ programming, follow the instructions provided by the MyQ device or app.
2. If your opener supports MyQ (Wi-Fi), press and release the Learn button on the opener's control board, and follow the app instructions to connect to Wi-Fi.
3. The Learn LED will blink, indicating the opener is in pairing mode.
How do I connect and set up the MyQ technology on my gate opener (app/Wi-Fi)?
▼
To program the operator to the LiftMaster Internet Gateway:
1. Connect the ethernet cable to the LiftMaster Internet Gateway and the router.
2. Connect power to the LiftMaster Internet Gateway.
3. Download the myQ® App.
4. Set up an account and follow the app instructions to add your gate operator.
5. The LiftMaster Internet Gateway will pair to the operator if it is within range and the operator will beep if programming is successful. The gate operator can then be controlled through the myQ® App.
Why does the gate open but not close (or vice-versa)?
▼
1. Check all Open inputs for an active input
2. Check all vehicle detector inputs for an active detector
3. Check AC power and AC Fail option setting
4. Check if AC power is available. If no AC power, then running on batteries and battery voltage must be 23.0 Vdc or higher. Charge batteries by AC or solar power or replace batteries.
5. Check Fire Dept input
6. Check Timer-to-Close (TTC) setting
7. Check all Entrapment Protection Device inputs for an active sensor
I have an LA 400 gate opener. It will open and close fine for a few times, and then it will open only about 1/6 of the total
▼
These symptoms are generally an indication of batteries going bad. there are 2, 12 volt batteries wired in series behind the control board. These batteries should independently read about 13.5 volts when fully charged (27 volts together) and should not drop more than 2/10th of a volt when the gate is in motion. Generally they need to be replaced every 3 to 5 years.
How do I connect and configure MyQ technology for remote monitoring and control?
▼
To program the operator to the LiftMaster Internet Gateway:
1.Connect the ethernet cable to the LiftMaster Internet Gateway and the router.
2.Connect power to the LiftMaster Internet Gateway.
3. Download the myQ® App.
4.Set up an account and follow the app instructions to add your gate operator.
5.The LiftMaster Internet Gateway will pair to the operator if it is within range and the operator will beep if programming is successful. The gate operator can then be controlled through the myQ® App.
What do the control board’s LED diagnostic codes mean, and how do I troubleshoot them?
▼
The diagnostic codes have various codes for issues regarding the LiftMaster System, Installed System, Information on the control board, External Entrapment Protection, Inherent Entrapment Protection. For a full list of each diagnostic code and solution, please refer to the operator’s manual.
How do I manually open the gate during a power outage or when the battery is dead?
▼
In case of a power failure, the operator can be disengaged from the gate. With an operator, the release action may sometimes feel stiff/jerky, which is normal and has no effect on function.
NOTE: It is normal for the operator to run slow right after a disconnect or complete loss of AC/battery power (the operator will need to run a complete open and close cycle).
Release
1.Insert the key into the lock.
2.Turn the key counter-clockwise 180°.
3.Turn the release lever counter-clockwise 180°. The operator is in manual mode and the gate can be opened and closed manually. The lock relay will activate then turn off after 2 minutes to conserve power.
Engage
1.Turn the release lever clockwise 180°. This engages the motor.
2.Turn the key clockwise 180°. This locks the release lever.
Remove the key and store in a safe place. The operator is now engaged.
How do I connect and configure MyQ technology for remote monitoring and control?
▼
To program the operator to the LiftMaster Internet Gateway:
1.Connect the ethernet cable to the LiftMaster Internet Gateway and the router.
2.Connect power to the LiftMaster Internet Gateway.
3. Download the myQ® App.
4.Set up an account and follow the app instructions to add your gate operator.
The LiftMaster Internet Gateway will pair to the operator if it is within range and the operator will beep if programming is successful. The gate operator can then be controlled through the myQ® App.
How do I manually open the gate during a power outage or when the battery is dead?
▼
In case of a power failure, the operator can be disengaged from the gate. With an operator, the release action may sometimes feel stiff/jerky, which is normal and has no effect on function.
NOTE: It is normal for the operator to run slow right after a disconnect or complete loss of AC/battery power (the operator will need to run a complete open and close cycle).
Release
1.Insert the key into the lock.
2.Turn the key counter-clockwise 180°.
3.Turn the release lever counter-clockwise 180°. The operator is in manual mode and the gate can be opened and closed manually. The lock relay will activate then turn off after 2 minutes to conserve power.
Engage
1.Turn the release lever clockwise 180°. This engages the motor.
2.Turn the key clockwise 180°. This locks the release lever.
3.Remove the key and store in a safe place. The operator is now engaged.
What gate size and weight is this CSW200UL operator designed to handle?
▼
For Model CSW200501UL 1/2 HP the max weight the CSW200UL is 600 lbs and the max size it can handle is 20 feet. Model CSW200101UL 1 HP can handle a max gate weight of 1000 lbs and max size of 22 feet.
What safety devices (photo eyes, loop detectors, etc.) are compatible and how do I install them?
▼
The EYES/EDGE terminals are used for connecting entrapment protection devices.
At least one external monitored entrapment protection device is required prior to gate movement. Monitored entrapment protection devices should have been installed with the operator at the time of installation. Only ONE monitored device may be connected to each input. A monitored device sends a pulsed signal to the operator so the operator is aware of the device. If the operator does not receive the signal from the device indicating it is working properly, it will not run in that direction.
Can this gate opener run on solar power, and how do the solar panels and battery backup work?
▼
The LA 500XL can run on solar power with a minimum of two 10W solar panels. Local geography and weather conditions may require additional solar panels. Solar powered gate operator installations are not supported in northern climates due to cold weather and a reduced number of hours of sunlight during the winter months. Solar panels cannot be installed in areas that experience long periods of heavy fog, lake effect snow, or rain.
Is the HDSW24UL compatible with myQ® smart control and how do I set it up?
▼
To program the operator to the LiftMaster Internet Gateway:
1.Connect the ethernet cable to the LiftMaster Internet Gateway and the router.
2.Connect power to the LiftMaster Internet Gateway.
3.Download the myQ® App.
4.Set up an account and follow the app instructions to add your gate operator.
5.The LiftMaster Internet Gateway will pair to the operator if it is within range and the operator will beep if programming is successful.
The gate operator can then be controlled through the myQ®App.
What is the difference between the INSL24UL and other LiftMaster industrial slide gate operators?
▼
The INSL24UL has various usage classes, whereas other Liftmaster gate openers are only for a specific class. This operator can be used for use in a commercial location or building such a hotel or garage, a factory or other locations not intended to service the general public, and guarded industrial locations such as an airport security area or other restricted access locations.
Can the RSL12UL be powered by solar, battery backup, or does it require AC power?
▼
The operator can be wired for either 120 Vac or a solar panel (not provided). Follow the directions according to your application. The battery is charged in the circuit by the integrated transformer. The operator requires one 7AH battery (provided) or one 33AH battery. A minimum of one 10W solar panel and maximum of three 10W solar panels in parallel is required for solar power.
What maximum gate weight and length can the HDSW24UL support?
▼
The maximum gate weight the HDSW24UL can support is 2800 lbs and the max size it can support is 22 ft.
What accessories are compatible with the SL3000UL?
▼
Compatible accessories include:
-Universal single and 3-button remote controls
-Security+ 2.0 learning remote controls
-Liftmaster internet gateway
-Post-mounting plate
-Plug-in loop detector
-Wireless keypads
-Photo eyes
-Loop detectors
How do I manually release and then reset the gate after using the manual disconnect?
▼
To manually operate the gate, use the emergency release handle or key to disengage the motor drive. After power is restored, re-engage the operator by returning the release mechanism to its locked position. A reset may be required depending on system state.
How do I configure the timer-to-close and auto close features on the SL3000UL?
▼
The TTC is factory set to OFF (0). Rotate the TIMER-TO-CLOSE dial to the desired setting (0 to 180 seconds). Any radio command, single button control, or CLOSE command on the control board prior to the TTC expiring will close the gate. The TTC is reset by any signals from the open controls, loops, close edges, and close photoelectric sensors.
-0 seconds (OFF): The gate will remain open until the operator receives another command from a control.
-1-180 seconds (ON): The gate will automatically close after the specified time period.
How do I program and sync multiple remotes with the SL3000UL?
▼
To program remotes, press the “LEARN” button on the control board until the LED lights up. Then press the button on the remote transmitter. For multiple remotes, repeat the same process for each device. The SL3000UL can store multiple transmitters, and programming is stored in memory even after power loss.
What do the control board LEDs and diagnostic codes mean and how can they help with troubleshooting?
▼
The operator will show the code sequence number followed by the code number. The first number shown is the most recent code (example: “01”). The display will show the sequences of codes that occurred starting with “01” and going up to code “20”. The second number shown after the code sequence number is the code itself. Refer to the chart in the manual for an explanation of each code.
Can this operator be integrated with additional access systems?
▼
Yes. There are external control devices such as exit probes, telephone entry, external exit loop detectors, or any device that would command the gate to open. These devices can be connected using the control board.
Which LiftMaster gate opener is right for my gate?
▼
Start with how your gate moves. We carry LiftMaster openers for single and dual swing gates, as well as single and dual slide gates. Then compare your gate’s length, weight, and expected daily use with the limits in our LiftMaster feature chart. Our team can help you narrow down the right operator for your entrance.
Do you sell solar LiftMaster gate openers?
▼
Yes. We offer LA412UL and LA412XL solar swing gate opener kits in single and dual configurations. Our feature chart also lists solar compatibility for several other LiftMaster operators. Review the specific kit and your installation’s power needs before choosing a solar setup.
Can I control a LiftMaster gate opener with my phone?
▼
Compatible LiftMaster openers with myQ technology can support remote gate control and monitoring. We carry myQ swing gate kits such as the LA400UL, LA412UL, and LA500UL, along with related accessories. Phone connectivity may require additional components, so check the requirements for your selected operator.
Which LiftMaster opener works for a sliding driveway gate?
▼
For residential or light commercial slide gates, we offer the LiftMaster RSL12UL in single and dual slide kits. We also carry commercial and industrial slide operators, including the CSL24UL, HDSL24UL, INSL24UL, and IHSL24UL. Compare your gate’s length, weight, and traffic level in our feature chart.
Do you carry LiftMaster openers for high traffic commercial gates?
▼
Yes. Our swing gate selection includes the CSW24UL, HDSW24UL, and CSW200UL; our slide gate selection includes the CSL24UL, HDSL24UL, and SL3000UL. The feature chart identifies their gate size limits and operating duty. For a business or shared entrance, select by the actual gate and expected use, rather than the “commercial” label alone.
What accessories do I need with a LiftMaster gate opener?
▼
That depends on how you want people to enter and how your gate will detect vehicles and obstacles. We carry LiftMaster remotes, keypads, receivers, photo eyes, sensing edges, loop detectors, locks, solar panels, and video intercoms. Check what your kit includes first, then choose compatible access and safety accessories.
Can I buy LiftMaster replacement parts from GateCrafters?
▼
Yes. We organize replacement parts by operator model, including the LA400, LA412, LA500, RSW12UL, RSL12UL, HDSW24UL, and HDSL24UL. Match the full model number on your operator before ordering. If you are unsure which part fits, contact our technical support team.
Can I install a LiftMaster gate opener myself, and do you offer support?
▼
We sell LiftMaster opener kits for DIY installation and offer bolt on brackets for the LA400, LA412, and LA500 that require no welding. Your installation requirements will depend on the gate, power source, mounting layout, and safety devices. Our technical and installation support team is available at (347) 817-4656, seven days a week from 9 a.m. to 9 p.m. ET.
Will my LiftMaster gate opener work during a power outage?
▼
Some models we carry include battery backup. Our feature chart lists backup operation for the LA400, LA500, RSW12UL, RSL12UL, and several commercial operators, with different estimated cycle counts. Check your model and battery configuration before relying on backup power.
What is the difference between a single and dual LiftMaster gate opener kit?
▼
Choose a single kit for one moving swing gate leaf or one sliding gate. Choose a dual kit for two moving swing leaves or two sliding gates. We offer both configurations for models including the LA400UL, LA500UL, RSW12UL, and RSL12UL.
Do you sell safety sensors for LiftMaster automatic gates?
▼
Yes. We carry monitored photo eyes such as the LMRRUL and LMTBUL, a wireless sensing edge kit, and a vehicle safety loop detector. The devices your installation needs depend on the operator and gate layout. Review your operator’s manual and safety requirements when planning the system.
How fast do LiftMaster gate openers operate?
▼
Speed varies by model and gate setup. Our feature chart lists the LA400 and LA500 at approximately 15–18 seconds for a swing cycle, while several slide operators are listed at 12 inches per second. Actual operation can vary with the installation.
Can visitors use a video intercom with my LiftMaster gate?
▼
We carry LiftMaster smart video intercom products, including the CAPXS, CAPXM, and CAPXLV2. Compare their product details with your gate operator and the way you want visitors to request entry. Your setup may need additional equipment.
Do you sell safety sensors for LiftMaster automatic gates?
▼
Yes. We carry monitored photo eyes such as the
LMRRUL and
LMTBUL, a wireless sensing edge kit, and a vehicle safety loop detector. The devices your installation needs depend on the operator and gate layout. Review your operator’s manual and safety requirements when planning the system.
What warranty comes with a LiftMaster gate opener?
▼
Warranty terms vary by model. Our chart lists a two year limited warranty for the LA400, LA412, and LA500; a three year limited warranty for the RSW12UL and RSL12UL; and different residential and commercial terms for other operators. Check the current warranty on the product you select.
Which LiftMaster gate opener is right for my gate?
▼
Start with how your gate moves. We carry LiftMaster openers for single and dual swing gates, as well as single and dual slide gates. Then compare your gate’s length, weight, and expected daily use with the limits in our
LiftMaster feature chart. Our team can help you narrow down the right operator for your entrance.
Do you sell solar LiftMaster gate openers?
▼
Yes. We offer
LA412UL and
LA412XL solar swing gate opener kits in single and dual configurations. Review the specific kit and your installation’s power needs before choosing a solar setup.
Can I control a LiftMaster gate opener with my phone?
▼
Compatible LiftMaster openers with
myQ technology can support remote gate control and monitoring. We carry myQ swing gate kits such as the
LA400UL,
LA412UL, and
LA500UL, along with related accessories. Phone connectivity may require additional components, so check the requirements for your selected operator.
Which LiftMaster opener works for a sliding driveway gate?
▼
For residential or light commercial slide gates, we offer the
LiftMaster RSL12UL in single and dual slide kits. We also carry commercial and industrial slide operators, including the
CSL24UL,
HDSL24UL,
INSL24UL, and
IHSL24UL. Compare your gate’s length, weight, and traffic level in our feature chart.
What accessories do I need with a LiftMaster gate opener?
▼
That depends on how you want people to enter and how your gate will detect vehicles and obstacles. We carry LiftMaster remotes, keypads, receivers, photo eyes, sensing edges, loop detectors, locks, solar panels, and video intercoms. Check what your kit includes first, then choose compatible access and safety accessories.
Can I buy LiftMaster replacement parts from GateCrafters?
▼
Yes. We organize replacement parts by operator model, including the
LA400,
LA412,
LA500,
RSW12UL,
RSL12UL,
HDSW24UL, and
HDSL24UL. Match the full model number on your operator before ordering. If you are unsure which part fits, contact our technical support team.
Can I install a LiftMaster gate opener myself, and do you offer support?
▼
We sell LiftMaster opener kits for DIY installation and offer bolt on brackets for the LA400, LA412, and LA500 that require no welding. Your installation requirements will depend on the gate, power source, mounting layout, and safety devices. Our technical and installation support team is available at (347) 817-4656, seven days a week from 9 a.m. to 9 p.m. ET.
Will my LiftMaster gate opener work during a power outage?
▼
Some models we carry include battery backup. Our feature chart lists backup operation for the LA400, LA500, RSW12UL, RSL12UL, and several commercial operators, with different estimated cycle counts. Check your model and battery configuration before relying on backup power.
Do you sell safety sensors for LiftMaster automatic gates?
▼
Yes. We carry monitored photo eyes such as the
LMRRUL and
LMTBUL, a wireless sensing edge kit, and a vehicle safety loop detector. The devices your installation needs depend on the operator and gate layout. Review your operator’s manual and safety requirements when planning the system.
Where can I find the manual, installation instructions, or technical support documentation for the RSL12UL?
▼
All documentation can be found on the Gate Crafters website as all information is available there. The manual can be found on the product page for the respective gate opener. Technical support is available on the Gate Crafters website from 9AM - 9PM ET 7 days a week by calling 813-792-9726.
What is included in the CSW200UL commercial swing gate operator kit?
▼
The CSW200UL Commercial Swing Gate Operator Kit typically includes:
-½ HP Operator and Cover
-1 HP Operator and Cover
-Arm Assembly
-2 Warning Signs
-2 Keys
-Liftmaster Monitored Retro-Reflective Photoelectric Sensor Model LMRRUL
What gate size and weight can the CSW200UL support?
▼
The CSW200UL is designed to support:
-Gate size: Up to 20 feet in length per leaf.
-Gate weight: Up to 1,000 lbs per leaf.
This is suitable for commercial and heavy-duty residential applications. For gates exceeding these specifications, consider using a larger operator.
What do the control board LED diagnostic codes or error indicators mean, and how do I troubleshoot them?
▼
The diagnostic codes have various codes for issues regarding the LiftMaster System, Installed System, Information on the control board, External Entrapment Protection, Inherent Entrapment Protection. For a full list of each diagnostic code and solution, please refer to the operator’s manual.
What gate size and weight can the RSL12UL support?
▼
The max gate size the RSL12UL can support is 50 feet and the max gate weight the gate opener can handle is 800 lbs.
How do I size the correct INSL24UL model based on gate weight, length, and traffic frequency?
▼
The max gate weight the INSL24UL can handle is 2200 lbs and the max size it can handle is 7 feet.
What remote transmitter options are compatible with this operator and how many can be programmed?
▼
The operator can program many remote transmitters and receivers. There are many remote options that are compatible with the INSL24UL: 3-button remote control, Security+ 2.0 remote controls, and programmable dip remote controls.
Does LiftMaster offer technical support or on-site service options for industrial installations?
▼
Yes. Technical support is available on the Gate Crafters website from 9AM - 9PM ET 7 days a week by calling 813-792-9726 for all questions and concerns concerning your operator.
What environmental conditions (temperature, rain, snow, salt air) can the IHSL24UL withstand?
▼
The IHSL24UL is designed for industrial outdoor environments and typically operates within a temperature range of approximately -4°F to 140°F (-20°C to 60°C). It features a weather-resistant enclosure suitable for rain and snow exposure. In coastal or corrosive environments (salt air), additional protective measures such as corrosion-resistant hardware and regular maintenance are recommended.
What is the expected lifespan of the motor and drive components under heavy use?
▼
Under proper installation and maintenance, the IHSL24UL is built for continuous-duty industrial use and can operate reliably for many years. Lifespan depends on cycle frequency, load conditions, environmental exposure, and maintenance practices, with industrial-grade components designed for long-term durability.
How many remote transmitters can be programmed to the operator?
▼
A total of 50 Security+ 2.0 remote controls or KPW250 keypads and 2 keyless entries (1 PIN for each keyless entry) can be programmed to the operator. When programming a third keyless entry to the operator, the first keyless entry will be erased to allow the third keyless entry to be programmed. When the operator’s memory is full it will exit the programming mode and the remote control will not be programmed. The memory will need to be erased before programming any additional remote controls.
Does the IHSL24UL support multiple access control formats (RFID, keypad, intercom interfaces)?
▼
Yes. There is an expansion board that allows for more accessories to be wired through it. Up to 3 entrapment protection devices, including RFID readers, keypads, intercom systems, card access devices, and network-based control systems are configurable through the board’s input/output terminals and up to 8 edge sensors can be wired to the board.
What electrical protection (surge suppressors, breakers) is recommended for this industrial system?
▼
Recommended protection includes surge suppressors on power lines, proper grounding, dedicated circuit breakers, and lightning protection devices where applicable. These measures protect the control board and electronics from voltage spikes.
Is routine lubrication required for the drive gear or rack, and what type is recommended?
▼
Yes. Regular lubrication of the drive gear and gate rack is recommended to reduce wear and noise. Use a high-quality lithium-based or manufacturer-approved grease suitable for outdoor and industrial conditions.
How do I set up auto-close and how do I adjust the auto-close timer?
▼
The TIMER-TO-CLOSE (TTC) dial can be set to automatically close the gate after a specified time period. The TTC is factory set to OFF. If the TTC is set to the OFF position, then the gate will remain open until the operator receives another command from a control. Rotate the TIMER-TO-CLOSE dial to the desired setting. The range is 0 to 180 seconds, 0 seconds is OFF
What training or certification is recommended for installers working with this model?
▼
Although Liftmaster operators are DIY-Friendly, installers may miss a few steps leading to improper installation. If installers don’t feel comfortable installing the operator themselves, technical support is available through Gate Crafters by calling (347)817-4656. Our technicians are available 7 days a week from 9AM-9PM ET.
Can the operator be integrated with building management systems or remote monitoring?
▼
Yes. The IHSL24UL can integrate with building management systems and remote monitoring platforms through relay outputs, network modules, or compatible smart control systems such as myQ® and third-party automation interfaces. Be sure to check the national and local building codes before installation.
Are there firmware or control board updates, and how are they applied?
▼
The control board displays the firmware version, however, there are no updates that are required for the control board. The firmware of the control board is dependent on which operator you own.
What accessories are available specifically to enhance safety for industrial applications?
▼
Safety accessories include monitored photo eyes, safety edge sensors, loop detectors, emergency stop buttons, screen mesh, photoelectric sensors, edge sensors, warning lights, and audible alarms. These devices are essential for UL325 compliance and safe operation in high-traffic environments.
How do I track and log maintenance history or fault events?
▼
The Liftmaster MyQ technology allows owners to track and log maintenance history or fault events. However, the MyQ is not included with the operator, so a separate purchase would be necessary in order to be up to date with your operator’s status.
What warranty coverage does the IHSL24UL come with and how do I file a claim?
▼
A 5 Year Warranty coverage comes with the IHSL24UL from the date of purchasing the operator. To file a claim call 1-800-528-2806 and include a brief description of the problem and a dated proof-of-purchase receipt with any product returned for warranty repair.
How do I install and set up the LA500XL (mounting, solar panel installation, and wiring)?
▼
1.Position the Brackets
2.Attach the Brackets
3.Install the control box
4.Install proper earth ground rod within 3 feet of the operator
5.Wire the operator arm to the control board
6.Install Entrapment Protection
7.Wire Entrapment Protection Devices
8.Power Wiring
9.Install Warning Signs
For specific installation instructions please refer to the manual.
How do I program the travel limits (open and closed positions)?
▼
Press and release the SET OPEN and SET CLOSE buttons simultaneously to enter limit setting mode. Once in limit setting mode:
1.Press and hold the OPEN button [CLOSE for close limit] on the remote control until the gate reaches the desired open position. The gate can be jogged back and forth using the OPEN and CLOSE buttons on the remote control.
2.Once the gate is in the desired open position, press and release the STOP button on the remote control.
3.Press and release the OPEN [CLOSE for close limit] button on the remote control again to set the open limit.
When the open or close limit is set properly the operator will automatically exit limit setting mode.
How do I connect and configure MyQ technology for smartphone control and remote access?
▼
To program the operator to the LiftMaster Internet Gateway:
1.Connect the ethernet cable to the LiftMaster Internet Gateway and the router.
2.Connect power to the LiftMaster Internet Gateway.
3.Download the myQ® App.
4.Set up an account and follow the app instructions to add your gate operator.
5.The LiftMaster Internet Gateway will pair to the operator if it is within range and the operator will beep if programming is successful.
The gate operator can then be controlled through the myQ® App.
Why won’t the gate respond to remotes, keypads, or MyQ app commands?
▼
Disconnect all accessory powered devices and measure accessory power voltage (should be 23 – 30 Vdc). If voltage is correct, connect accessories one at a time, measuring accessory voltage after every new connection. If the problem still persists, replace the inoperable control board.
What do the LED diagnostic codes or error indicators mean, and how do I troubleshoot them?
▼
The diagnostic codes have various codes for issues regarding the LiftMaster System, Installed System, Information on the control board, External Entrapment Protection, Inherent Entrapment Protection. For a full list of each diagnostic code and solution, please refer to the operator’s manual.
How do I manually open the gate during a power outage or when the battery is dead?
▼
In case of a power failure, the operator can be disengaged from the gate. With an operator, the release action may sometimes feel stiff/jerky, which is normal and has no effect on function. It is normal for the operator to run slow right after a disconnect or complete loss of AC/ battery power (the operator will need to run a complete open and close cycle).
RELEASE
1.Insert the key into the lock.
2.Turn the key counter-clockwise 180°.
3.Turn the release lever counter-clockwise 180°.
The operator is in manual mode and the gate can be opened and closed manually. The lock relay will activate then turn off after 2 minutes to conserve power.
ENGAGE
1.Turn the release lever clockwise 180°. This engages the motor.
2.Turn the key clockwise 180°. This locks the release lever.
3.Remove the key and store in a safe place. The operator is now engaged.
What gate size and weight is this gate opener designed to handle?
▼
The max gate weight this gate opener can handle is 1600 lbs and the max size this gate opener can handle is 8 feet.
What gate size and weight is the LA500UL designed to handle?
▼
The max gate weight the LA 500UL is designed to handle is 1600 lbs and the max size it can handle is 8 ft.
How do I connect and configure MyQ technology for smartphone control and remote access?
▼
To program the operator to the LiftMaster Internet Gateway:
1.Connect the ethernet cable to the LiftMaster Internet Gateway and the router.
2.Connect power to the LiftMaster Internet Gateway.
3.Download the myQ® App.
4.Set up an account and follow the app instructions to add your gate operator.
5.The LiftMaster Internet Gateway will pair to the operator if it is within range and the operator will beep if programming is successful.
The gate operator can then be controlled through the myQ® App.
What do the LED diagnostic codes on the control board mean, and how do I troubleshoot them?
▼
The diagnostic codes are codes for issues regarding the LiftMaster System, Installed System, Information on the control board, External Entrapment Protection, Inherent Entrapment Protection. For a full list of each diagnostic code and solution, please refer to the operator’s manual.
How do I manually open the gate during a power outage or when the battery is dead?
▼
In case of a power failure, the operator can be disengaged from the gate. With an operator, the release action may sometimes feel stiff/jerky, which is normal and has no effect on function.
It is normal for the operator to run slow right after a disconnect or complete loss of AC/ battery power (the operator will need to run a complete open and close cycle).
RELEASE
1.Insert the key into the lock.
2.Turn the key counter-clockwise 180°.
3.Turn the release lever counter-clockwise 180°.
The operator is in manual mode and the gate can be opened and closed manually. The lock relay will activate then turn off after 2 minutes to conserve power.
ENGAGE
1. Turn the release lever clockwise 180°. This engages the motor.
2.Turn the key clockwise 180°. This locks the release lever.
3. Remove the key and store in a safe place. The operator is now engaged.
How do I manually release and open the gate during a power outage or emergency?
▼
In case of a power failure, the operator can be disengaged from the gate. With an operator, the release action may sometimes feel stiff/jerky, which is normal and has no effect on function. It is normal for the operator to run slow right after a disconnect or complete loss of AC/ battery power (the operator will need to run a complete open and close cycle).
RELEASE
1.Insert the key into the lock.
2.Turn the key counter-clockwise 180°.
3.Turn the release lever counter-clockwise 180°.
The operator is in manual mode and the gate can be opened and closed manually. The lock relay will activate then turn off after 2 minutes to conserve power.
ENGAGE
1. Turn the release lever clockwise 180°. This engages the motor.
2.Turn the key clockwise 180°. This locks the release lever.
3. Remove the key and store in a safe place. The operator is now engaged.
What safety devices (photo eyes, monitored sensors, edge devices) are required and how are they wired?
▼
The EYES/EDGE terminals are used for connecting entrapment protection devices.
At least one external monitored entrapment protection device is required prior to gate movement. Monitored entrapment protection devices should have been installed with the operator at the time of installation. Only ONE monitored device may be connected to each input. A monitored device sends a pulsed signal to the operator so the operator is aware of the device. If the operator does not receive the signal from the device indicating it is working properly, it will not run in that direction.
What do the LED diagnostic codes on the control board mean, and how do I troubleshoot them?
▼
The diagnostic codes have various codes for issues regarding the LiftMaster System, Installed System, Information on the control board, External Entrapment Protection, Inherent Entrapment Protection. For a full list of each diagnostic code and solution, please refer to the operator’s manual.
How do I configure and use the myQ® technology to monitor and control the gate?
▼
To program the operator to the LiftMaster Internet Gateway:
1.Connect the ethernet cable to the LiftMaster Internet Gateway and the router.
2.Connect power to the LiftMaster Internet Gateway.
3.Download the myQ® App.
4.Set up an account and follow the app instructions to add your gate operator.
5.The LiftMaster Internet Gateway will pair to the operator if it is within range and the operator will beep if programming is successful.
The gate operator can then be controlled through the myQ® App.
What is included in the RSW12UL single swing gate operator kit?
▼
The RSW12UL Single Swing Gate Operator Kit typically includes:
-Operator motor unit (includes actuator arm)
-Control board with integrated wiring
-Mounting brackets for installation
-Remote transmitters (usually 2)
-Receiver unit for remote control
-Safety photo eyes (infrared sensors)
-Battery (in some models) or power connections for AC
-Instruction manual for installation and setup
-Manual release key for emergency manual operation
What gate size and weight can this gate operator support?
▼
The maximum weight that this gate opener can support is 1000 lbs and the max size it can handle is 16 feet.
Can the RSW12UL be powered with solar panels or does it require AC power?
▼
The RSW12UL can be powered by solar panels with a max of 12 Vdc at 30 watts or 12, and the main AC Supply has power of 120 Vac, .5 Amps. AC power is recommended as it is more consistent and reliable, however, solar power is an available option if supported.
How do I connect and configure the MyQ technology for smartphone control?
▼
To program the operator to the LiftMaster Internet Gateway:
1.Connect the ethernet cable to the LiftMaster Internet Gateway and the router.
2.Connect power to the LiftMaster Internet Gateway.
3. Download the myQ® App.
4.Set up an account and follow the app instructions to add your gate operator.
5.The LiftMaster Internet Gateway will pair to the operator if it is within range and the operator will beep if programming is successful. The gate operator can then be controlled through the myQ® App.
Why won’t the gate opener respond to remotes, keypad, or MyQ app commands?
▼
-Disconnect all accessory powered devices and measure accessory power voltage (should be 23 – 30 Vdc). If voltage is correct, connect accessories one at a time, measuring accessory voltage after every new connection.
-Replace inoperable control board
What do the control board’s LED diagnostic codes mean, and how do I troubleshoot them?
▼
The diagnostic codes have various codes for issues regarding the LiftMaster System, Installed System, Information on the control board, External Entrapment Protection, Inherent Entrapment Protection. For a full list of each diagnostic code and solutions, please refer to the operator’s manual.
What gate size and weight is this LA500XL solar gate opener designed to handle?
▼
The max gate size the LA500XL gate opener is designed to handle is 8 feet and the max weight the gate opener can handle is 1600 lbs.
What do the LED diagnostic lights or error codes on the control board mean?
▼
The diagnostic codes have various codes for issues regarding the LiftMaster System, Installed System, Information on the control board, External Entrapment Protection, Inherent Entrapment Protection. For a full list of each diagnostic code and solution, please refer to the operator’s manual.
How do I manually open the gate if there’s a power outage or battery failure?
▼
In case of a power failure, the operator can be disengaged from the gate. With an operator, the release action may sometimes feel stiff/jerky, which is normal and has no effect on function:
1.Insert the key into the lock.
2.Turn the key counter-clockwise 180°.
3.Turn the release lever counter-clockwise 180°.
The operator is in manual mode and the gate can be opened and closed manually. The lock relay will activate then turn off after 2 minutes to conserve power.
Why won’t the MyQ app find or connect to my gate operator?
▼
Wi-Fi Issues: Ensure the opener is within range of your Wi-Fi router. If the signal is weak, move the router closer to the opener or use a Wi-Fi extender.
App Update: Make sure the MyQ app is updated to the latest version.
Reset the Opener: If the app fails to detect the opener, press and release the Learn button on the control board to reset the Wi-Fi setup process.
Wi-Fi Network Compatibility: Ensure your Wi-Fi network is 2.4 GHz (5 GHz networks are not compatible with MyQ).
Router Settings: Check that your router’s firewall or security settings are not blocking communication with MyQ.
What safety devices (photo eyes, loops) should be installed and how do they work with this opener?
▼
Swing gate operators require the installation of the first external monitored entrapment protection device to function.
Every installation is unique. It is the responsibility of the installer to ensure that ALL entrapment zones are protected with an external monitored entrapment protection device, protecting both the open and close gate cycles.
LiftMaster monitored external entrapment protection devices MUST be used with LiftMaster operators to meet UL325 requirements.
Test ALL entrapment protection devices after completing installation of the operator. For testing instructions, refer to the manual provided with your entrapment protection device.
How do I troubleshoot connectivity or programming issues with the Learn/remote buttons?
▼
Disconnect all accessory powered devices and measure accessory power voltage (should be 23 – 30 Vdc). If voltage is correct, connect accessories one at a time, measuring accessory voltage after every new connection. If problem persists, replace defective control board.
