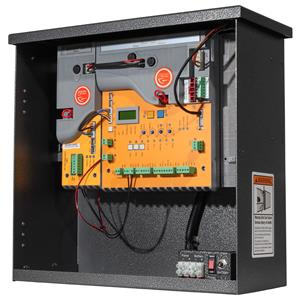

The Viking G5 Solar ECU Big Dual Leaf (VIK-VA-ECUBMSNXSLR) is a large-capacity solar control box with integrated control board designed for dual-leaf Viking G5 solar gate operators. Engineered for reliable solar-powered performance, this big box enclosure includes adaptive motor control, built-in solar charging regulation, and advanced monitoring capabilities.

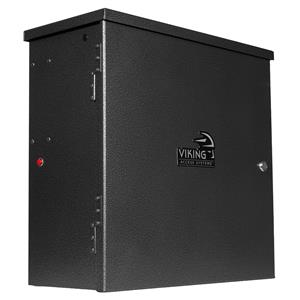

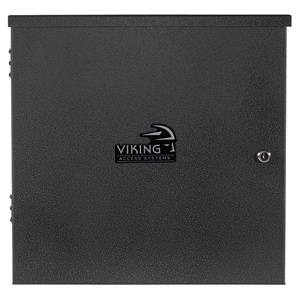

The aluminum, powder-coated enclosure provides durable protection with IP54-rated ingress resistance, built-in post-mount options, and pre-punched conduit holes for easy installation. With the ability to house up to a 35Ah battery, integrated lightning protection, and adjustable speed and safety features, this solar ECU delivers dependable, efficient gate automation in solar applications.
Gate Crafters offers more expert assistance than anyone.
If you need help deciding if this gate opener has the abilities that are right for your gate we have live application specialists available 9am - 9 pm EST 7 days a week or try our exclusive gate opener recommendation tool 24 hours/day.
Compatible with the G5 Gate Opener Arm
|
Control & Power Features
- UL 325 compliant
- Dual monitored safety inputs (up to 4 devices per input)
- On-board display for diagnostics and programming
- Built-in voltmeter
- Lightning strike protection
- Adaptive motor control
- Adjustable speed control
- Anti-tailgating feature
- Sleep mode for power conservation

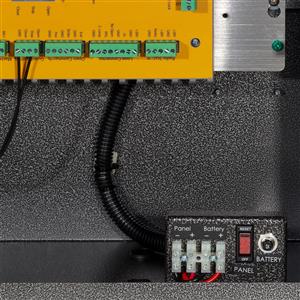

- 12V solar panel input
- Built-in 3A solar charge regulator
- Integrated 12V battery charger
- Solar panel switch
- Battery switch
- Supports up to 35Ah battery
|
Enclosure Features
- Heavy-duty aluminum construction
- Durable powder-coated finish
- Built-in post-mount options
- Pre-punched conduit access holes
- Padlock-ready latch
- IP54-certified ingress protection
|
Gate Crafters has the resources you need.
How do you use your gate opener system once you get it? Gate Crafters is the only retailer to give a real answer to this question. We have develop videos for installing many of our gate openers and products and write DIY focused manuals for most gate openers and have individual instructions for each accessory to be installed with each gate opener.
|
General
- Manufacturer: Viking Access Systems
- Model: VIK-VA-ECUBMSNXSLR
- Application: Dual Leaf Solar Gate Operator Control Box
Electrical
- Operating Voltage: 24VDC
- Power Source Input: 12VDC Solar
- Main Power Fuse: 4A Timed
- Accessory Output Power: 24VDC - 750mA
- Built-in Solar Charge Regulator: 3A
Power Consumption
- Sleep Mode Consumption: 19mA
- Typical Motor Current: 2.0A
|
Environmental
- Operating Temperature: -4°F to 160°F (-20°C to 71°C)
- Ingress Protection: IP54
Dimensions
- Big Box Dimensions: 18.75" L × 8.125" H × 18.2" D
Enclosure
- Material: Aluminum
- Finish: Powder coated
- Battery Capacity: Up to 35Ah battery
Warranty
- Manufacturer Warranty: 2 Years
|

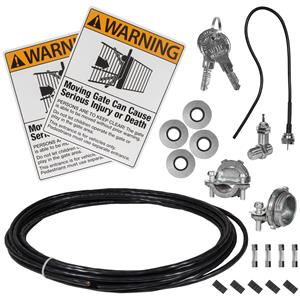

- Viking G5 Solar Big ECU Control Box
- Integrated Dual Controller Control Board
