DESCRIPTION
DESCRIPTION:

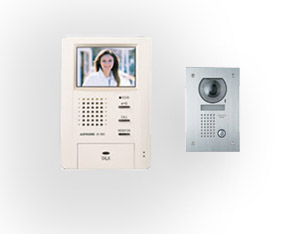

The JBS-2AD, 2ADV and 2ADVF are audio video door answering
systems complete with a fixed camera door station (JB-DA, JB-DV and JB-DVF
respectively), an inside open voice video monitoring station (JB-2MD) and a
power supply (PS-1820UL). Two additional interior stations may be added, either
audio only (JA-2SD), audio/video (JB-2HD) or one of each. An additional video
door station (Any JB series) or audio only (JA-D) may also be added.
The inside monitoring stations are equipped with a 3.5” TFT flat
color monitor, and the video door station contains a CCD chip camera with white
illumination LEDs for low light applications. Communication at the door station
is hands free. Communication at the monitor/intercom is either VOX operated or
Push To Talk. Incoming calls from a door station sound a 2 or 4 stroke
chime and activates the inside monitor station(s). Voice from the calling door
is automatically activated upon call-in.
An inside monitor station answers a call-in from a door station
by momentarily pressing the TALK button to activate the VOX mode or pressing and
holding the TALK button while speaking. The entry area(s) can be monitored
(audio and video) by pressing the “monitor” button on any room station, staying
on for approximately 1 minute. Pressing the “monitor” button repeatedly cycles
through the door stations. The door release button can be used to activate an
electric door strike. To selectively release video doors, add the RY-3DL
adaptor.
Monitor Features:
• Open Voice Monitor/Intercom
• Max 2 Doors and 3 interior stations
• 3-1/2” LCD TFT Screen
• VOX or PTT communication
• All Call to other units
• Door release contact
• Multi-color call-in LED
• Receive volume control
• Chime tone volume control
• Instant-on when door calls
• Monitor the door station |
Camera Features:
• Color CCD Camera
• Flush mount
• Backlit directory
• Vandal resistant
• Stainless steel faceplate
• Metal call button
• Built in white illumination LEDs
• Lexan protected camera lens |
FEATURES & FUNCTIONS:
• Open voice communication
• VOX or PTT operation at inside station
• Hands-free communication at door station
• Set contains door station, monitor and power supply
• Multi-color door call-in LED
• Video and audio turn on when door calls in
• Two additional monitor or audio only stations can be added
JBS-2AD, JBS-2ADV, JBS-2ADVF
• Simple 2-wire hook up -- Can replace existing doorbell
• 4 or 6 wires between inside monitors
• CCD camera with white LEDs for low light applications
• Built-in video output
• All Call between inside stations
• Selectively release door locations (adaptor required) |
Click to view monitor installation manual in PDF format
Click to view camera installation manual in PDF format
