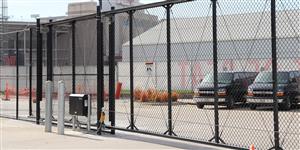

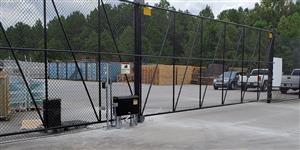

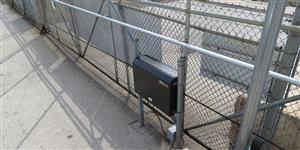

HySecurity SlideSmart HD25 is a pad or post- mount vehicular slide gate opener with Smart DC controller that delivers a reliable electromechanical slide gate operator for commercial, and industrial applications.
- Gate Materials: Wood, Steel, Aluminum, Vinyl, Chain Link, and others.
- Weight and length: HP: Up to 50' in length and 2500 lbs. Duty Cycle: Continuous
- Mounting: Pad or Post mount
- Input Voltage: 115 or 208-2w30V, 60/5o Hz.
- Power: 12DC and 24VDC 1A each
- Power Wire Specification: 120VAC should only be run by a professional, please consult for wire specification.
- Operating Temperature: -13F to 158F
- Warranty: 5 years manufacturer Commercial
Gate Crafters offers more expert assistance than anyone.
If you need help deciding if this gate opener has the abilities that are right for your gate we have live application specialists available 9am - 9 pm EST 7 days a week or try our exclusive gate opener recommendation tool 24 hours/day.
HySecurity manufactures only reliable and powerful gate operators and provides an extra margin of power to be certain the gate works in adverse conditions. Some manufactures overstate the length and weight capacity of their operators, but HySecurity rates conservatively. Note that our pull force ratings are substantial and that the extra margin of power is part of the HySecurity reputation for reliability. HySecurity SlideSmart HD25 has a strong low flex, corrosion resistant steel chassis combined with an attractive key-locked, fade resistant, steel cover. Components on the Smart DC Controller are protected by opto-isolators which shield them from power surge and lighting strikes.
The Smart DC controller provides variable speeds control to a powerful, continuous duty 24V DC motor which drives the gearbox. Two 12V, 8 amp batteries are included and will provide a full functional gate operator when AC power is unavailable. This is a sealed AGM type battery which lasts much longer than wet cell batteries and needs no maintenance over its lifespan. The actual number of gate cycles available from the battery depends upon gate resistance to travel, cycle, length, battery size, temperature, accessory power draw and frequency of gate cycles during power outage. The charger circuit regulates to allow high charger output when the battery is partially discharged, this charger will automatically reduce the output to near zero as the batteries become fully charged. Although batteries are protected from over discharge by a low voltage sensing circuit. This unit features a smart DC controller with over 55 menu items to allow installer configuration of gate functions and two user relays, which can be configured for over 30 different functions. The electronics, motor and gearbox are rated to operate in temperatures that range from -13 F to 158 F.
The SlideSmart HD25 heavy duty slide gate opener operates gates up to 50 feet length or 2,500 lbs., and features the soft start and soft stop. The independent adjustment for open and close gate speed it's easy to use on the smart dc controller allowing the gate to independently vary the open and close setting. The Intelligent Entrapment sensor feature, detects any impediment to the gate travel through the system, stopping gate movement per UL 325 safety standards. The intelligent system monitors gate power then adapts the IES to trip at an adjustable threshold above normal power. The USB communication port provides accessibility to download system configurations using the Smart Touch Analyze and Retrieve tool software. The start software can be downloaded free by visiting www.hysecurity.com . An emergency stop button is accessible from the outside of the operator. The black emergency stop button is located on the right face of the chassis.
Gate Crafters has the resources you need.
How do you use your gate opener system once you get it? Gate Crafters is the only retailer to give a real answer to this question. We have develop videos for installing many of our gate openers and products and write DIY focused manuals for most gate openers and have individual instructions for each accessory to be installed with each gate opener.
|
 For over a decade, Gate Crafters has been the leading online retailer of gate openers and accessories. With our extensive technical and installation expertise, we proudly serve the DIY market. We believe that every customer deserves the chance to take pride in their projects, whether they are installing or troubleshooting their gate openers. Everyone should have access to high-quality products without the need of a professional.
At Gate Crafters, we empower you to install with confidence by offering access to our trained technical staff seven days a week from 9 AM to 9 PM EST. By installing your gate opener system yourself, you can save thousands of dollars over its lifespan while gaining valuable knowledge about your installation and how the system operates. This understanding will not only make troubleshooting easier, but also enable you to perform routine maintenance with confidence in the future. |
Gate Crafters is the DIY factor.
Gate Crafters further adds to most of our gate openers for easier DIY installation. We have developed exclusive components (example: easy adjustable mounting brackets), customized instructions, and offer a full spectrum of accessories to truly cover all aspects of the installation of your gate opener. In addition we have the largest staff of factory trained technicians in the US.
- Order specific customized accessory wiring instructions
- 360 degree accessories - we can take you through exit, entry, safety, power, and all other minute details to create a fully rounded kit.
- Free 24/7/365 Installation Support
- Free 7 day/week Technical Support
- Largest Number of Certified Techs in America
- Free assistance to find the right gate opener for your gate
- Free systems design assistance to match the right accessories to fit your needs.
- Extremely competitive pricing
- Free shipping on all accessories purchased with a gate opener
- We stock replacement parts
- Many brands of many types of accessories, enough to handle just about any operational situation you can imagine
Gate Crafters has actual experience.
We have a testing area, we have factory and internal training courses, we build gates and have our own gates that are automated, we attended all industry trade shows in multiple countries and are a member of the AFA, and we pay visits to our chosen manufacturers' factories. All these factors are what have lead to us having so many exclusive additions. When you see and actually use as many products as we have you tend to have many ideas for minor changes that have major impacts. We acted on these ideas and have utilized them to help thousands of customers automate their gates.
The following tools and supplies are suggested in the manufacturer manual for optimal installation. They are not provided by Gate Crafters, however, most tools are available at local hardware stores for purchase or rental. Please refer to the Installation Manual for Tools Needed. Depending on the type of gate, power supply and contributing environmental factors additional tools or supplies may be needed. Please review the product manual associated with this gate opener model for further details. |
|
Manual: SlideSmart HD Programming & Operations Manual
QB ID: SlideSmart HD25
