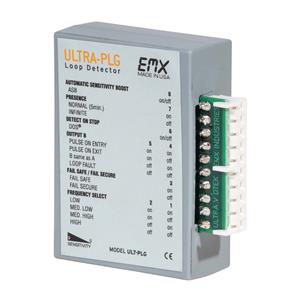

The ULTRA-PLG vehicle loop detector combines small size with full-featured functionality in a plug-in module.
This detector features DETECT-ON-STOP™ or (DOS) technology, which allows detection only when a vehicle has come to a complete stop on the loop. This exclusive feature is unique to EMX and is a major advantage if you want to ignore cross traffic in tight spaces.
The ULT-PLG provides a solid-state output indicating vehicle presence. The second output can be used for presence, loop fault or pulse on entry/pulse on exit. Our latest vehicle detector provides options for automatic sensitivity boost (ASB), delay, fail-safe/fail-secure and infinite and normal (5 min.) presence.
This detector is easy to install and operate. Sensitivity selection is simplified by the ULTRAMETER™. Ten sensitivity settings allow for finer adjustment of the detection level. The four frequency selections help to prevent crosstalk in multi-loop applications.
The ULT-PLG is compatible with a wide variety of gate operators. Please see the spec sheet for a detailed list.
Gate Crafters offers more expert assistance than anyone.
If you need help deciding if this gate opener has the abilities that are right for your gate we have live application specialists available 9am - 9 pm EST 7 days a week or try our exclusive gate opener recommendation tool 24 hours/day.
Compatible with Many Standard Gate Openers
Compatible Accessories:
- PR-LOOP Preformed Loop
- TSTL Test Loop
- EMX Receiver/Controller Systems
When you choose our ULTRA-PLG for your vehicle, you can count on the following advantages:

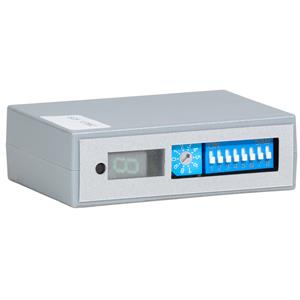

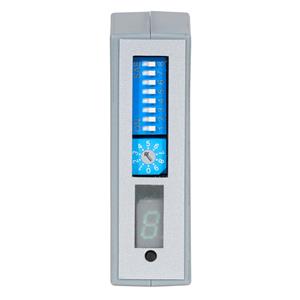

- ULTRAMETER™ displays optimum sensitivity setting/crosstalk interference
- Frequency count/reset switch
- 10 sensitivity settings
- 4 operating frequencies
- Solid-state output
- Second output, pulse entry/exit, normal/infinite presence
- CE compliant
- DETECT-ON-STOP™ allows detection only when a vehicle has come to a complete stop on the loop
Gate Crafters has the resources you need.
How do you use your gate opener system once you get it? Gate Crafters is the only retailer to give a real answer to this question. We have develop videos for installing many of our gate openers and products and write DIY focused manuals for most gate openers and have individual instructions for each accessory to be installed with each gate opener.
| Sensitivity |
10 levels, 0-9 |
| UltraMETER™ display |
Indicates optimum sensitivity level, 0-9 diagnostic aid |
| Loop frequency |
4 settings (low, med-low, med-hi, high) |
| Loop inductance |
20 - 2000µH (Q factor > 5) |
| Grounded loop |
Isolation transformer allows operation with poor quality loops |
| Automatic tuning |
Detector tunes to loop on power-up and following frequency count function |
| Environmental tracking |
Automatic compensation |
| Surge protection |
Loop circuitry protected by surge suppressors |
| Detect output |
Solid-state (open collector) |
| Output B |
Solid-state (open collector) |
| Output B inverted |
Solid-state (open collector) |
| Power / loop fault indicator |
Green LED |
| Detect / frequency count indicator |
Red LED |
| Detect-on-Stop |
Requires vehicle to stop for a minimum of 1 second (1-2s typical) |
| ASB (Automatic Sensitivity Boost) |
Increases sensitivity after initial detection to prevent dropout due to high-bed vehicles |
| Power |
12VDC - 24VDC |
| Operating current |
15 mA |
| Operating temperature |
-40°C - 82°C (-40°F - 180°F) 0 - 95% relative humidity |
| Dimensions (L x W x H) |
3.0” x 0.9” x 2.75” |
| Weight |
0.15 lbs. (68 g) |

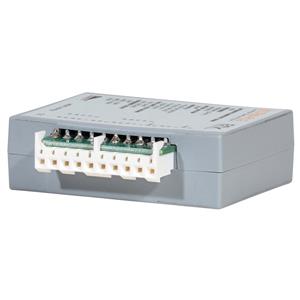

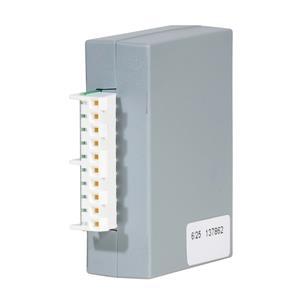

| Connector |
10-pin female |
- (1) EMX ULT-PLUG Plug In Loop Detector
- User Installation and Configuration Guide
