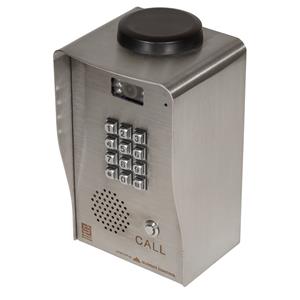

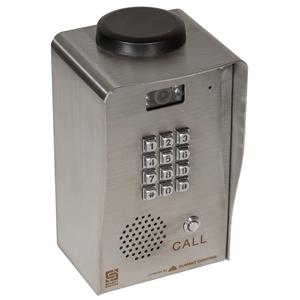

The Ascent R1 Residential Cellular Telephone Entry System with Keypad (Model 16-R1) is an all-in-one access control solution designed specifically for residential applications. Powered by the cloud-based Summit Control platform, the Ascent R1 allows homeowners to control gates or doors remotely using an app, text message, voice call, keypad, call button, or GuestPass QR code.
With full cellular connectivity and automatic network selection, the Ascent R1 ensures reliable communication without the need for Wi-Fi or landlines. Built-in video calling with infrared capability provides clear visual identification of visitors, even in low-light conditions, while flexible calling options ensure you never miss a visitor.
Gate Crafters offers more expert assistance than anyone.
If you need help deciding if this gate opener has the abilities that are right for your gate we have live application specialists available 9am - 9 pm EST 7 days a week or try our exclusive gate opener recommendation tool 24 hours/day.
- Residential gate or door access control
- Controls one (1) gate or door
- Cellular-based operation (no Wi-Fi required)
- Cloud-managed via Summit Control™
- Full cellular connectivity with auto network selection

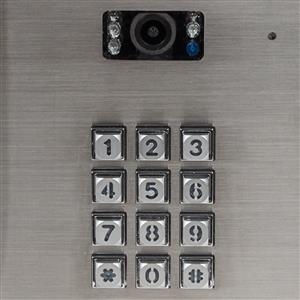

- Video calling with IR for low light
- GuestPass time/use-limited QR-code quick access
- Control 1 gate/door
- Up to 20 app, text, and voice users*
- Up to 50 keypad codes stored locally on unit*
- Rollover calling - up to 3 phone numbers
|
- Broadcast calling - up to 10 phone numbers
- Push and/or email event and status notifications
- Cloud-based access control management
- LED downlight and LED-backlit buttons
- Weekly Event Schedule
- Audit trail with detailed reports

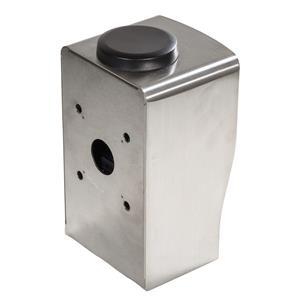

- Stainless-steel faceplate and enclosure
|
*Maximum number is dependent on plan.
Gate Crafters has the resources you need.
How do you use your gate opener system once you get it? Gate Crafters is the only retailer to give a real answer to this question. We have develop videos for installing many of our gate openers and products and write DIY focused manuals for most gate openers and have individual instructions for each accessory to be installed with each gate opener.
Physical

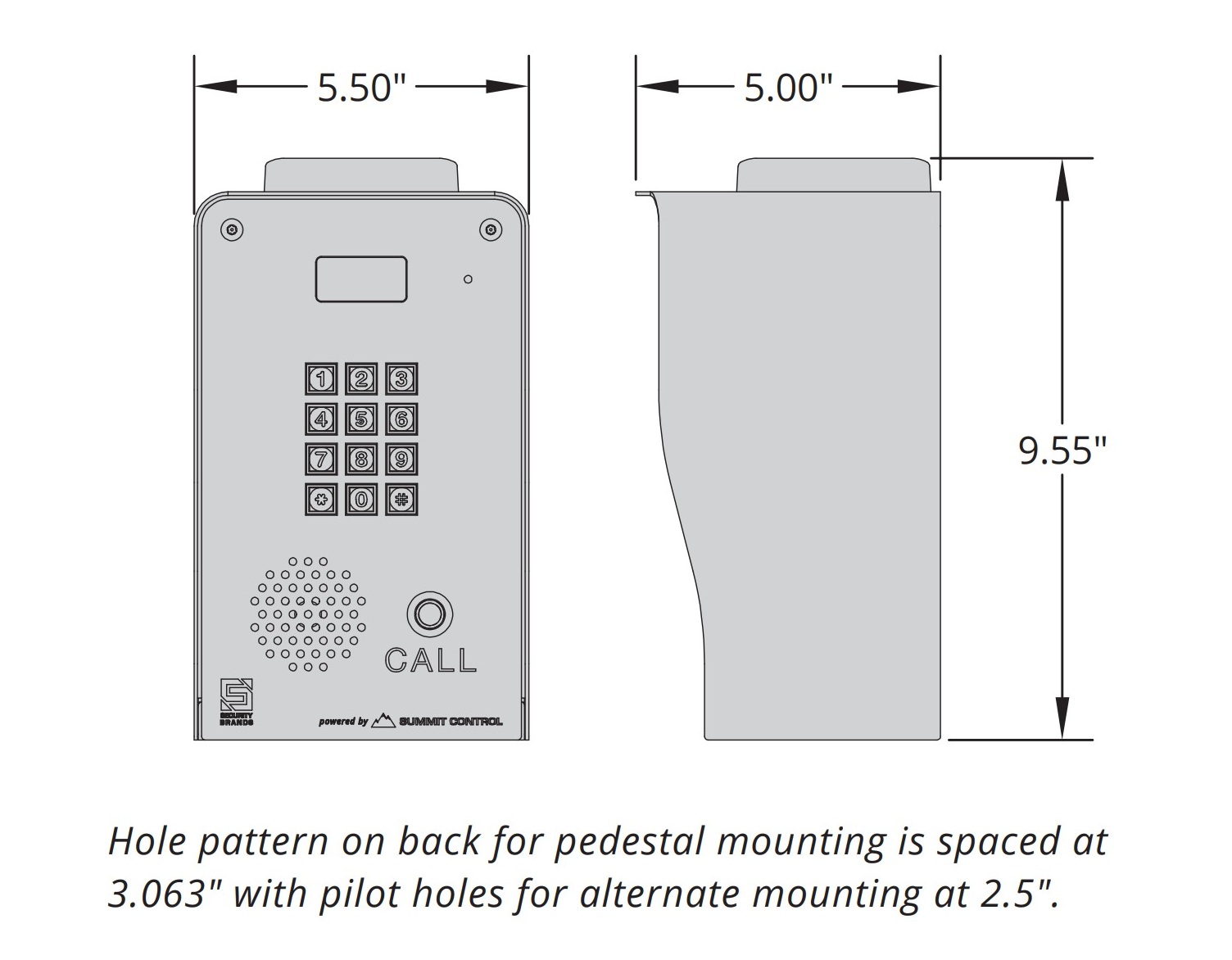

- Dimensions: 9.55″ H × 5.50″ W × 5.00″ D
- Weight: 8 lbs.
Electrical
- Input Voltage: 12 - 24 VDC
- Current Draw: (with relay latched and LED components on)
- less than 330 mA at 12 VDC
- less than 160 mA at 24 VDC
Relay
- Contact Rating: 10 A at 120 VAC / 24 VDC
- Max Switching Voltage: 250 VAC / 30 VDC
- Max Switching Current: 15 A
- Max Switching Power: 240 W / 2,770 VA
Communication
Environmental
- Operating Temperature: -15 to 158 °F

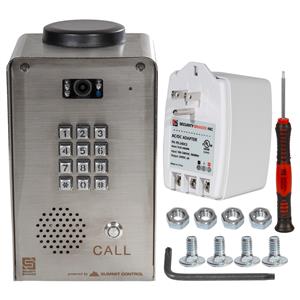

- (1) Ascent Unit
- (1) 24-V AC/DC Adapter
- (4) Carriage Bolts
- (4) Hex Nuts
- (1) L Key
- (1) Screwdriver
For over a decade, Gate Crafters has been the premier online retailer of gate openers and accessories. With our extensive technical and installation expertise, we are authorized to serve the DIY market. We believe customers should have the opportunity to take pride in their projects, whether installing or troubleshooting a gate opener. Everyone deserves the option to enjoy high-quality products without the need to hire help.
At Gate Crafters, we empower you to install confidently by providing access to our trained technical staff seven days a week from 9 AM to 9 PM EST. By choosing to DIY your gate opener system, you can save thousands of dollars over its lifetime while gaining valuable knowledge about your installation and how the system operates. This understanding will make it easier to troubleshoot any issues and perform routine maintenance in the future.
Gate Crafters is the DIY factor.
Gate Crafters further adds to most of our gate openers for easier DIY installation. We have developed exclusive components (example: easy adjustable mounting brackets), customized instructions, and offer a full spectrum of accessories to truly cover all aspects of the installation of your gate opener. In addition we have the largest staff of factory trained technicians in the US.
- Order specific customized accessory wiring instructions
- 360 degree accessories - we can take you through exit, entry, safety, power, and all other minute details to create a fully rounded kit.
- Free 24/7/365 Installation Support
- Free 7 day/week Technical Support
- Largest Number of Certified Techs in America
- Free assistance to find the right gate opener for your gate
- Free systems design assistance to match the right accessories to fit your needs.
- Extremely competitive pricing
- Free shipping on all accessories purchased with a gate opener
- We stock replacement parts
- Many brands of many types of accessories, enough to handle just about any operational situation you can imagine
Gate Crafters has actual experience.
We have a testing area, we have factory and internal training courses, we build gates and have our own gates that are automated, we attended all industry trade shows in multiple countries and are a member of the AFA, and we pay visits to our chosen manufacturers' factories. All these factors are what have lead to us having so many exclusive additions. When you see and actually use as many products as we have you tend to have many ideas for minor changes that have major impacts. We acted on these ideas and have utilized them to help thousands of customers automate their gates.
The following tools and supplies are suggested in the manufacturer manual for optimal installation. They are not provided by Gate Crafters, however, most tools are available at local hardware stores for purchase or rental.
Please refer to the Installation Manual for Tools Needed.
Depending on the type of gate, power supply and contributing environmental factors additional tools or supplies may be needed. Please review the product manual associated with this gate opener model for further details.
