|Driveway Gates - The Estate Swing 16 Foot Long, Dual Driveway Gate
Length: 15 feet, 11 inches long
Gate Length + Hinge: 16 feet, 6 inches long
Gate Length + Hinge + Estate Swing 3" Mounting posts: 16 feet, 11.5 inches long
Height: 5 feet on sides, 6 feet at the apex
From the innovative brand Estate Swing known for its dependable gate automation comes the new eye catching and affordable Estate Swing Driveway Gate Collection. With an elegant sweeping arc and clean lines this dual 16 foot long gate is functional both in its appearance and in regard to automation. The design incorporates classic artistry, sturdy wrought aluminum alloy and a smooth powder coated finish. Unlike other driveway gates where automation is a secondary thought, Estate Swing recognized the need for operator placement from the start; therefore customer automation preferences were considered beforehand which ultimately prevents awkward looking and structurally unsound flat bars from being added later on. See “gate construction” below for more details on how other gate companies fail to create much needed automation support.
By using 6061-T6 wrought aluminum ¾ inch pickets and a full 2 inch square frame members we create a tough and durable gate that is stronger lighter and is almost twice as resistant to denting or bending than steel, which in turn, is safer for people and objects as well as extends the operator life since it puts less strain on the gears. As gate automation professionals, Estate Swing sought to anticipate the needs of consumers and incorporate those details when designing this dynamic driveway gate. It’s easy to drill, easy to lift, easy to automate which keeps both the DIY installation effort and cost down significantly.
One other unique factor about our Estate Swing Driveway Gate Collection is that they are made in the U.S. by skilled welders which follow the American Welding Society's Standards. Keeping the manufacturing local allows for efficient quality review and substantially quicker shipping time compared to overseas outsourcing.
With all of these features and benefits another company would charge a much higher price, but because GateCrafters.com has a special relationship with Estate Swing, we've decided to pass the savings on to you! From our loyal GateCrafters customers we've heard the request for affordable security. Never before has such a well designed driveway gate been so accessible and so affordably priced.
Words from Senior Application Engineer, Anthony Gaeto
Top of Page
"The Estate Swing pre-manufactured are readily in stock are available to be shipped to your home or business. These gate come in various lengths from 12 and 14 foot single leaf gates and 14 and 16 foot dual leaf gate. Each gate comes with our standard finial, but you have the option to order custom ones from our website.
The Estate Swing gates are built for automation and strength, as well as durability. The gate is made from strong 6061-T6 aluminum and then are powder coated to ensure the durability of the gate. The frame of the gate is made from 2 inch square 6061-T6 aluminum bars. This gives you a sturdy location to attach your gate opener and hinges. The frame and pickets are welded at multiple locations by skilled American welders.
To round out your gate kit, I recommend you order Gate Crafters' heavy duty gate hinge kit. These hinges are built to last and feature a grease fitting which keeps the ball bearing moving freely. This kit was designed for the DIYer in mind. The installation of this gate is very easy and will add value to your home or business.
Gate Crafters started the DIY gate business on the internet. We strive to please our customers and offer products that install with ease. Gate Crafters has experts standing by to help you with any question you may have 7 days a week from 9 am to 9 pm, eastern time. We can put together a complete kit that you will be able to install yourself. So please give us a call, send an email, or use our live chat on our website. We look forward to hearing from you."

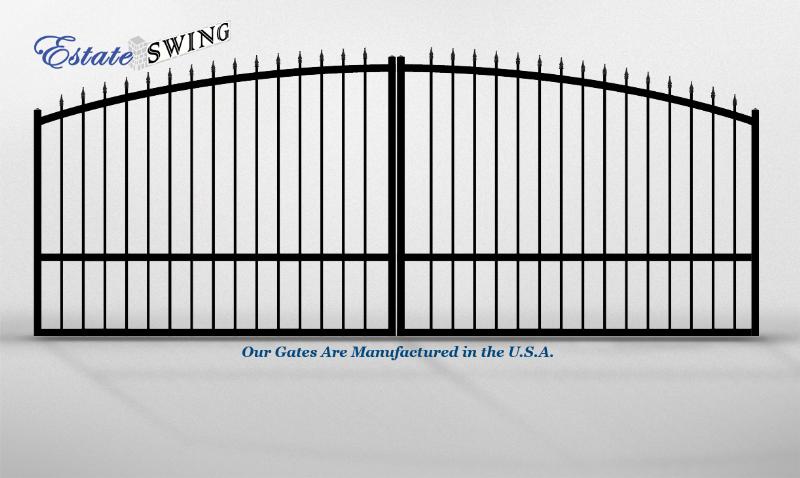

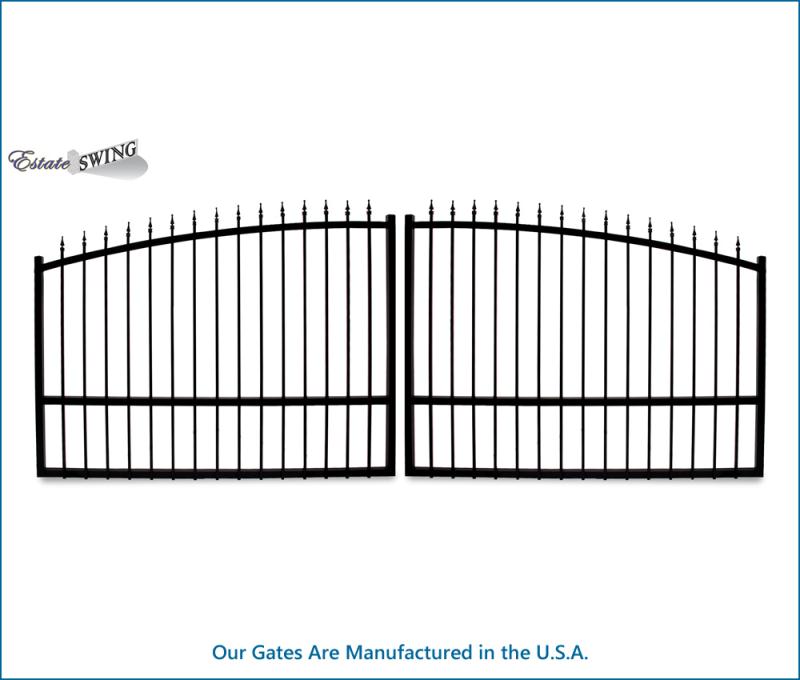

Each Estate Swing Driveway Gate comes standard with finials and end caps, depicted in the image above. However, you do have the option to upgrade your finials (and replace the standard) by selecting from the related items offered below. Additionally, price is for gate only: bolt on hinge plates or posts sold separately
This Estate Swing 16 Foot Single Gate is available in either Black or White. Please select your option from the drop down above.
As mentioned above the construction of the Estate Swing Driveway Gate compared to other brands is no subtle difference because automation concerns were implemented during its
design process. Only as an afterthought will other gate manufactures add on narrow, structurally unsound flat bars to attach the operator - which negatively affects the gates overall
structural integrity. Either the bars become loose which puts uneven pressure on the opener as it retracts (scraping the paint and striping away at the core metal). Or if it does stay in place,
that plate is bolted to only 2 or 3 pickets leaving those few narrow pickets to uphold the weight, movement and pressure of the opener. Meanwhile, Estate Swing Driveway Gates are
supported by the full frame and entire collection of thicker than average pickets. It is clear that many customers seek to automate their gate, so Estate Swing Driveway Gates were
designed to achieve this purpose not as an afterthought but as a main feature of its design.
Estate Swing Driveway Gates are made with 6061-T6 wrought aluminum alloy and then powder coated for a protective seal and uniform color. The 6061-T6 wrought aluminum is a high-grade alloy with a yield strength of about 40,000 pounds per square inch*. For comparison, this is much stronger than “mild steel” which has a yield strength at about 20,000 to
30,000 pounds per square inch. Furthermore aluminum will not rust. 6061-T6 wrought aluminum is used for the purpose of durability and resiliency, providing a quality dent resistance and
lasting beauty. Compare Aluminum vs. Steel Gates Here
Powder coating is the process by which powdered pigment is applied to and cured on a surface. It consists of a mechanical and/or chemical treatment of the surface to remove
impurities and contaminants followed by the application of the pigments. Then the material is cured at high temperatures which makes the pigments flow together and react chemically to
form the coating. Powder coating is preferred for certain surfaces because it creates or contains close to no volatile organic compounds and does not sag or run with thicker coats. The
overspray can also be recycled so there is little waste, making it less expensive and creating less hazardous waste. Our Estate Swing Driveway Gates are powder coated to provide the
most uniform appearance possible.
|Estate Swing Gates are powder coated in the USA by a DuPont certified powder coater. DuPont coatings deliver quality results through transfer efficiency and premium
coverage. As a trusted industry leader, DuPont's powder coating formulations offer environmentally responsible coatings that reduce waste while providing a superior end finish.
Estate Swing Gates' certified powder coater also went under rigorous testing and analysis to achieve DuPont Platinum Certification, one of two prestigious companies in America
to hold this honor. Every Estate Swing Gate holds this durable, long-lasting DuPont powder coated finish resulting in a exceptional product line of quality driveway gates.
As mentioned above, the Estate Swing Driveway Gates were designed with the purpose of automation in mind. Most of the single swing Estate Swing Brand gate openers are compatible with this driveway gate. Furthermore, all of the Estate Swing Driveway Gates come with a limited lifetime warranty. This warranty is provided by the manufacturer for structural integrity against defects in materials and workmanship.
With our detailed easy to follow instruction manuals and 24/7/365 tech support Gate Crafters has revolutionized the "Do It Yourself" process. Projects that once seemed difficult have
been simplified with innovative products, superior tech support, customer service, and easy to follow instructions. No other retail store or website has this level of commitment to support
DIY customers. We at Gate Crafters realize that your expectations as a customer go further then the actual sale which is why Gate Crafters stands alone in demonstrating that customers
are our #1 priority.
* 6061-T6 Aluminum PSI Yield Strength verified at:
WindsorSteel and Eagle Steel
*Shipping gates has always been a challenge given their size and weight. GateCrafters has developed a unique shipping accessory and process to ensure your gate arrives in perfect condition. After your gate arrives, the shipping accessory will need to be returned. Easy to follow instructions and a prepaid shipping label will be attached to assist you with its return. A temporary $200.00 authorization hold will be placed on your form of payment by Web Direct Brands, Inc. and will be removed immediately once the equipment is returned.
QB ID: E-SG 16D
