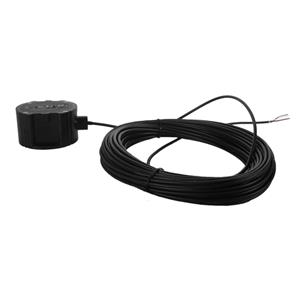

Estate Swing Digital Free Exit Device - 100'


Please Select an Option:

Price:$175.61
Quantity:



Bookmark and Share

Chat with a live representative or Send us an email

1-800-537-4283







   Product Details

  • Accessory Uses
  • Accessory Features
  • Product Media
  • Compatibilities
  • Options

  •    Accessory Uses Top of Page

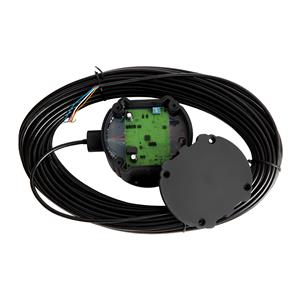

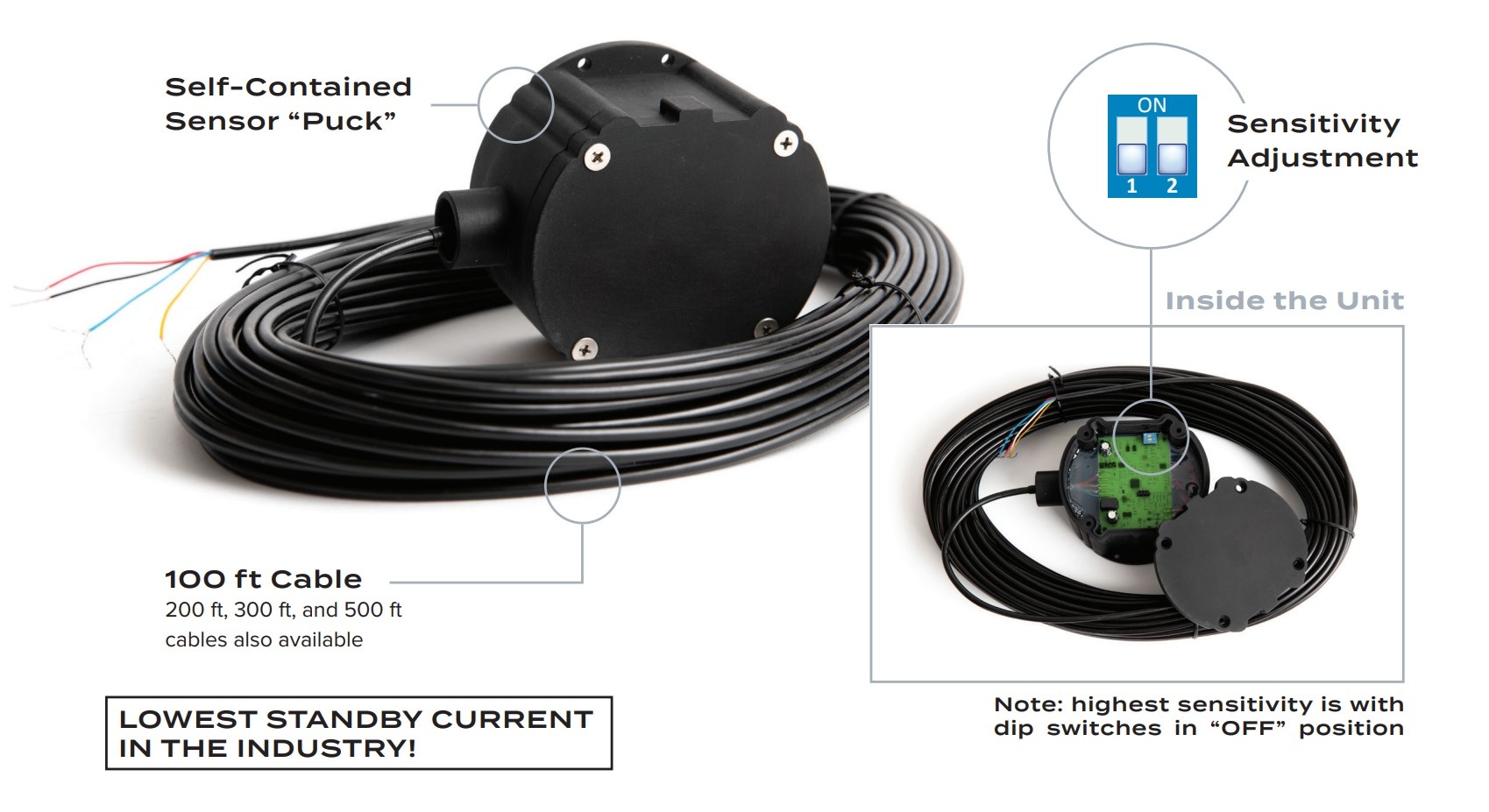

    The Estate Swing digital exit device allows for a reliable hands-free exit. This unit will outperform the oscillating device (exit device from the past). This device has a new proven digital circuit that creates a precise and stable exit detection zone and substantially increased lighting protection. This new and improved digital sensor can resist temperature far greater than before and ranges from -25 to +140 F. This exit device has the lowest standby current in the industry making this device great for solar-powered installations. This exit device is buried beside the driveway and is recommended to use a non-metallic electrical conduit (gray) to extend the warranty to a full 5 years and protect your cable from animals. If an above-ground installation is desired make sure to secure “puck” to a building or post making the device immovable to avoid false alarms that would trigger the gate to open. This device uses dip switches to adjust sensitivity to sense small, medium and large vehicles. This new and improved sensor is a direct replacement for the CP-3 estate swing sensor. Just like the CP-3, the new estate swing exit device: can cover up to a 12-foot wide driveway and works with all types of openers (solar or direct power).


    GateCrafters.com is the DIY factor. GateCrafters.com further adds to most of our gate openers for easier DIY installation. We have developed exclusive components (example: easy adjustable mounting brackets), customized instructions, and offer a full spectrum of accessories to truly cover all aspects of the installation of your gate opener. In addition, we have the largest staff of factory trained technicians in the US.

       Accessory Features Top of Page

  • Lower price than CP-3*
  • More quantity discounts (20+, 50+, 100+)
  • Self-contained system
  • Conduit-ready housing
  • Sensitivity adjustment
  • Lowest standby current (30-70μA)
  • Better heat resistance
  • More lightning protection
  • New proven digital circuit
  • Weather-resistant cable
  • One model, less confusion

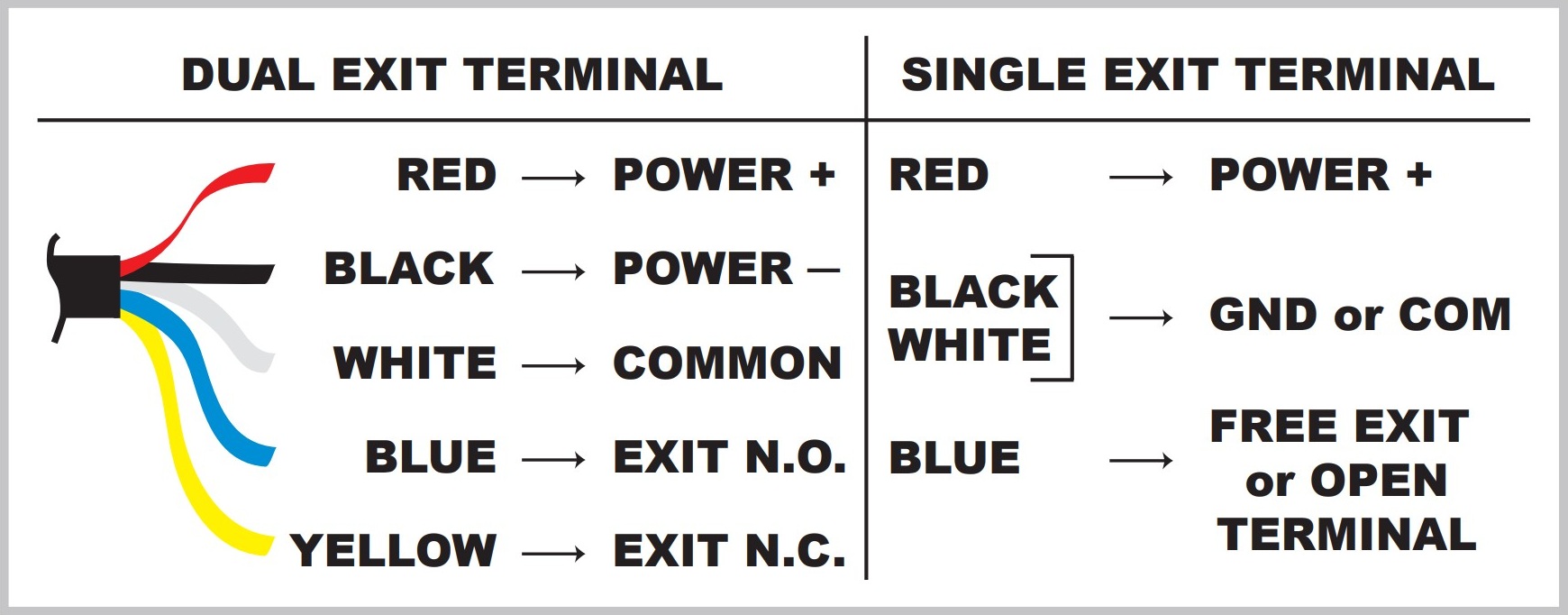

  • Industry-standard wire colors
  • Universal voltage AC & DC
  • Works with all operators
  • 5 year warranty
  • Technical Specifications

  • Power required: 8-24 VAC or 8-30 VDC
  • Stand-By Current: 30-70 Microamps(&muA)
  • Alarm Current: 40-60 Milliamps(mA)
  • Relay Contacts: SPDT, floating, N.O. or N.C. (Form C)
  • Relay Contact Rating: 1 amp/24 VDC (1 mA at 5 VDC min. load)
  • Relay Time: 2-3 seconds
  • Enclosure Rating: IP67
  • Strength Rating: 9.53 ton-force 8646 kgf
  • Temperature Range:
    • -25℉ - +140℉.
    • -32℃ - 60℃.
  • Dimensions: 4.5 in. dia. X 3.5 in. high
  • Weight: 5lbs. with 100ft. cable

  • GateCrafters.com has the resources you need. How do you use your gate opener system once you get it? GateCrafters.com is the only retailer to give a real answer to this question. We have developed videos for installing many of our gate openers and products and write DIY focused manuals for most gate openers and have individual instructions for each accessory to be installed with each gate opener.

       Compatibilities Top of Page

    The CP-4 automatic gate opener is compatible with all gate openers; solar and powered (AC/DC).


    GateCrafters.com offers more expert assistance than anyone. We have live application specialists available 9 am - 9 pm EST 7 days a week.

       Accessory Options Top of Page

    Options vary depending on how long you want the cable.

  • 100ft. cable
  • 200ft. cable
  • 300ft. cable
  • 500ft. cable

  • GateCrafters.com has actual experience. We have a testing area, we have factory and internal training courses, we build gates and have our own automated gates, we attended all industry trade shows in multiple countries and are a member of the AFA, and we pay visits to our chosen manufacturers' factories. All these factors are what has led to us having so many exclusive additions. When you see and actually use as many products as we have you tend to have many ideas for minor changes that have major impacts. We acted on these ideas and have utilized them to help thousands of customers automate their gates.

       Product Media Top of Page


    Manual: Installation Manual
    QB ID: CP-4
